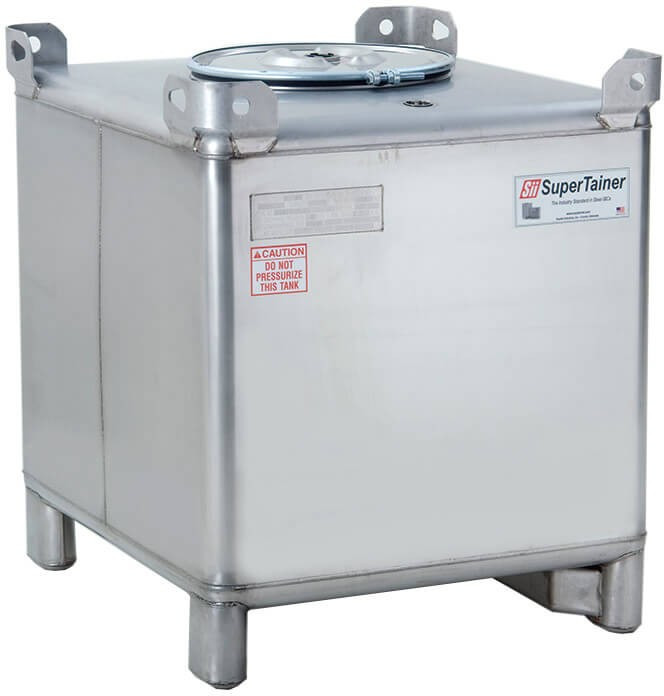

A 300 gallon 304 stainless Supertainer that rides a truck bed or a trailer without standing tall
Snyder Industries part number 6984200B51306 is a 300 gallon Supertainer IBC tote in 304 stainless steel, 42 inches long, 48 inches wide and 41.25 inches tall, 424 lb empty. It arrives plumbed with a 2 inch access port on top as the inlet, a 2 inch 316 stainless steel ball valve as the outlet and a 22 inch vented manway, and the silver finish is the bare metal. It is the lowest of the mid-size steel Supertainers, and that makes it the one that goes on a pickup bed, a flatbed or a service trailer and comes back, as well as the one that fits under a low mezzanine. 300 gallons of water weighs 2,502 lb, and with the tare the loaded tote is close to a ton and a half, which is the first number to check against a vehicle's payload rating.
Putting a stainless tote on a vehicle? Call 866-418-1777 with the truck or trailer and the liquid, or get freight to your ZIP and add it to your cart above.
On a vehicle, in a yard, under a mezzanine
A tote that travels wants to be low and square, and this one is both: 42 by 48 inches on the plan, the pallet module a liftgate and a forklift were built around, and 41.25 inches tall so it sits below the cab roof and most headache racks. Strap it through the frame, never over the manway, and check the strapping after the first few miles because liquid moves. Full, it is a ton and a half of load that the vehicle's suspension and brakes, not the tote, are the limit on. On the ground it needs a flat, continuous surface under the whole frame, and it goes under a mezzanine or through a roller door that a taller tote will not clear. The manway sits at bench height, so filling, sampling and cleaning happen standing on the ground beside the vehicle, which is a real advantage when the tote is worked out of a truck bed.
At this volume Snyder also makes polyethylene totes, the 275 gallon stackable tote and the 330 gallon Ultratainer tote, both taller and lighter than this one. Choose steel when the liquid is one polyethylene will not hold, when the vessel is washed between products with hot water or caustic, when a specification calls for stainless contact surfaces, or when the tote lives a hard life on vehicles and forklifts where a plastic body would be the part that gives. The body is 304 and the valve is 316; check the liquid against both grades. Our chemical compatibility guide covers the polyethylene tanks and is where the conversation starts; call us with the liquid for the steel. Where the tote holds a regulated liquid, the secondary containment guide covers what the storage area has to provide. Where it feeds a metering pump at the destination, the pump skid design guide covers the skid. The guide to when to buy a tote, a drum, a cube or a tank does the turnover arithmetic, and the tank sizing calculator and tank sizing guide settle the volume per trip.
Openings and fittings
- Outlet. A 2 inch 316 stainless ball valve, factory fitted low on the vessel. On a vehicle it must be closed, capped and checked before every move; an open 2 inch valve empties a tote fast. Support any hose on its own bracket.
- Inlet. A 2 inch access port on top for a closed fill. Confirm the thread form with us before buying adapters or camlocks.
- Manway. 22 inches, vented. Keep it closed and the vent clear in transit; open it for filling, sampling and cleaning. A low tote has little air space above a full load, so leave headroom when you fill.
- Drawing. Snyder's drawing for 6984200B51306 is linked under Technical Drawing on this page and shows the frame, the fork pockets and the port positions for strap planning.
The twin and the carbon steel version
Snyder lists the 300 gallon stainless Supertainer under a second part number with the same published size and weight, 6984000B51303; order the number your specification names and ask us what the suffix changes before it ships. The same shell in carbon steel is the 300 gallon carbon steel Supertainer.
Shipping and receiving
The tote ships LTL at freight class 125, 42 by 48 by 41 inches on the truck and 424 lb, from the nearest of Snyder's plants at Lincoln, Nebraska, Marked Tree, Arkansas, or Merced, California. Have a forklift or a liftgate ready. At the dock, check 6984200B51306 against the bill of lading, look over the corners and the valve for transit damage, confirm the valve is closed and the access port capped, and fill it with water the first time before product goes in. Ready to order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
Freight and documents
Ships from: Marked Tree, AR; Merced, CA; Lincoln, NE. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 6984200B51306.
