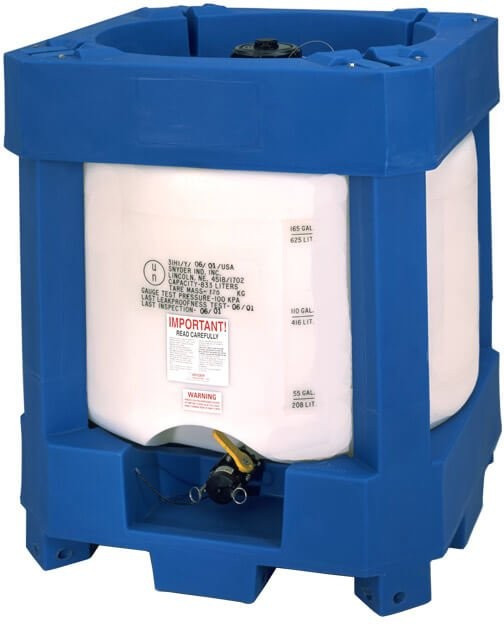

Snyder Industries 330 Gallon Ultratainer IBC Tote Tank

The Ultratainer and the lower service temperature on its sheet

Read the temperature line before anything else on this page, because it is the field that decides whether this is your tote. Every other 330 gallon tote in this group publishes a higher figure on that line; this one publishes 105 F / 41 C. That is the number to check your duty against, and it rules the Ultratainer in or out before footprint, weight or fittings get a look in. Where it rules in, the duty is steady ambient storage: product delivered cool, held in a building or a shaded position, drawn off at room temperature, never steam cleaned, never heat traced, never parked against a boiler wall or in full afternoon sun on a black slab. That covers a great deal of ordinary work. A warehouse holding cleaning chemistry, a food or beverage plant with a temperature-controlled room, a laboratory or pilot plant, a water utility with an indoor dosing room, a distributor storing product between deliveries. What it does not cover is anything warm, and if your product arrives hot, is heated in the tank, or lives outdoors in a hot climate, ask us for a tote whose sheet publishes a higher limit instead of assuming this one will do. Everything else about it is straightforward. It is 46 inches square and 70 inches tall, which is the tall end of this family, so it takes less floor per gallon than the low listings and needs the headroom to prove it. Set it on a flat, continuous, level bearing surface carrying the full 46 inch square, not on two pallets and not on blocking. At 335 pounds empty it is forks or a pallet jack; loaded it is 2,752 pounds of water and 5,229 pounds at the rating, which is a rack beam question before it is a floor question. No stacking load, no cage, no pallet and no fork pocket is published on this sheet, so nothing here permits stacking or lifting by anything but a support under the base. Confirm the tier in the tank sizing calculator, take the freeboard from the tank sizing guide, and read the container versus tank guide if the honest comparison is against a drum row or a fixed tank.

The Ultratainer beside the Excalibur, the red 330 and two steel totes

Four polyethylene tanks here hold 330 gallons and the Ultratainer is the tall one. At 70 inches it stands nearly eighteen inches above the Excalibur SII-6510101B96002 at 52.125 inches, six and a half above the red SII-6610056B97204 at 63.5, and nine above SII-6610056B97206 at 61. In exchange it takes a 46 inch square where the Excalibur wants 47 inches on a side, so it is the listing to choose when floor is short and the ceiling is not. It is also the second heaviest polyethylene tote on this table at 335 pounds, against 194 for the Excalibur, 267 for the red and 268.4 for the one with the named fittings. The other three all publish a higher maximum operating temperature than this sheet does, which is the comparison that matters most and the reason to look at SII-6610056B97206 in particular if your product ever runs warm; that listing also names its ball valve and bulkhead fitting in full. The steel rows bracket the volume band and nothing more: 6984000B51303 is a 300 gallon 304 stainless supertainer at 41.25 inches tall and 424 pounds, 6984300B32224 is a 350 gallon carbon steel supertainer at 47.25 inches and 469 pounds, both on a 42 by 48 inch plan. They are steel vessels and this page makes no polyethylene, resin or specific gravity statement about them. Three of the six part numbers on this table, including this one, are spelled by the sheet without the prefix the others carry, and we spell each of them the way it appears.

Pad already poured? Send its size to 866-418-1777 or in a quote request and we will match a row to it, freight to your ZIP included.

A 2 inch ball valve, a 2 inch bung and a small top opening

• The discharge: a 2 inch ball valve at the base of a 70 inch body, so there is real head behind it when the tote is full and very little when it is not. A quarter-turn valve is the right fitting for a tank an operator works daily, and full bore into a short falling line is how it gets used properly.
• The pump: mount it below the valve so it primes and stays primed as the level drops through seventy inches of shell. Keep the suction short, straight and falling, and put the strainer where a person can reach it without disturbing the tote.
• Isolation and support: shutoff hard against the valve, then a flexible connector, then the rigid line. A meter, filter or reel goes on its own bracket; nothing hangs on the fitting boss.
• The inlet: a 2 inch bung for closed filling. On a tank this tall, filling through the bung rather than the top is also the arrangement that keeps people off the tote.
• Access: the sheet gives a 5 inch lid size and a 6 inch threaded vented lid as the manway; both are printed as published. Either way it is a hose-and-wand opening rather than an arm, so the wash-out is done through fittings and a lance, not by reaching inside. Keep the vent path clear whenever the pump is drawing.
• Limits: 105 F / 41 C is the maximum operating temperature on this sheet, lower than its siblings, and the specific gravity rating is 1.9. No warranty term is published, and nothing beyond those two figures is claimed.

Tell us the liquid and its delivered temperature when you order, because on this sheet the temperature line is as much a specification as the fitting sizes are. Where the product is regulated, the containment under it is its own decision: the RCRA secondary containment guide covers the leak detection options and the inspection cadence, and the Captor containment comparison puts the contained polyethylene route beside the steel one.

Steady storage where the product never gets hot

The jobs that suit this tote are the unhurried ones. Bulk cleaning and sanitising chemistry in a warehouse or a plant room, an additive or ingredient held in a temperature-controlled area, a laboratory or pilot plant supply, treatment chemical in an indoor dosing room, distribution stock waiting to be broken down into smaller containers, and any indoor position where a tall tank saves a floor position that is worth more than the headroom it uses. The common thread is that the product goes in at ambient and comes out at ambient, and nothing in the routine heats the tank. Where that is true, the tall shape is a straightforward win on floor area per gallon. Whether the 330 gallon tier is right at all is a question of turnover, hazard class and the floor the whole arrangement occupies once access and containment are counted, which is what the drum versus tote versus bulk tank break-even analysis works through in detail.

Service list by chemical

One line per liquid the maker rates for this resin, with the concentration it is rated to and the fitting and gasket to order. Take your own concentration and temperature to the linked page or the chemical compatibility database before ordering.

• Acetic Acid (60%) - PP/PVC fittings, EPDM gaskets
• Aluminum Sulfate (50%) - PVC fittings, EPDM gaskets
• Calcium Chloride (40%) - PVC fittings, EPDM gaskets
• DEF (32.5%) - 316SS fittings, EPDM gaskets
• Ethylene Glycol (100%) - PVC fittings, EPDM gaskets
• Ferric Chloride (50%) - PVC fittings, EPDM gaskets
• Ferric Sulfate (60%) - PVC fittings, EPDM gaskets
• Ferrous Sulfate (20%) - PVC fittings, EPDM gaskets
• Hydrochloric Acid (37%) - PVC fittings, Viton gaskets
• Hydrofluoric Acid (48%) - PP/PVC fittings, Viton gaskets
• Hydrofluosilicic Acid (26%) - PP/PVC fittings, Viton gaskets
• Hydrogen Peroxide (50%) - PVC fittings, Viton gaskets
• Magnesium Chloride (30%) - PVC fittings, EPDM gaskets
• Peracetic Acid (30%) - 316SS fittings, Aflas gaskets
• Phosphoric Acid (85%) - PVC fittings, Viton gaskets
• Polyaluminum Chloride - PVC fittings, EPDM gaskets
• Potassium Carbonate (50%) - PVC fittings, EPDM gaskets
• Potassium Hydroxide (saturated) - PVC fittings, EPDM gaskets
• Propylene Glycol - PP/316SS fittings, EPDM gaskets
• Sodium Bisulfate - PVC/PP fittings, EPDM gaskets
• Sodium Bisulfite - PVC/PP fittings, EPDM gaskets
• Sodium Carbonate (30%) - PVC fittings, EPDM gaskets
• Sodium Hypochlorite (
• Sodium Thiosulfate (40%) - PVC fittings, EPDM gaskets
• Sulfuric Acid (98%) - CPVC fittings, Viton gaskets
• Urea Solution (50%) - PP/PVC fittings, EPDM gaskets
• Zinc Orthophosphate - PP/316SS fittings, EPDM gaskets

The only sheet here with a numeric freight class

This tote is moulded at Lincoln, Nebraska, with Nebraska listed as the state it ships from. Its freight class field reads a numeric 250 while the ship mode reads LTL, and the NMFC code is 156600-03; every other tote in this batch carries LTL in the class field with no number, so this is the one page here that can state a numeric class. It shipments at 46 inches long by 46 inches wide by 70 inches high, and the ship weight line reads 310 pounds against a 335 pound empty weight, which we print as the sheet gives it without choosing between them. Price the lane to your ZIP with the freight cost estimator; the listed price is before freight. Unload from under the base on forks or a pallet jack, never by the lid and never by the valve, and mind the 70 inch height going through a door. Put it in its working position, fill with clean water on the level, hold the 2,752 pound load and read the valve, the bung and the top seal. Before the first real delivery, check where the tote actually stands against the 105 F / 41 C line on a hot afternoon with a thermometer on the shell, because that is the one measurement this particular tank asks you to take. Tape a copy of the spec sheet inside the control panel door; the next person to touch the tank will not have the box it came in.
