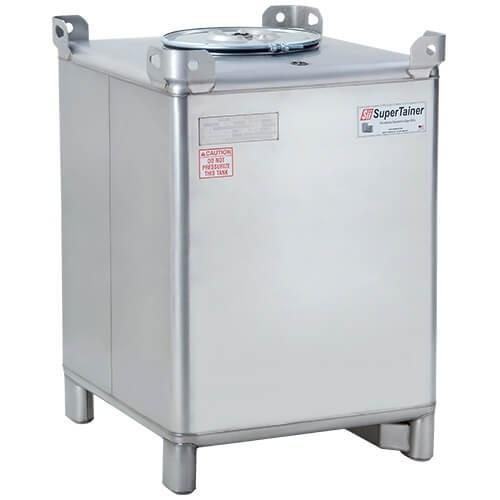

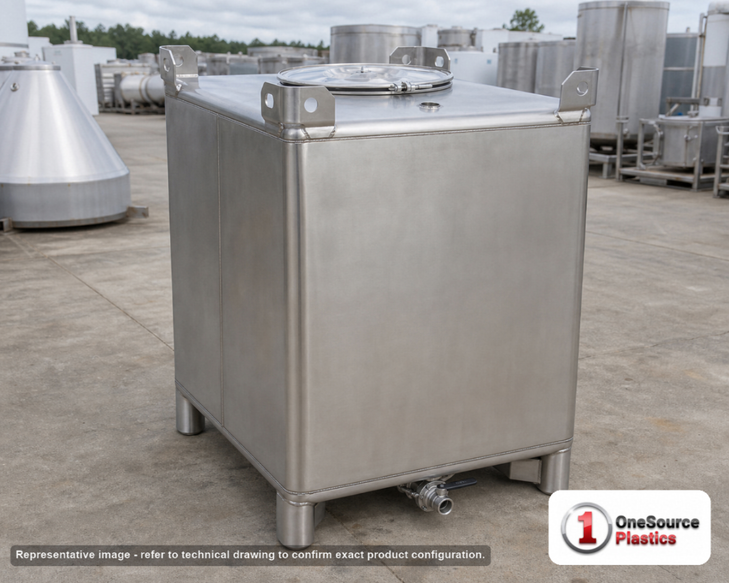

Snyder Industries 446 Gallon 304 Stainless Steel Supertainer IBC Tote Tank

The 446 between the 350 and the 550

This tote only makes sense read against the two sizes on either side of it, both of which are on its own sheet. The 350 gallon 6984300B32224 stands 47.25 inches on the same 42 by 48 inch plan at 469 pounds. The 550 gallon 6984500B32213 stands 71.25 inches on that same plan at 612 pounds. This one sits between them at 59.25 inches and 542 pounds. Three vessels, one footprint, three heights roughly a foot apart, and that is the whole geometry of the family. The 446 is the one people arrive at by elimination rather than by aspiration, and there are two honest reasons to land here. The first is clear height. If something above the tote's position, a duct, a sprinkler branch, a shutter track or a mezzanine soffit, rules out the 71.25 inch vessel, the 446 puts almost a hundred more gallons on the same floor than the 350 does while staying a foot shorter than the 550. The second is reach. At 59.25 inches the 22 inch manway is high but not out of reach, which is a different daily proposition from a vessel you need a platform to open. What it is not is a compromise on floor efficiency, because the plan never changes: whichever of the three you buy, you commit the same 42 by 48 inches. Work the volume against your actual delivery quantity and turnover in the tank sizing calculator rather than picking the middle size by instinct, take the headspace discipline from the tank sizing guide, and where the real question is whether a tote beats drums or a fixed tank for your volumes, the container against tank buying guide answers it on turnover and handling. Whatever it stands on takes 3,720 pounds of water across a 42 by 48 inch rectangle, flat, level and continuous.

Three 446s, a 350 and a 550

The top three rows are the same 446 gallons on the same 42 by 48 by 59.25 inch shell at the same 542 pounds, under three part numbers in two series, with nothing else published about any of them. That is exactly how we print it. If a drawing, a spares list or an existing fleet names one of those numbers, order that number and ask us to verify the record against the part before it ships; if none of your paperwork names any, the choice between them is administrative. The bottom two rows are the ones that inform a design. Step down to 350 gallons and you lose twelve inches of height and seventy-three pounds of empty weight while giving up close to a hundred gallons. Step up to 550 and you gain twelve inches and seventy pounds for a similar gain in volume. Every one of those steps costs you nothing in floor area, which is the single most useful thing to understand about this family: the plan is fixed at 42 by 48 inches and the only currency you are trading is vertical space against gallons. So do the survey before the sizing. Measure the clear height above the intended position, the door the vessel comes through, and the height your forklift can place a loaded vessel at, then buy the tallest tote all three of those allow. The 446 is very often that answer.

Torn between two rows? Call 866-418-1777 with the liquid and the ceiling height, or ask for a quote on both and compare the freight.

The vent above, the port beside it, the valve below

• The vent: the 22 inch manway is listed as vented, and the vent is what lets 446 gallons leave through a 2 inch valve without the vessel working against itself. Keep it clear, look at it whenever the manway is off, and never blank it to control an odour.
• The air space: the nameplate volume is not the level to fill to. Leave headspace for a warm afternoon and for a product that gasses, and mark the working fill so it is not judged by eye from the top.
• The opening: 22 inches at the top of a 59.25 inch vessel, which is high enough to want a step and low enough not to want a platform. It passes a wash head, a lance, a strainer and an arm with a light.
• The inlet: a 2 inch access port as listed, with the coupling arrangement confirmed against this part number rather than assumed from the family.
• The outlet: a 2 inch 316 stainless ball valve, quarter turn, in the same corrosion-resistant family as the shell. Support the hose and any reducer on their own bracket, with a flexible connection at the first joint if a pump is downstream.
• Limits: no maximum service temperature, no warranty, no pressure rating and no stacking load is published on this sheet, so none is claimed.

Where this vessel supplies a metering pump, the distance and geometry between the valve and the suction decides whether the skid runs cleanly; the pump skid design guide for tank-fed dosing covers the frame, the drip pan and the leak detection that belong under it.

Jobs sized between a 350 and a 550

Four hundred and forty-six gallons lands in operations whose batch or delivery does not fit the round numbers: food and beverage production moving an intermediate at a fixed recipe quantity, dairy and ingredient handling, brewing and distilling, cosmetics and personal care blending, ink, coating and adhesive manufacture, and pilot and scale-up work where the batch size was set by the process rather than by the packaging. It is also the size chosen when the tallest tote in the family will not clear something overhead, which is a more common reason than anyone admits on a datasheet. Whatever the duty, the vessel is bought to be washed and reused rather than disposed of, and that is what justifies 542 pounds of steel. Check the contents against our chemical compatibility index before you order, because the manway gasket and the valve seat are chosen from that answer.

542 pounds empty, class 125

Freight class on this sheet is 125, and no NMFC number and no plant is listed, so this page names no origin and no lane. Price the move to your ZIP with the freight cost estimator; the listed price is before freight. It ships on its own 42 by 48 inch plan at 59.25 inches tall, which clears most doors without a special check but is still worth measuring against a shutter or a low trailer roof. At 542 pounds it comes off with a forklift under the base, never by the 22 inch manway and never with a sling around the body; keep the forks clear of the 2 inch valve going in. Set it level on continuous support in its working position before anything is connected, then fill with clean water, hold the 3,720 pound load, and read the manway seal, the access port and the valve joint all the way round before you drain and dry it. Where the contents are a regulated waste, the secondary containment rule for hazardous waste tank systems names the leak detection options and the inspection cadence to build the routine around. Note the clear height the vessel needed on the day it went in, on the drawing and not in somebody's memory; that measurement is what stops the next person ordering the taller one. The first fill is the only cheap time to find a problem, so do it in daylight with someone watching the base.
