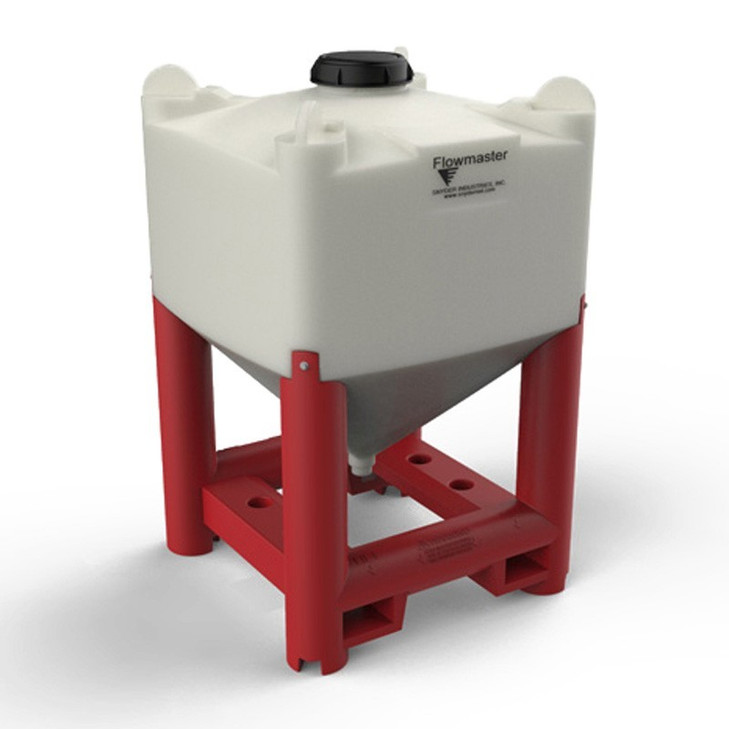

Snyder Industries 450 Gallon Plastic Flowmaster Viscous Hopper Bin Tank

Seven feet of bin, and the floor it does not take

Seven feet governs both ends of this purchase. The bin travels upright as one pallet position exactly 84 inches tall and clears a standard dock door and very little else, so measure the lowest pipe, light fitting and door frame between the truck and the position before the freight is booked, not while the driver is waiting. Once it is in, the reason to have chosen it is the floor it does not take: 450 gallons on a 45 by 48 inch plan is a lot of product in about fifteen square feet, and in a plant where floor is scarce and the roof is high, going up is the cheaper way to buy capacity. The floor still owes the bin flatness: a continuous, level bearing surface under the whole plan, a slab, a structural deck or a purpose-built frame, with nothing shimmed and nothing bridging a joint. Full of water it puts over 3,750 lb on that plan; on a poured pad rather than a structural slab, our concrete pad sizing guide for above-ground polyethylene tanks is where the load gets sized. The height from the floor to the discharge decides what fits underneath and is usually the reason people buy a tall bin, so measure the drum, the pail, the mixer inlet or the weigh hopper first and tell us the clearance you need. Check the batch size with the tank sizing calculator, take the headspace from the tank sizing guide, and read our note on freeboard sizing and the real volume you can use before you decide 450 gallons is the right number. If the bin sits in a water reuse train, our guide to industrial water reuse tank topology covers where a sloped-bottom vessel belongs in it.

Openings and fittings

1. Outlet. 2 inch, at the low point of the slope. Your valve or pump suction threads here; support the valve on its own so the bin carries product, not hardware.
2. Lid. A 12 inch lid on top, wide enough to fill from a hose or a pump and to get a brush inside to clean.
3. Liquid and temperature. Polyethylene suits water, most fertilizers and many common chemicals up to 1.9 times the weight of water and 120 F. Check anything aggressive with us before you order.
4. Drawing. Snyder's drawing for this bin is linked under Technical Drawing on this page; it shows the slope, the discharge position and the lid.

The dry bins and the feed station beside it

The same envelope for dry material is the 60 cubic foot 45 degree Flowmaster dry hopper bin, and the taller, steeper dry bin is the 68 cubic foot 60 degree Flowmaster dry hopper bin; they are not interchangeable with this liquid bin, so tell us what the product is. For metered chemical dosing at a plant, look at the 440 gallon HDLPE chemical feed station tank in white.

Shipping and receiving

The bin ships LTL from Snyder's Lincoln, Nebraska plant, 45 by 48 by 84 inches on the pallet at 407 lb, one upright pallet position; it is a forklift delivery at the dock and a forklift job again on the way to its position, and the mast height matters as much as the capacity. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number 6370630N95402 against the bill of lading, look at the slope and the outlet for transit damage, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
