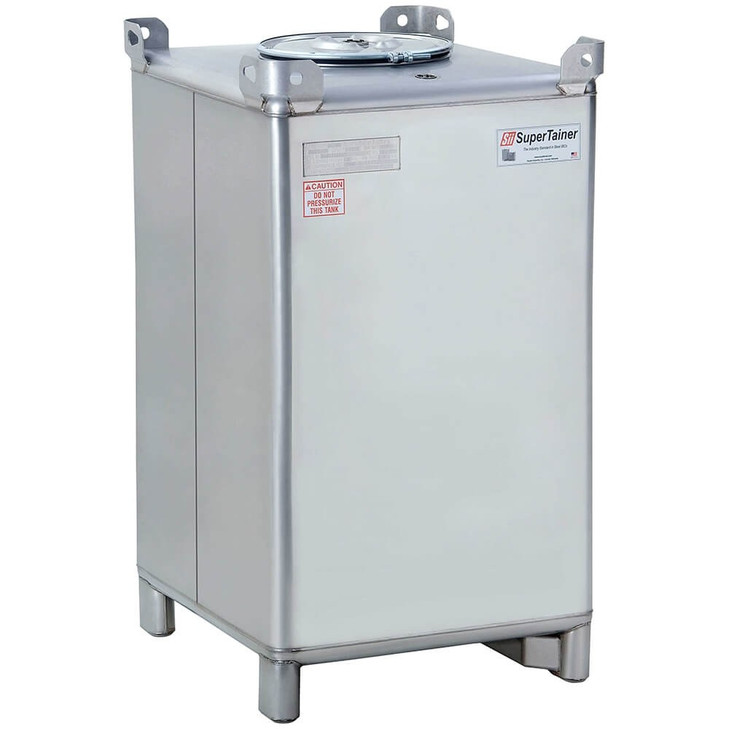

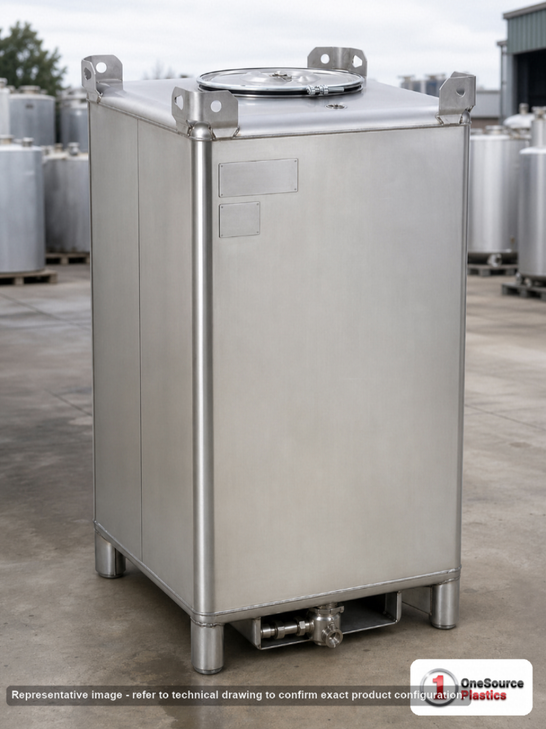

Snyder Industries 550 Gallon 304 Stainless Steel Supertainer IBC Tote Tank

What the tallest tote in the family buys you

Read this one against its siblings and the trade is obvious. Every steel Supertainer on this sheet occupies the same 42 by 48 inch rectangle of floor. This one holds 550 gallons on that rectangle; the 446 gallon 6984400B32210 holds a hundred and four less on exactly the same plan. The entire difference is twelve inches of height, 71.25 against 59.25, and thirty-eight pounds of empty weight, 650 against 612 on the lightest 550 listing. That is the best deal in the family if you have the ceiling for it, because floor space in a process room, a bund or a cold store is the expensive thing and vertical space usually is not. There are two places where that stops being true and both are worth checking before the order. The first is the manway. At 71.25 inches the top of this tote is above head height for most people, so filling, sampling, inspecting and cleaning all happen from a step, a platform or a mezzanine, and that access has to be designed rather than improvised. The second is what is above it. Measure to the lowest obstruction over the tote's final position, not to the ceiling: a sprinkler head, a duct, a cable tray or a roller door track will decide this for you, and so will the clearance a forklift needs to set a 650 pound vessel down without tipping it. Confirm that 550 gallons is genuinely your delivery quantity and your turnover in the tank sizing calculator, and take the freeboard a warming or gassing product needs from the tank sizing guide. If the honest answer is that you turn over less than this between deliveries, the container against tank buying guide is the better place to start than the size chart.

Four 550s and the 446 below them

Four of these five are 550 gallons on the identical 42 by 48 by 71.25 inch shell, and the only published difference anywhere among them is the listed empty weight: three are given at 650 pounds and 6984500B32213 is given at 612. The sheet gives both figures and offers no explanation, so we print what it says and explain nothing. Thirty-eight pounds is not a number that changes how a tote is handled, but it is a number, and where a specification, an existing fleet or a drawing names one of these parts, order that part number rather than assuming the listings are interchangeable. The row that actually informs a decision is the last one. 6984400B32210 holds 446 gallons on exactly this footprint at 59.25 inches and 542 pounds. Put the two side by side and the arithmetic is stark: the same floor, a foot less height, a hundred and eight fewer pounds to lift empty, and a hundred and four fewer gallons in the vessel. If your room has the headroom, this 550 is the more efficient use of the floor you are already paying for. If the constraint is the roller door, the mezzanine, the truck box or the height a forklift can safely place a loaded vessel, the 446 is not a compromise, it is the right tank. Decide on the obstruction above the spot, not on the gallon figure.

Ready to choose a row? Add the 550 gallon tank to your cart above with freight quoted to your ZIP, or 866-418-1777 will confirm it against the site first.

Venting a tall column through a 22 inch manway

• The vent path first: the 22 inch manway is listed as vented, and on a 71.25 inch column that vent is doing more work than on any other tote in this family. Draw 550 gallons out through a 2 inch valve and the same volume of air has to come back in behind it; a restricted or blanked vent turns that into a load the vessel was never meant to carry. Inspect it whenever the manway is opened.
• Headspace: 550 gallons at the nameplate is not 550 gallons to the rim, and on the tallest shell in the family the space above the liquid is what absorbs a warm afternoon or a product that gasses. Size the fill to leave it.
• The manway as an access point: 22 inches is wide enough for a fill lance, a strainer basket, a light and an arm, which is what makes this vessel cleanable rather than just emptiable. At this height, plan how somebody safely reaches it before the tote is set down.
• The inlet: a 2 inch access port, as listed. Adaptors, caps and camlocks are separate items and we will confirm what this part number carries.
• The outlet: a 2 inch 316 stainless ball valve at the bottom of a 71.25 inch vessel. That is a tall static head above the valve when it is full, so support the hose, the reducer and anything else that hangs off it on its own frame.
• Limits: no service temperature, no warranty term, no pressure rating and no stacking load is published on this sheet, so none is claimed here.

Where the 2 inch valve feeds a dosing pump rather than a hose, the suction geometry, the drip tray and the leak detection under it belong in the design from the start; the pump skid design guide for tank-fed dosing takes them in order.

Duties that want 550 gallons on one footprint

The biggest tote in a family is bought by operations that have outgrown drums and do not want a fixed tank: food and beverage production moving a bulk intermediate between a receiving bay and a process line, dairy and ingredient handling, brewing and distilling, cosmetics and personal care batching, specialty chemical and coating manufacture, and contract packers who run different products through the same room week to week. The common thread is that 550 gallons is roughly one delivery or one batch, and the vessel is expected to be emptied, cleaned and refilled rather than left standing. It is also the size that shows up on inter-site movements, where the same tote goes out full and comes back to be washed. Buy this one when the ceiling allows it and the turnover justifies it, and buy the size below when it does not. Look the contents up in our chemical compatibility tables before the order, since the seal at the 22 inch manway and the seat in the valve are chosen on the product and not on the 550 gallons.

650 pounds empty, class 125, 42 inches by 48

The freight class on this sheet is 125, with no NMFC number and no plant listed, so this page names no shipping point. Price the lane to your ZIP with the freight cost estimator; the listed price is before freight. The unit ships on its own 42 by 48 inch plan standing 71.25 inches, which is the tallest in the family and the one most likely to need a check on trailer height and door height before it is booked. At 650 pounds empty it is a forklift job taken under the base; never sling it round the body and never lift it by the 22 inch manway. Set it on flat, continuous, level support in its final position before anything is connected, because a tote this tall is not a vessel you slide across a floor once it is plumbed. Fill it with clean water first and hold the full 4,587 pound load while you read the manway seal, the 2 inch access port and the valve joint, then walk the base again the next morning. Open the valve and time the drain with water in it; that figure is what every changeover afterwards is planned around. Where the vessel stands over a floor or drain that would be expensive to recover, the secondary containment rule for hazardous waste tank systems sets out the leak detection options and the inspection cadence that a regulated duty expects. Write the drain time and the part number on the tag before the first working fill; it is the cheapest record you will ever keep on this vessel. Leave room to walk all the way around it; the side of the tank nobody can see is the side that leaks.
