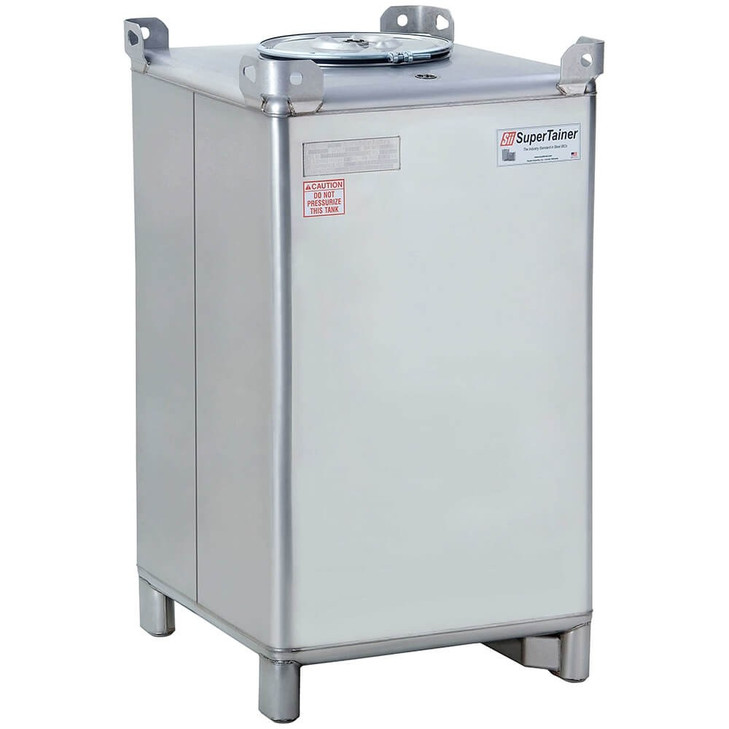

Snyder Industries 550 Gallon 304 Stainless Steel Supertainer IBC Tote Tank

The tote at the head of a dosing line

Most 550 gallon stainless totes we sell go to one of two places: the supply end of a chemical metering system, or a containment area that a regulator inspects. In both, the tote is one part of an arrangement, and the arrangement is what you are really buying. On a dosing line, the tote sits beside a skid that carries the pump, the calibration column and the drip pan; the pump skid design guide for tank-fed dosing sets out how the stainless frame, the leak detection and the procurement decisions fit together, and a tote with a 2 inch bottom valve suits that duty because the pump draws from a closed connection rather than a suction lance through the top. In a containment area, the questions are capacity of the bund, leak detection and inspection cadence; the secondary containment guide for hazardous waste tank systems covers the federal rule, and our containment comparison covers the double wall options where a bund is not the answer.

The tote's own numbers set the site. The footprint is 42 by 48 inches, the pallet module a forklift and a dock plate were designed around, so it goes wherever a forklift goes. The height is 71.25 inches, which puts the manway above head height; plan a step or a platform for filling, sampling and cleaning, and measure to the lowest obstruction over the final position. The body is 304 stainless and the valve is 316, two grades that handle liquids differently, so check the liquid against both; our chemical compatibility guide covers the polyethylene tanks and is a starting point, and we will help with the steel. If you are still weighing totes against drums or a fixed tank, the guide to when to buy a tote, a drum, a cube or a tank does that arithmetic, and the tank sizing calculator and tank sizing guide settle the volume and the freeboard.

Openings and fittings

1. Outlet. A 2 inch 316 stainless ball valve, factory fitted low on the vessel, the connection a metering pump suction line or a transfer hose runs from. Support the line on its own bracket so the valve carries liquid, not hardware.
2. Inlet. A 2 inch access port on top for a closed fill from a delivery hose or a pump discharge. Confirm the thread form with us before buying adapters.
3. Manway. 22 inches, vented. The vent is the breathing path as the valve draws 550 gallons down; keep it clear. The opening takes a spray wand, a light and an arm for inspection and cleaning.
4. Drawing. Snyder's drawing for 6984500B51320 is linked under Technical Drawing on this page and shows the frame, the fork pockets and where the ports sit.

Other part numbers on this shell

Snyder lists the 550 gallon stainless Supertainer under more than one part number with identical published dimensions and weight: 6984500B51310 and 6984500B51324. Order the number your specification names and ask us what the suffix changes before it ships. The same shell in carbon steel is the 550 gallon carbon steel Supertainer, and the step down on the same footprint is the 446 gallon carbon steel Supertainer, a foot shorter.

Shipping and receiving

The tote ships LTL at freight class 125 from the nearest of Snyder's plants at Lincoln, Nebraska, Marked Tree, Arkansas, or Merced, California, 42 by 48 by 71 inches on the truck and 650 lb, a forklift or liftgate unload. At the dock, check 6984500B51320 against the bill of lading, look over the corners and the valve for transit damage, confirm the valve is closed and the access port capped, and fill it with water the first time before product goes in. Ready to order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
