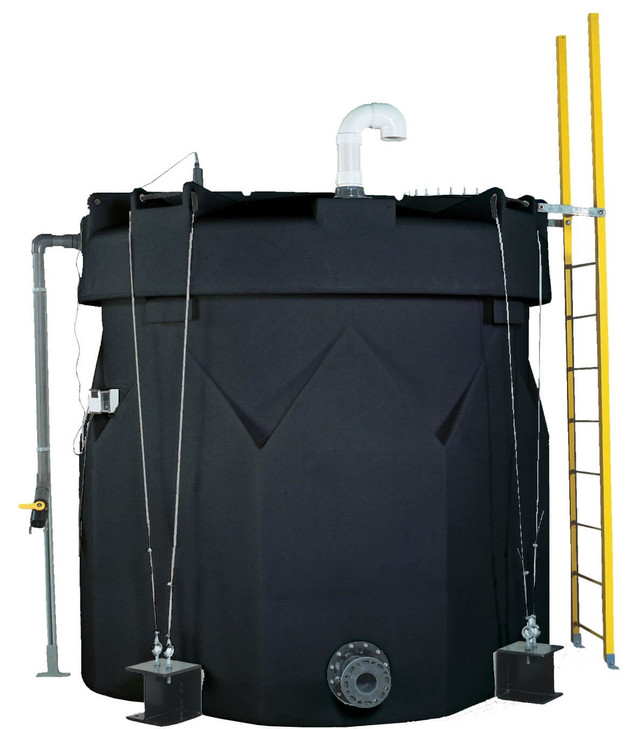

Snyder Industries 8700 Gallon ASTM Black Double Wall Tank

The containment area this one drops into

Think about the containment area first, because that is usually what this tank is replacing. A site that has run out of room inside an existing bund, or that has a hard standing draining to an interceptor it would rather not test, has two options: build more concrete, or buy a vessel that brings its containment with it. This one arrives as a single item on a 142 inch square and needs nothing built around it. What it does need is ground that is honest about the load. Under 197 inches of shell sit 72,558 pounds of plain water, or 108,837 pounds at this sheet's 1.5 rating, on a footprint under twelve feet across, and that is a designed slab rather than an existing yard surface. Flat, continuous and level across the whole square, cured before the delivery is booked, no rails and nothing packed under a corner. Where the position is inside an existing containment area, check two things that people miss: that the new pad does not block the fall of the floor to the sump, and that there is still a walkway all the way round the tank when it is in place, because the face you cannot reach is the face that never gets inspected. The 1.5 rating is what decides whether this is your row at all. It carries 108,837 pounds of maximum contents against 72,558 pounds of plain water, which is a working margin over water rather than a margin over something much denser. For process water, rinse water, dilute solutions and a great many everyday plant chemicals that is the correct listing, and the heavier rows on the same shell are wall you would be paying to freight and to lift for no operational return. For a genuinely dense product it is the wrong row. Tell us the product and the strength and we will say which; that comes off the rating line and the chemistry, never off the suffix, which the sheet does not explain. Size the volume properly before you order with the tank sizing calculator and the freeboard discipline in the tank sizing guide.

The 1.5 sheet beside the heavier pair

The first four rows are one 197 inch shell sold four ways, and the sheets split them into two listed weights: this tank and 1006400N46 at 5,000 pounds, the other pair at 5,800. This one is the lighter listing at the lower of the two ratings, and its material field is the bare word polyethylene with nothing further written against it. We print what the sheet prints and nothing more, because inventing a qualifier for a field the maker left plain would be worse than leaving the question open. Its service limit reads 120 F / 48 C, which belongs to this part number and is not borrowed from a shellmate. The lighter listing has a quiet practical benefit as well as a commercial one. Every tank in this family arrives in one piece and has to be lifted off a trailer and walked to a position that is rarely next to the gate, and less weight on the same envelope changes what equipment the yard needs on the day and how many people have to be there. It changes nothing about the pad, because the load on the slab is set by the water and not by the shell. The last two rows are the sizing conversation. 5670000N30 holds 6,500 gallons on a 120 inch square at 199 inches, which is the row for a site short of floor. 1006600N30 holds 10,000 gallons on this identical plan at 226 inches, so the extra capacity is bought entirely in height. Where the building will take it, that is usually the better purchase, because fewer truck drops for the same annual usage generally means a better bulk chemical cost per gallon.

Want the certified one or the plain one? Call 866-418-1777 and say what the inspector asks for; or request a quote on the row you need.

An opening named, a pipe size not

• The outlet field: it reads "1 Manway / Lid", with the inlet field empty. That names an opening and not a pipe size. No outlet dimension, thread, bulkhead, flange or valve is published on this sheet, so none is claimed on this page, and anyone reading a size into that field is guessing. Give us the duty and the line size and we will confirm what this part number actually carries.
• The opening: an 18 inch threaded vented manway is the only one published. It is the fill route, the inspection route and the cleaning route together, so plan everything you want on top around one hole.
• The vent: the manway is listed as vented, and the air has to move at the rate the liquid does. On a bulk fill into 8,700 gallons that is a lot of air. Keep the path clear, look at it whenever the manway is open, and never blank or restrict it.
• Access: the manway is at 197 inches, so a fixed ladder or platform, a fall protection arrangement and a ground level fill connection are part of the installation rather than an afterthought on delivery day.
• Structure: the sheet lists 8 lifting lugs, ladder lugs and one flange line. No other fitting is published on this part number and none is claimed here.
• The space between the walls: no monitoring port, gauge or alarm appears on the sheet. That arrangement is specified separately, and it is worth specifying, because the value of a second barrier is being able to show it is still empty.
• Limits: 120 F / 48 C, a specific gravity rating of 1.5, and a 3 Year Warranty.

Name the product when you order. A second wall does nothing at all for a fitting that was chosen generically, and the fitting is where a release starts.

Water, rinse and dilute solution at bulk scale

The 1.5 listing puts this tank where most large contained storage actually lives: process and rinse water at a manufacturing plant, clean-in-place and wash-down supply in food, beverage and dairy work, boiler and cooling tower make-up, dilute solution holding at a treatment works, crop input and liquid fertiliser storage at an agricultural retail site, and general chemical holding where the product is not much denser than water but the floor under it still matters. Four references are worth the time before you commit. The usable volume of a contained tank is not the nameplate figure once thermal expansion, chemistry and density are allowed for, which the Captor double wall freeboard sizing guide works through. The wall's hardest service is at the vapour line and an inspection from the liquid side misses it, per the wall thickness at the vapour saturated headspace guide. How the space between two walls is examined is set out in the cathodic disbondment testing guide for double wall interstitial spaces. And where the duty is private fire water rather than chemical storage, start with the fire water reservoir design guide for rural and remote sites; this page makes no claim about that use.

Five thousand pounds empty, class 250

One plant is listed, Lincoln, Nebraska, and one ship-from state, Nebraska. The ship mode is LTL at class 250, no NMFC number appears, and the load is given as 142 by 142 by 197 inches at 5,000 pounds. Price the lane to your ZIP with the freight cost estimator; the listed price is before freight. Nothing on this sheet describes a crane, a rigging arrangement, a permit or an escort, and this page invents none of them; the figures above are what there is to plan with, and the dimensions matter more than the weight. Eight hundred pounds lighter than the heavy pair on the same envelope makes the lift easier and changes nothing about the size of the thing coming off the trailer, so measure the route for a load close to twelve feet across and over sixteen feet tall before the truck is booked. Take it under the base and never by the manway. Set it on the finished, cured, level surface in its final position, check it plumb in two directions while it is empty, then fill it with clean water and hold the 72,558 pound load while you read the manway seal, the base line and the surface under it. Drain, dry, open the space between the walls, look into it in good light and write the date and the part number on the shell. Leave the walkway round the tank clear when the pipework goes in, and take the last look from across the bay rather than from beside the tank: a tall vessel a degree out of plumb is obvious from the doorway and invisible up close. Keep one spare gasket for the outlet fitting on the shelf; it is the part that fails on a holiday.
