2100 Gallon Vertical Liquid Storage Tank

The all-round shape in the 2000 gallon class

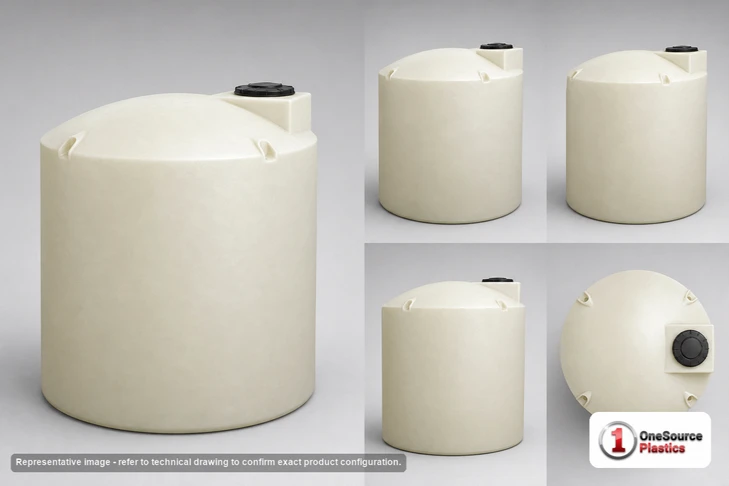

Eighty-seven inches across and 89 inches tall is close to a cube, which is why this is the shell most people end up with when nothing on the site forces a tall or a low one. It stands steadily on a pad, fills from the ground, keeps the manway in reach, and goes through a standard double door standing up. Because it is built at Fairfield, Griffin, Hanford, Lancaster, Owego, Shawnee, Sheldon, St. Bonifacius and Tooele, the freight is usually the shorter lane in the 2000 gallon class, and that is often the deciding number on a tank this size. The buyer's guide to this tank covers siting, plumbing and the pad. White lets you read the level through the wall; black, for water standing in sun, is linked below. For the capacity itself, run your draw and refill interval through the tank sizing calculator and take the reserve margin from the tank sizing guide.

Openings, fittings and the pad

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. Thread your valve or camlock in and support the first length of pipe on its own.
2. Manway. A 16 inch threaded vented manway on top, for the fill hose, a float switch and cleaning. Leave the vent open.
3. The pad. The whole 87 inch circle needs continuous, level contact: a slab, a steel plate or a compacted and screeded bed with a retained edge. No rails, no pallet, no shim. Strap the tank to a wall, a frame or ground anchors before the first fill.
4. The liquid. Up to 1.5 specific gravity and 120 F. Heavier liquids need the 1.9 rated heavy duty versions below.
5. Drawing. Norwesco's drawing is linked under Technical Drawing on this page with the outlet height and manway position.

Versions and sizes nearby

The swatches above the price switch between the versions. Same tank in black: the 2100 gallon black vertical tank. Heavy duty, rated to 1.9 specific gravity: the 2100 gallon black heavy duty tank. A lower, wider 2100 gallon black shell: the 2100 gallon black low-profile vertical tank. One step down: the 2000 gallon black vertical tank. One step up: the 2200 gallon vertical tank.

Shipping and receiving

The tank ships LTL, 87 by 87 by 89 inches on the trailer and 304 lb as shipped, from whichever of the nine Norwesco plants is nearest you. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote. At the tailgate, check the part number 40178 on the bill of lading, look over the shell for transit damage before the driver leaves, set it with the outlet toward the pipe run, and fill it with water the first time.

Questions before you order? Call 866-418-1777.
