A 4950 gallon 15 degree cone bottom tank for bulk liquid that has to drain clean

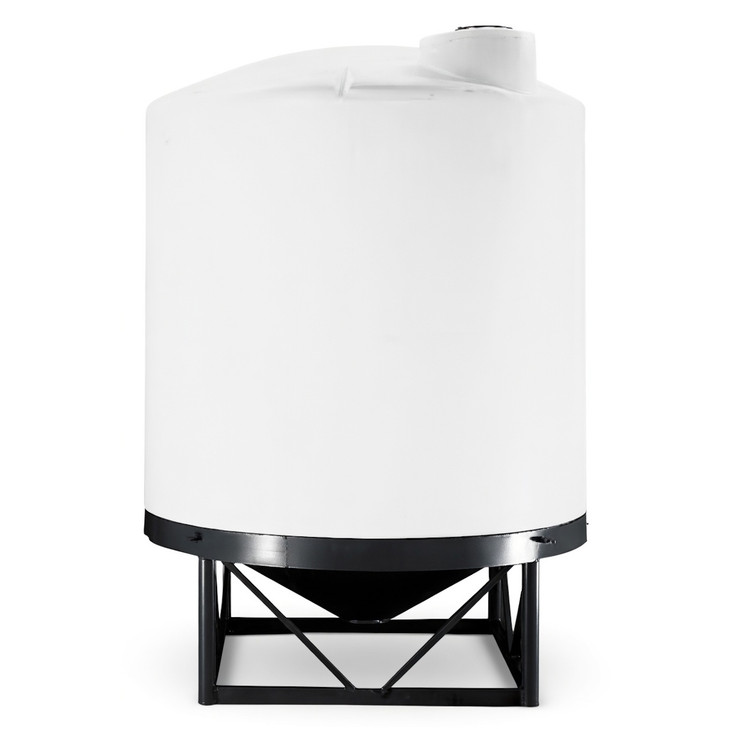

The Norwesco 4950 gallon 15 degree cone bottom tank, part number 45381, is a white polyethylene tank 102 inches in diameter and 159 inches tall, weighing 1331 lb empty. The shallow 15 degree cone puts the outlet at the lowest point of the tank, so the contents drain to the last gallon without a pump or a tilt, while keeping the tank shorter than a steeper cone of the same capacity. It comes with a 3 inch polypropylene female NPT bulkhead fitting at the cone outlet and a 16 inch threaded vented manway on top. The tank is rated for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 4950 gallons of water weighs 41283 lb. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs it with a 3 year warranty. A cone bottom tank needs a stand: Norwesco pairs this one with stand N-62473, sold separately.
Sizing a bulk tank for fertilizer or process liquid? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 and we will put the tank and its stand on one order.
Where a 15 degree cone fits
A 15 degree cone is the shallowest cone Norwesco makes. It suits liquids that drain cleanly on their own, such as water, liquid fertilizer, and solutions without heavy settling solids, and it keeps the most capacity under a given ceiling. If your product drops a sludge that needs a steep slope to slide to the outlet, look at the 30 degree tanks instead. The usual homes for this size are fertilizer dealers and large farms, water treatment chemical make-up, and plants that batch or decant and want every gallon out between batches. Our cone bottom buyers guide comparing 15, 30 and 45 degree cones covers the angle choice, and the 4950 gallon 15 degree cone bottom buyers guide covers this tank in detail. For the volume itself, use the tank sizing calculator and tank sizing guide.
What goes in it
Water, liquid fertilizer and the treatment chemicals that polyethylene handles. Check the liquid in our chemical compatibility guide before the first fill; the entries for urea solution, calcium chloride, sodium hypochlorite, ferric chloride and sulfuric acid are the ones buyers of this size ask about most. The 1.5 rating means a liquid up to 1.5 times the weight of water, 12.52 lb per gallon. Heavier liquids belong in the heavy duty version, the 4950 gallon 15 degree cone bottom tank in light blue, rated to 1.9. Keep the contents under 120 F.
Openings, fittings and the stand
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting at the point of the cone. A 3 inch outlet empties a tank this size at a useful rate; thread the valve in before the tank is set and support the pipe on its own.
- Manway. A 16 inch threaded vented manway on top, for filling from a hose or a pump, dropping a level float in, or getting a hand and a brush inside.
- Stand. Stand N-62473 is required and sold separately. The stand carries the full weight of tank and contents, so the floor under it matters more than the tank does; have your installer confirm the slab before delivery.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the cone geometry, the outlet position and the overall height with the manway.
Sizes nearby
One size down, with a steeper cone: the 3000 gallon 30 degree cone bottom tank. One size up in the heavy duty line: the 5500 gallon 30 degree cone bottom tank in blue. The swatches above the price switch between the standard and heavy duty versions of this tank.
Shipping and receiving
This is an oversize load. It ships by flatbed or dedicated truck from Norwesco's Albertville, Alabama plant, 159 by 102 by 102 inches and 1331 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and a written quote is available for a job that needs paperwork. Arrange the unloading before the truck is on site: a forklift with long forks or a loader with wide straps around the cylinder, never a chain around the cone or a strap through the manway. At the tailgate, check the part number against 45381 on the bill of lading, look over the cone, the outlet fitting and the manway for transit damage, set the tank in its stand on a level floor, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 45381.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 4950 Gallon 15 Degree Cone Bottom Tank video (73 seconds) with dimensions, fittings and shipping notes.
