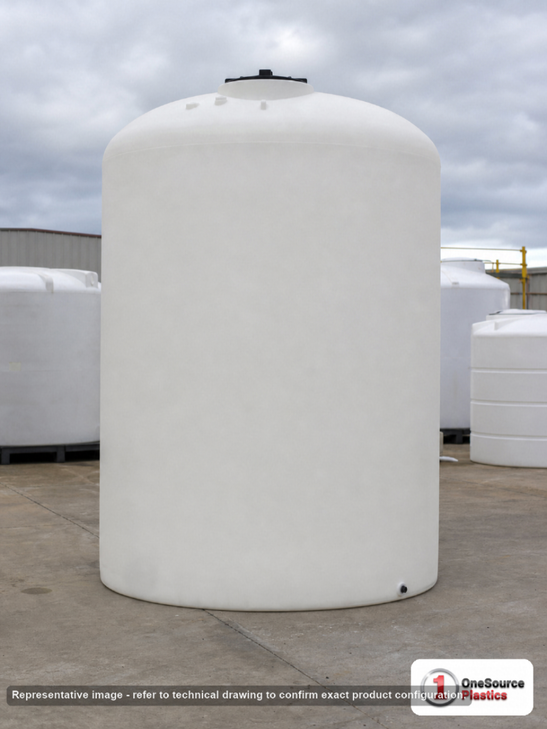

6500 Gallon Plastic Vertical Liquid Storage Tank

Why the 145 inch molding and not the 153s

Every other 6500 gallon tank on this sheet is a 153 inch molding. This one is 145, and those eight inches are the reason it exists. Measure the purlins before anything else: a platform, a fill line and a vent line all want room above the manway, and on a site where the 153s leave none, this shell fits and they do not. That is the family argument in one sentence, and it is worth more than any spec on the page if the building is already built. The second half of the family argument is the rating. This is the white wall at a specific gravity of 1.9, the dense liquid rating, and 102,999 pounds of contents is the largest figure of any tank in this batch; the 7140000N33 beside it is named at 1.35 on its own sheet, and each molding here is rated as its own sheet says rather than as a group. White polyethylene passes daylight, so the liquid line shows through the wall and an operator reads the level from the ground; a liquid that light degrades wants one of the black moldings instead. Then the pad, which at this volume is the real work. Full at the rating, 102,999 pounds stands on a 120 inch circle, carried by whatever the molded floor is touching and nothing else, so the slab is engineered to the framework in the concrete pad sizing guide instead of poured to a rule of thumb, level, continuous, wider than the tank, and inside a berm sized to the tank where the liquid is regulated. Twelve feet of empty shell at 1,500 pounds catches wind, so it is strapped to structure before the first fill and the straps are checked after the first storm and after the first full summer. And confirm the volume is right before the concrete is ordered: 6500 gallons against the dosing rate and the delivery interval in the tank sizing calculator, with the reserve and the freeboard from the tank sizing guide.

The 6500s, the 6200 and the 6600

Six tanks, one 120 inch base, and the only variable that matters in the table is the last inch of height. This molding is the low one at 145 inches and 1,500 pounds. The three 7140000 moldings put the same 6500 gallons at 153 inches and 1,450 pounds in the other walls, two of them black, the N33 named at 1.35 on its own sheet and the N40 and N46 in cross-linked polyethylene; take one of those when the roof is not the limit and the wall you need is theirs. Below them, the 8220000C34 is the black 6200 at 140 inches, five inches lower again, for the tightest building in the group at the cost of three hundred gallons. Above them, the 5300400N40 stands 158 inches and 1,900 pounds for 6600 gallons, which is the buy for a bay with height to spare. Everything in this family sits on the same ten foot pad, so a site can change its mind about height later without changing its concrete.

Two rows look the same? The difference is the wall; call 866-418-1777 with the liquid and we will say which, or ask for a quote on both.

Vent capacity for a 6500 gallon delivery

• Vent and fill: one 18 inch threaded vented manway serves as fill point, hatch and vent path, and at 6500 gallons the vent is the fitting that decides whether a fast tanker delivery is a routine hour or an incident. Size the vent path to the delivery pump rather than to the tank, keep it screened and clear, run it outdoors where the liquid fumes, and treat a restricted vent on a tank being pumped out as the emergency it is.
• Fill path: down a dip tube to the floor. A 6500 gallon load dropped from twelve feet onto the surface aerates the liquid, mists the headspace and builds static, and a dip tube costs less than any of the three.
• Headspace: the vapor band above the liquid line is where a chemical tank shows its age first, so put a light on it at every opening and keep the manway closed between deliveries.
• Access: 145 inches up, which is a platform with a rail rather than a ladder, and a fill coupling brought to working level so the driver stays on the ground.
• Outlet: a 3 inch polypropylene female NPT bulkhead fitting at the base, as the sheet lists it. Tell us the liquid at order and the fitting, gasket and bolting are matched to it; flexible connector on the first joint, first valve on its own support off the pad.
• Service limit and warranty: not published on this sheet, so this page states neither. Ask us in writing before specifying a warm duty.

Twelve feet of liquid over a 3 inch outlet drains 6500 gallons in a shift and keeps a transfer pump flooded to the last few inches, which is the practical reason this shape is bought for a dosing building. Put the pump below the outlet for a gravity prime, give it a straight run before the first elbow, and fit a low level float so it never pumps air. Paint the chemical's name on the wall where it can be read from the gate, log the strength and date of every load, and where winter bites, trace or insulate the valve and the first pipe run and let the body ice from the top down.

High volume dosing where the roof line is the limit

This is a plant tank. The buyers are a municipal water or wastewater works dosing from a chemical building with a fixed ceiling, a food or beverage plant holding a cleaning solution in an existing bay, a co-op or fertilizer dealer with a dense liquid blend under a shed roof, a plating or metals operation with a bulk acid, a processing plant that buys by the tanker and wants most of a tanker in one vessel. At a 1.9 rating the liquid is usually dense rather than merely aggressive, and the arithmetic of 102,999 pounds against 54,210 for water is the whole reason to pay for this wall instead of a water wall. Water belongs well inside it, but a tank of standing water is not a fire reserve until the draw rate, the connection and the freeze protection make it one, which the fire-water reservoir design guide sets out plainly. If the shell and the height are still open, the 6500 gallon natural white vertical tank buyers guide walks the whole group on this base, including the moldings this page does not carry.

Chowchilla to the pad, 1,500 pounds at class 400

The SII-7140300C26 is molded at Chowchilla, California and ships at class 400 as the sheet lists it, shipping at 120 inches by 120 inches by 145 inches, moving as an oversize load. Ten feet of width and twelve feet of length on the deck make it a permitted load rather than a rate off a table, so the route, the gate, the turn and the place the truck can stop are settled before the order, not on delivery morning. The freight cost estimator prices the lane to your ZIP and the listed price is before freight. A crane or telehandler stands 1,500 pounds up with slings under the body, never a hook through the manway, and the straps to structure go on before the machine leaves. Fill it with water to the manway, hold it, read the pad edge and the outlet fitting, then drain and dry it before the chemical arrives. Do that first fill in daylight with a second person watching the base; on a tank this size an hour of attention buys years of quiet. Mark the vent and the outlet on the outside of the shell so nobody caps the wrong one in the dark.
