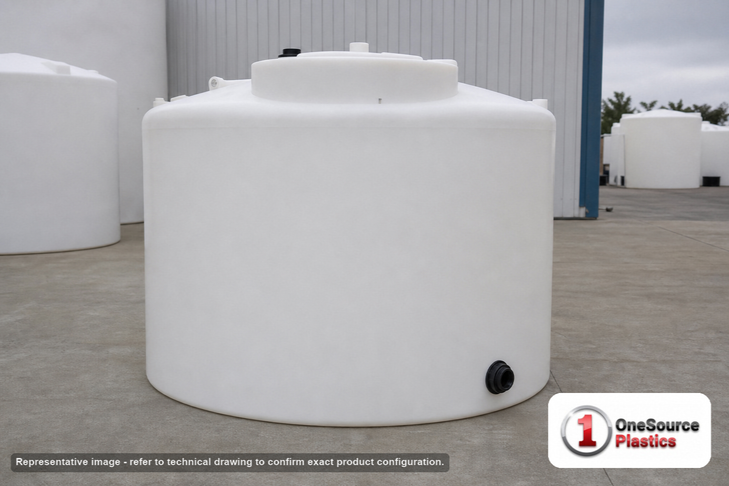

750 gallon heavy duty vertical tank, only 50 inches tall, with a 2 inch outlet fitted

Snyder part number 1008500C26 is a 750 gallon heavy duty vertical storage tank in natural white polyethylene. It is 72 inches in diameter but only 50 inches tall, weighs 175 lb empty, and ships from Snyder's plant in Chowchilla, California. The outlet is a 2 inch polypropylene female NPT bulkhead fitting and the top opening is an 18 inch threaded vented manway. The wall is rated for liquids up to 1.9 specific gravity and up to 120 F (48 C). Full of water it holds 6,255 lb (750 x 8.34); a liquid at the full rating weighs about 11,880 lb. Snyder backs it with a 3 year warranty.

Tight on height? Call 866-418-1777 with the space you have and what it will hold, or get freight to your ZIP and add it to your cart above.

A low tank for low places

A 50 inch tank fits where a taller one cannot: under a deck or a low roof, in a crawl-height equipment room, beside a building under the eaves, or on a site where a tall tank would be an eyesore or a wind problem. You can check the level and reach into the manway standing on the ground. The trade is a wide footprint, a 72 inch circle that needs level, continuous support. The 1.9 rated heavy duty wall means it is not limited to water: it handles brine, liquid fertilizer and many treatment liquids too. Check anything other than water in our chemical compatibility guide, and keep the liquid at or under 120 F. The natural white wall shows the level from outside.

Size the base with the concrete pad sizing guide. For an emergency or fire water reserve, the rural fire water reservoir guide applies, and for collecting rain, grey water or condensate, the water reuse tank layout guide.

Openings and fittings

Outlet. 2 inch polypropylene female NPT bulkhead. Thread the valve in, then support it and the first run of pipe off the tank wall.
Manway. 18 inch, threaded and vented.
Extra fittings. Tell us any inlet, overflow or second outlet you need and we will confirm the positions with Snyder for 1008500C26.
Potable use. Ask us before ordering this tank for drinking water.

Sizes and versions nearby

The same size in black: the 750 gallon black heavy duty vertical tank, for outdoor water you want kept dark. In cross-linked polyethylene, the 750 gallon ASTM XLPE heavy duty tank and its black version. A size down, the 710 gallon ASTM XLPE heavy duty tank; a size up, the 850 gallon black heavy duty tank. The tank sizing calculator and tank sizing guide help with volume.

Shipping and receiving

It ships from Chowchilla, California at 175 lb, shipping size 72 by 72 by 50 inches. The listed price is before freight; the freight cost estimator gives the cost to your ZIP. Check 1008500C26 on the bill of lading and look the tank over before you sign. Fill it with water first and watch the outlet before anything else goes in.

Ready to order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.

‌‌‌‌‌‌‌‌‌‌‌‌‌‌‌‌‌‌‌‌

Freight and documents

Ships from: Chowchilla, CA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
