A 150 gallon white applicator saddle tank for a tractor or a sprayer frame

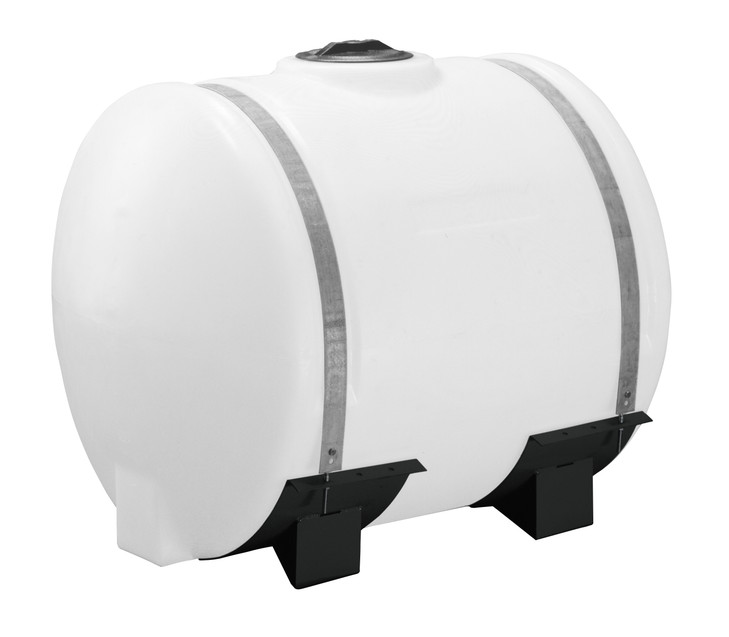

The Norwesco 150 gallon plastic applicator saddle tank in white, part number 40648, is a polyethylene tank 58 inches long, 30 inches wide and 33 inches tall, weighing 50 lb empty. A saddle tank is shaped to mount on the side of a tractor or on a sprayer frame, usually one on each side, so that the liquid rides with the machine to the field instead of in a trailer behind it. The shape is narrow and tall for the volume, which is what lets it sit alongside the frame without widening the machine. It comes with a 1-1/4 inch polypropylene female NPT bulkhead fitting as the outlet and an 8 inch threaded vented lid on top. The tank is rated for liquids up to 1.5 specific gravity, which Norwesco states as a maximum of 12.52 lb per gallon; 150 gallons of water weighs about 1251 lb. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs the tank with a 3 year warranty. White lets you see the liquid level through the wall from the seat.
Is this the right size? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the tractor or sprayer it is going on.
On a tractor, a sprayer or a frame
The tank is 58 inches long, 30 inches wide and 33 inches tall, so measure the space between the front axle and the step, or along the sprayer frame, before you order. Full of water each tank is close to 1251 lb, and a pair is twice that, carried high on the side of the machine; the tractor's front axle rating and the mounting brackets have to be sized for the full weight, not the empty tank. No brackets or straps come with the tank. The saddle shape gives the mounting hardware a surface to bear on, and the hardware itself comes from the tractor or sprayer maker or your fabricator; tell us the machine and we will help you find the right kit. Support the tank continuously along the saddle, restrain it in every direction the machine can move, and keep the straps off the lid. Our guide to Norwesco applicator and leg tanks and the DOT non-roadable trailer rules covers how applicator tanks are classified on the road, and the farm fleet DOT classification guide covers the agricultural exemption.
What goes in it
Liquid fertilizer, herbicide and pesticide mixes and water are the normal loads, and polyethylene handles all of them. Check the liquid in our chemical compatibility guide before the first fill; the entries for urea solution, calcium chloride, phosphoric acid and sulfuric acid are the ones applicator tank buyers ask about most. Liquids heavier than 1.5 times water are outside this tank's rating. If you blend fertilizer in it, our note on fertilizer blend stratification and how to catch it before the spreader runs off spec applies here. For the volume, use the tank sizing calculator and the tank sizing guide.
Openings and fittings
- Outlet. A 1-1/4 inch polypropylene female NPT bulkhead fitting, factory installed. A 1-1/4 inch valve, hose barb or pump suction adapter threads straight into it. Support the valve and the first length of hose on the frame so the fitting carries liquid, not hardware and vibration.
- Lid. An 8 inch threaded vented lid on top, wide enough for a fill hose or to pour in a jug of concentrate. The vent lets the tank breathe as the pump draws it down; never plug it.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the saddle profile and the outlet and lid positions for planning brackets and plumbing.
Sizes nearby
Norwesco makes a second 150 gallon saddle tank in a different body: the 150 gallon white applicator saddle tank, part 45117; compare the drawings to see which profile fits your machine. The same tank in black with fittings: the 150 gallon black saddle applicator tank with fittings. One size up: the 200 gallon white applicator saddle tank. For a chemical injection tank rather than a saddle: the 125 gallon chemical injection tank.
Shipping and receiving
The tank ships LTL, NMFC 156600-02, from Norwesco's Griffin, Georgia plant. On the pallet it is 58 by 30 by 33 inches and 50 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and a written quote is available for a job that needs paperwork. If you are buying a pair, put both on one order so they arrive together. At the tailgate, check the part number 40648 against the bill of lading, look over the saddle face for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Griffin, GA; Lancaster, OH. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40648.
See this tank
Product video. Watch the Norwesco 150 Gallon Plastic Applicator Saddle Tank in White video (71 seconds) with dimensions, fittings and shipping notes.
