A 1505 gallon black heavy duty vertical tank for a narrow slot

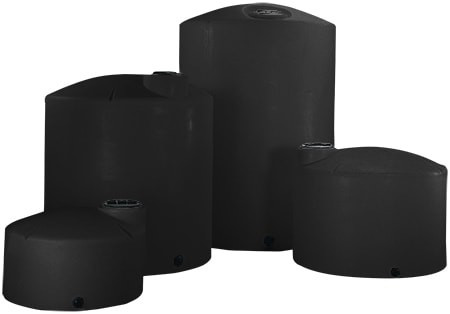

The Norwesco 1505 gallon black heavy duty vertical storage tank, part number 44261B, is a rotomolded polyethylene tank 60 inches in diameter and 135 inches tall, weighing 340 lb empty. It stands eleven feet three on a base exactly five feet across, which is how it puts 1505 gallons into a space most tanks this size cannot use. The wall is Norwesco's heavy duty grade, rated for liquids up to 1.9 specific gravity, which takes in water, every common liquid fertilizer and most of the chemical solutions polyethylene handles; 1505 gallons of water weighs 12552 lb, and at the full 1.9 rating the contents can reach 23848 lb. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet and a 16 inch threaded vented manway on top. The resin is FDA compliant per Norwesco, Norwesco lists its water tanks under NSF/ANSI 61 (the listing names no models), the service limit is 120 F, and Norwesco backs the heavy duty tank with a 5 year warranty. Black keeps light out of the contents, which slows algae in water and protects light sensitive liquids.
Storing something heavier than water in a tight spot? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the liquid and the clear height on site.
Where it goes and what it holds
Buy this tank for a chemical or fertilizer feed where floor space is scarce: a greenhouse fertigation tank against the end wall, a treatment chemical day tank in a block building, a wash or brine tank in the corner of a shop. The heavy duty wall carries liquids denser than water, and black keeps light off contents that degrade in sunlight. For plain water the standard wall tank in the same mould costs less. Check the liquid in our chemical compatibility guide before the first fill and keep it under 120 F. Plan around the height: the manway sits at the top of 135 inches, so filling, float valve service and cleaning need a ladder or a platform, and the pad needs clear sky above it. A tall narrow tank is the least forgiving of a poor pad, because a high spot under one edge becomes a lean you can see from across the yard; the pad has to be flat, continuous and level under the whole 60 inch base, and our guide to concrete pad sizing for above ground polyethylene tanks sets out the slab. If rainwater is the plan instead, our note on first flush diverter sizing for rainwater harvesting explains what goes ahead of the inlet, and the industrial water reuse storage guide covers condensate and grey water collection. For the volume itself, use the tank sizing calculator and tank sizing guide.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. Your valve, camlock or pump suction threads straight in. On a tank this tall the head at the outlet is higher than on a squat tank of the same volume, so support the valve and the first length of pipe on their own within a foot of the wall and put a flexible connector before the first rigid joint.
- Manway. A 16 inch threaded vented manway on top: fill from a hose, drop a float or a level sensor in, and get a hand and a brush inside to clean. Leave the vent clear so air can move as the level changes.
- Extra ports. Only the one outlet comes installed. A recirculation return, a second draw or an overflow means extra bulkhead fittings; tell us when you order and we quote them with the tank.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height, the manway position and the base profile.
Sizes nearby
The same heavy duty wall in light blue is the 1505 gallon light blue heavy duty vertical tank. The standard 1.5 wall in this mould comes as the 1505 gallon black vertical tank or in white as the 1505 gallon white vertical tank. Nearby sizes: the 1500 gallon black vertical tank, a different mould, and the 1550 gallon black vertical tank; compare their diameters and heights on their pages against your slot. The colour and wall swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL at freight class 300 from Norwesco's Fairfield, Texas plant as a 60 by 60 by 135 inch load weighing 340 lb. Two people can walk it off a liftgate and roll it on its base to the pad; it is the height that makes it awkward, not the weight. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 44261B on the bill of lading, look over the base and the outlet fitting for transit damage, and fill with water the first time before the tank carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Fairfield, TX. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 44261B.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
