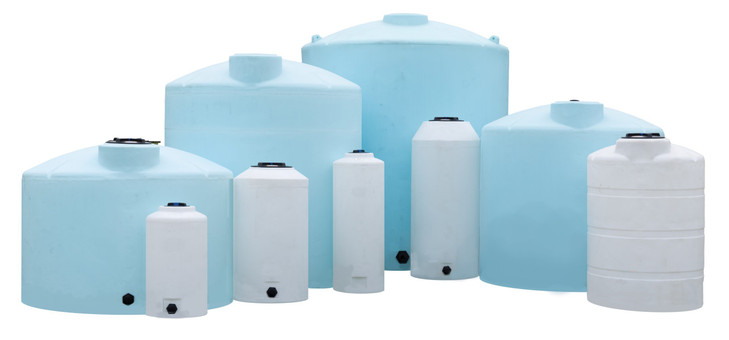

A 2500 gallon heavy duty vertical tank in light blue for dense liquids
The Norwesco 2500 gallon heavy duty vertical liquid storage tank in light blue, part number 40052, is a high density linear polyethylene tank 95 inches in diameter and 90 inches tall, weighing 425 lb empty. Heavy duty is the point: it is rated for liquids up to 1.9 specific gravity, so it holds dense fertilizers and chemicals that a standard 1.5 tank cannot, and the light blue colour is how Norwesco marks that rating in the yard. It comes with a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer as the outlet and a 16 inch threaded vented manway on top. The service limit is 120 F. Norwesco backs it with a 3 year limited warranty. Full of water it holds 20850 lb; at the full 1.9 rating, about 39615 lb. At 90 inches tall it is one of the shorter 2500 gallon tanks, which is why it ends up inside buildings.
Is this the right rating? Call 866-418-1777 with what you are storing, or get freight to your ZIP and add it to your cart above.
Where it goes
Liquid fertilizer at a farm or a dealer, dense treatment chemicals at a water or wastewater plant, brine and de-icing liquid at a road yard, and process liquids at an industrial site. If everything you store is near the weight of water, the standard duty versions below are enough and cost less; buy the 1.9 rating when the liquid needs it. The tank also works as a plain water reserve; for a rural fire reserve, our fire water reservoir design guide covers sizing and cold weather. Our 2500 gallon vertical tank buyer's guide walks through the decisions in order. For the volume, use the tank sizing calculator and tank sizing guide. If your job needs Norwesco's certificate and resin letters on file, ask and we will send what the maker publishes for this tank family.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting low in the sidewall, with a 2 inch reducer already in it. Run 2 inch pipe straight into the reducer, or take the reducer out for a full 3 inch connection. Support the valve and the first length of pipe on their own, and use a flexible connector to rigid pipe; a polyethylene tank grows as it fills.
- Manway. A 16 inch threaded vented manway on top: wide enough to fill from a hose or a pump, drop a float in, and get a hand and a brush inside to clean.
- The liquid. Check anything other than water against the maker's chemical guidance before it goes in, and ask us if you are not sure. Hotter than 120 F needs a different tank.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet and manway positions for the piping layout.
The pad and the first fill
The tank wants a level, continuous surface larger than its 95 inch footprint, with no edge, drain or joint under the wall: a concrete pad outdoors, a sound slab indoors. Full it is a concentrated load of 20850 lb or more, and the floor rating belongs to your engineer. Fill with water the first time, slowly, and walk the fittings for weeps before anything else goes in.
Versions of this tank
The same heavy duty tank in black, for light sensitive liquids: the 2500 gallon black heavy duty vertical tank. Standard duty, rated 1.5, in white: the 2500 gallon vertical tank in white; and in black: the 2500 gallon vertical tank in black. The swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank is oversize freight, 95 by 95 by 90 inches and 425 lb, on a flatbed from the nearest of Norwesco's plants; this tank is made at a dozen of them, so the lane is usually short. You need a forklift or several hands and a clear bay to take it off the truck. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote for a job that needs paperwork. At the tailgate, check the part number against 40052 on the bill of lading, look over the whole sidewall and the outlet fitting for transit damage, and fill with water the first time before anything else goes in.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA; Merced, CA; Griffin, GA; Sheldon, IA; St. Bonifacius, MN; Owego, NY; Lancaster, OH; Shawnee, OK; Fairfield, TX; Tooele, UT; Washougal, WA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40052.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 2500 Gallon Blue Heavy Duty Vertical Liquid Storage Tank video (62 seconds) with dimensions, fittings and shipping notes.
