1,200 gallons under a five foot ceiling, with a siphon tube

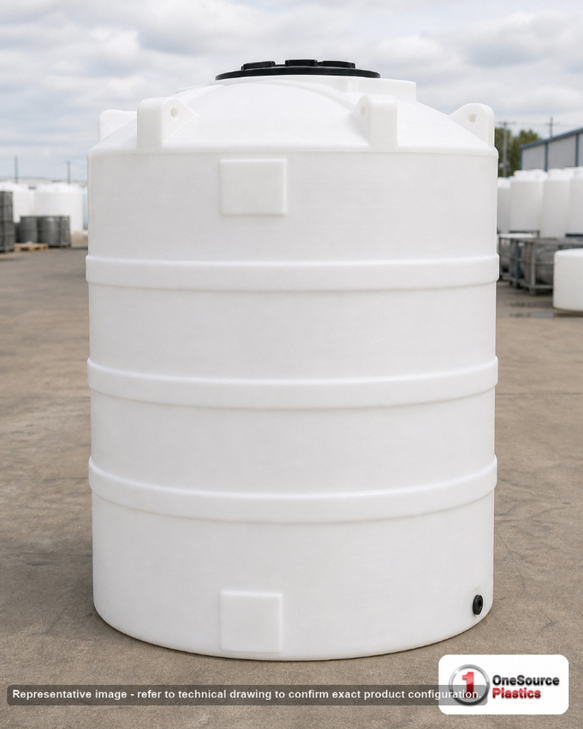

The Snyder 32064 holds 1,200 gallons of liquid in a white polyethylene shell 86 inches across and 57 inches tall, weighing 315 pounds. Its wall is rated for a specific gravity of 1.5, or 15,012 pounds of contents against 10,008 for water, and its outlet is unusual: a 2 inch polypropylene female NPT bulkhead fitting with a siphon tube, which draws from the floor of the tank through a fitting mounted higher on the wall, so the tank empties completely without a fitting at the very bottom that a spill pallet or a mezzanine deck would foul. A 20 inch threaded, vented manway on top, and a base that ships as standard LTL freight.
Talk to a person first? 866-418-1777 reaches a tank specialist, not a call center; or see freight to your ZIP and add the 1200 gallon tank to your cart above.
Low, heavy and self-draining
Three hundred and fifteen pounds is a heavy wall for 1,200 gallons; against the 160 pound 1,100 gallon tank in the same shape it is nearly twice the resin, for brine, fertilizer and dilute chemicals up to 1.5 specific gravity and for years outdoors. The siphon outlet is the detail to notice: it lets the tank sit on a flat deck or in a containment basin with no clearance under it, and it still draws to the floor. Full, the tank loads an 86 inch circle to 15,012 pounds at the rating, a slab or a deck checked for that load in full contact under the whole floor. The tank sizing calculator and the tank sizing guide settle the volume against the draw or the delivery interval.
Low against tall between 1,100 and 1,300 gallons
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 32064 (this tank, 1.5 SG, siphon outlet) | 1,200 | 86 x 57 in | 315 lb |
| 1710000C26 | 1,100 | 86 x 55 in | 160 lb |
| 1830200N40 (tall) | 1,200 | 60 x 109 in | 300 lb |
| 1830400N40 | 1,300 | 72 x 87 in | 290 lb |
| 32086 (tall, 1.5 SG) | 1,300 | 60 x 114 in | 224 lb |
The 1710000C26 is the standard low tank, 2 inches shorter and 155 pounds lighter, for a liquid that does not need this wall. The 60 inch tanks are the same volume stood up: the 1830200N40 is 52 inches taller on a base 26 inches narrower, and the 32086 reaches 114 inches for 100 more gallons at the same 1.5 rating. The 1830400N40 splits the difference at 72 by 87 inches.
Still deciding between these? Freight to your ZIP often settles it; the wider tanks ship differently. Or call 866-418-1777 and we will walk the table with you.
Outlet and manway
- Outlet: 2 inch polypropylene female NPT bulkhead fitting with an internal siphon tube to the floor; a PVC or CPVC adapter, a flexible transition, and a valve supported off the deck. A siphon outlet needs a pump or a prime; it does not gravity-drain below the fitting height.
- Access: 20 inch threaded, vented manway, at waist height.
- Service limit: 120 F / 48 C.
A 57 inch white tank shows its level in daylight and reads any sender easily. Fill through a dip tube so dense liquid does not splash the lid, and keep the vent clear so a fast draw cannot pull a vacuum on the wall. The smaller white tanks in the same family are covered in the 2,000 gallon, 500 gallon and 300 gallon vertical tank buyers guides.
Who buys this tank
Brine and fertilizer on a farm trailer, dilute treatment chemicals in a low room, a mezzanine reagent tank with no clearance underneath, and, with water in it, one unit of the fire reserve the fire-water reservoir design guide describes. A low, heavy tank is the right shape for a trailer: it does not tip and does not catch wind.
Delivery day
At 86 inches across the 32064 ships as LTL freight (NMFC 156600-02), palletized, at a class rate the freight cost estimator shows for your ZIP; the listed price is before freight. A liftgate and a pallet jack handle 315 pounds. Water-fill to the manway, hold it, and prove the siphon draws to the floor before the first product fill. Keep the delivery paperwork with the tank; the serial number on the shell is what a warranty claim starts from.
Freight and documents
Ships from: Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 32064.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Snyder Industries 1200 Gallon Plastic Vertical Liquid Storage Tank in White video (60 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
