1,500 gallons rated to 1.5 specific gravity, 65 inches across

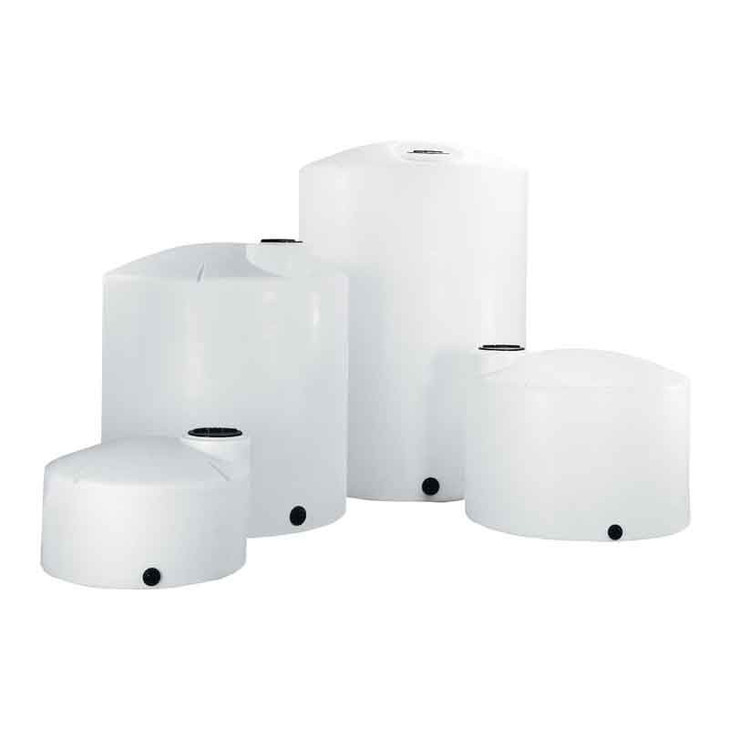

The Snyder 32104 is a white high density linear polyethylene vertical liquid storage tank, 65 inches in diameter and 114 inches tall, holding 1,500 gallons at 302 pounds empty. Its wall is rated for a specific gravity of 1.5, or 18,765 pounds of contents against 12,510 for water: the middle rating, for brine, fertilizer and dilute treatment chemicals, and a heavier-than-standard water wall for an outdoor life. A 2 inch polypropylene female NPT bulkhead outlet and a 20 inch threaded, vented manway, on a base that still ships as standard LTL freight.
Talk to a person first? 866-418-1777 reaches a tank specialist, not a call center; or see freight to your ZIP and add the 1500 gallon tank to your cart above.
Which wall for which liquid
Snyder molds this 65 by 114 inch shell at more than one wall thickness, and the empty weight is how they are told apart: the 32108 at 353 pounds carries the 1.9 rating for concentrated chemicals, and the 32104 at 302 pounds carries the 1.5 rating that covers everything from water to brine and most fertilizer solutions. Look up the density of the liquid at the concentration you buy it; under 1.5, this is the tank. The 1,500 gallon vertical tank buyers guide compares the tall and low shapes in this class, and the tank sizing calculator and the tank sizing guide settle the volume against the draw or the delivery interval.
Tall against low at 1,500 gallons
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 32104 (this tank, 1.5 SG) | 1,500 | 65 x 114 in | 302 lb |
| 32108 (1.9 SG) | 1,500 | 65 x 114 in | 353 lb |
| 1770000C34 (low profile) | 1,500 | 86 x 72 in | 260 lb |
| 1840000C26 | 1,550 | 64 x 124 in | 335 lb |
| 1830400N40 | 1,300 | 72 x 87 in | 290 lb |
The 32108 is the same shell with 51 more pounds of resin for the 1.9 rating. The 1770000C34 lays the same 1,500 gallons under a 72 inch ceiling on an 86 inch base, 42 pounds lighter. The 1840000C26 is the closest shape, 1 inch narrower and 10 inches taller for 50 more gallons, and the 1830400N40 splits the difference at 72 by 87 inches for 1,300 gallons.
Still deciding between these? Freight to your ZIP often settles it; the wider tanks ship differently. Or call 866-418-1777 and we will walk the table with you.
Openings and the headspace
- Outlet: 2 inch polypropylene female NPT bulkhead fitting at the base; a PVC or CPVC adapter, a flexible transition, and a valve supported off the floor.
- Access: 20 inch threaded, vented manway, nine and a half feet up.
- Service limit: 120 F / 48 C.
A tall polyethylene tank wants a vent that breathes at the rate it is filled and emptied, a strap against wind while it is empty, and an inspection routine that looks above the liquid line, where a wall fails first. Fill through a dip tube so dense liquid does not splash the lid, and read the level with a sight tube or a hydrostatic sender at the outlet; a white tank in daylight shows its own.
Put to use
Brine at a softener plant, liquid fertilizer at a co-op, dilute treatment chemicals in a narrow chemical room, and water where a heavier wall is wanted for a long outdoor life. In a freezing climate, a brine or fertilizer solution expands against a wall not designed for ice; house the tank or keep it above freezing, and insulate or drain the outlet valve and the first run of pipe.
How it ships
The 32104 ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator gives it for your ZIP, and the listed price is before freight. A liftgate and two people handle 302 pounds. Strap it before it is filled, water-fill to the manway with a hold, and check the outlet fitting after the hold. A strap that is checked once a season is a strap that holds; put it on the same calendar as the gutters.
Freight and documents
Ships from: Merced, CA; Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 32104.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
