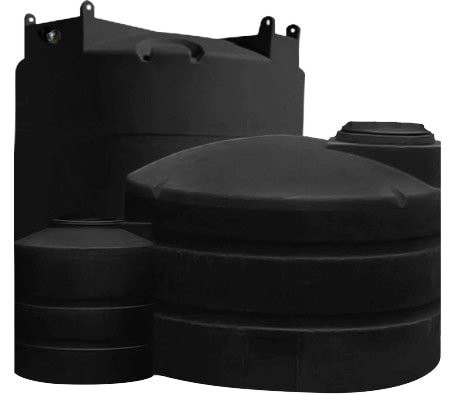

Snyder Industries 550 Gallon Black Vertical Water Storage Tank

A low 550 and the pad it wants

Full, the WB33 puts 4,587 pounds on a 64 inch circle, and because a rotationally molded floor bears on the whole pad, the pad carries it: a compacted, screeded gravel base or a slab in full contact, per the concrete pad sizing guide, with the empty tank strapped against wind. On a trailer the same rule holds: continuous support under the floor, a strap over the top, and the outlet valve protected from the road. Black polyethylene absorbs the ultraviolet that ages a white wall and passes no light to the liquid, so outdoors in full sun the water holds clear for years; it runs warmer in the sun than a white tank, so a water tank goes on the shade side of the building. The tank sizing calculator tells you whether 550 gallons covers the draw, and the tank sizing guide covers days of supply.

Low and tall 500 to 750 gallon tanks from Snyder

The WG32 and WG33 are the green 550s on this same 64 inch base, the WG33 two inches taller at the manway. The WB34 is the black 550 turned upright, 48 inches across and 77 inches tall, for a site with height and no floor; the 32511 and 32517 stand 500 and 750 gallons on that same 48 inch base at 76 and 106 inches.

Torn between two rows? Call 866-418-1777 with the liquid and the ceiling height, or ask for a quote on both and compare the freight.

Ports and access

• Inlet: 1-1/2 inch polypropylene female NPT bulkhead fitting, high on the wall.
• Outlet: 2 inch polypropylene bolted fitting with stainless steel hardware, at the base; a flexible connector between the fitting and hard pipe, and the valve supported off the pad.
• Access: 18 inch threaded, vented manway, 46 inches up, opened from the ground.
• Service limit: 120 F / 48 C.

The bolted outlet clamps a gasket between two flanges instead of trusting one nut behind the wall, which is the fitting to have on a tank that rides a trailer or takes a hose yanked at an angle. The water column above it is under four feet, so a pump sits as low as the outlet and primes by gravity. A black wall shows no level, so fit a sender or a sight tube, and a float switch at low level so the pump never runs dry. Where it freezes, wrap or drain the outlet valve and the first pipe run; the body takes ice from the top down without harm.

Duty this one is bought for

Water on a pickup or a small trailer for a garden or a fence line, well storage under a deck, rain storage below a shed eave, stock water in a paddock, and the reserve for a small fire line of the kind the fire-water reservoir design guide describes. Some are the storage stage of a reuse system for roof water and condensate, per the industrial water reuse tank topology article, where the dark wall keeps stored water from turning green.

Freight and the first fill

The WB33 ships as LTL freight at class 400, the class light, bulky tanks take; the freight cost estimator quotes it to your ZIP, and what is listed here is the price before freight. Two people carry 95 pounds; at 64 inches across it goes around the building. Fill it to the manway once and hold it the way the hydrostatic test method for new tanks lays out, watching the pad edge and both fittings before the pump goes on. On a trailer, do the same test parked on level ground, then drive it around the block and look again. The first fill is the only cheap time to find a problem, so do it in daylight with someone watching the base.
