Vertical Tanks — Comprehensive Catalog

Vertical polyethylene storage tanks are the most-specified geometry across static water, chemical, and industrial process service. Our catalog spans every active SKU from Norwesco, Snyder Industries, Chem-Tainer, Enduraplas, and Bushman — from 10-gallon utility tanks to 15,500-gallon municipal-scale stationary vessels. Vertical orientation gives you the highest gallons-per-square-foot of footprint at the lowest manufacturing cost — and rotomolded one-piece polyethylene construction eliminates seams, gaskets, and corrosion failure modes that plague steel and fiberglass alternatives.

Applications

  • Bulk water storage — potable (NSF 61 models on request), irrigation, fire suppression, livestock
  • Chemical storage — acids, caustics, surfactants, oxidizers (verify resin via the Chemical Compatibility Guide)
  • Industrial process holding, batch staging, day-tank service
  • Agricultural — fertilizer, herbicide, AdBlue/DEF, water hauling supply
  • Emergency potable water reserve and CIP (Clean-In-Place) make-up

Compliance & Standards

Vertical polyethylene tanks in this catalog are typically rotomolded to ASTM D1998 — the industry standard governing wall-thickness vs. specific gravity, seam-free construction, and stress-crack resistance — from FDA 21 CFR 177.1520 compliant polyethylene resin (certifications vary by model - check each product's Specifications). UV-12 stabilizers are co-extruded for outdoor service. NSF 61 listed models available for potable drinking water — call to specify. Maximum continuous operating temperature: 120 °F HDPE, 140 °F XLPE.

Engineering & Selection

Two specifications drive vertical tank selection: specific gravity (SG) rating and head height. Hoop stress at the tank wall is a direct function of fluid density × static head. A 1.5 SG tank can store fluids up to 1.5× water density (e.g., 30% caustic, 32% sulfuric, most fertilizers); 1.9 SG tanks handle the heaviest commercial chemistries (e.g., ferric chloride, 50% caustic, brine). Always size SG rating to your worst-case fluid. Foundations must be flat, level, full-footprint pad — never on dirt or partial support. Concrete or compacted stabilized base recommended. NPSH for downstream pumps depends on head height — coordinate with your pump vendor before final placement.

Freight & Delivery

Tanks ship LTL motor freight from the closest stocking warehouse to your delivery ZIP. Typical transit 5–10 business days. Liftgate available at delivery (per-shipment fee). Always inspect at delivery and note damage on the bill of lading before signing — that is the carrier claim trigger. Bulk-order consolidation reduces per-tank freight 25–40%. Get your LTL freight quote by ZIP, or call 866-418-1777 for same-business-day quoted pricing.

Sizing & Selection

Pick capacity first, then verify diameter and height against your installation envelope. Most vertical tanks are listed by nominal capacity; actual fill volume to outlet centerline is 90–95% of nominal. Rotomolded tolerance is ±2–3% per ASTM D1998. Need help sizing? Call our application desk at 866-418-1777.

Related Categories

Cone-Bottom Tanks Leg Tanks Open Top Tanks Chemical Compatibility Septic Tanks

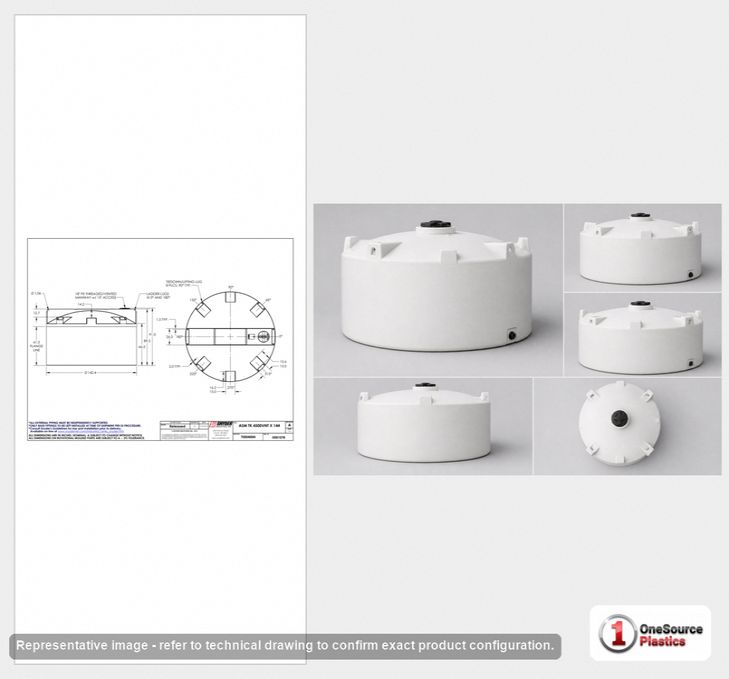

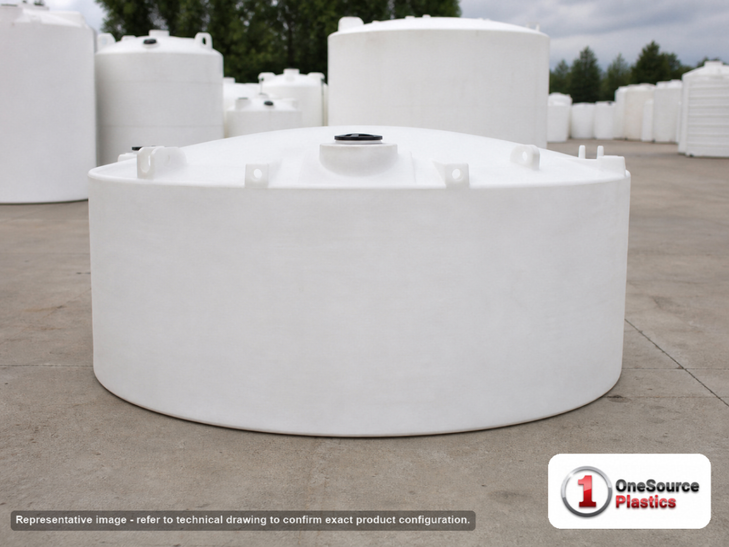

  • Snyder Industries 4500 Gallon ASTM 1.35 SG Vertical Storage Tank. Crosslinked Linear Polyethylene; Natural White; dimensions 91.0in H x 143.0in W x 143.0in L; 900.0 lb empty; 1.35 specific gravity rating; fittings: 1 Manway / Lid; max temp 140 deg F / 60 deg C; 3 Year Warranty. Manufacturer part number 7000400n29. Manufactured by Snyder. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 4500 Gallon ASTM 1.35 SG Vertical Storage Tank

    0

    Snyder Industries

    SKU: 7000400N29

    Snyder Industries 4500 Gallon ASTM 1.35 SG Vertical Storage Tank

    $11,989.00
    The item has been added

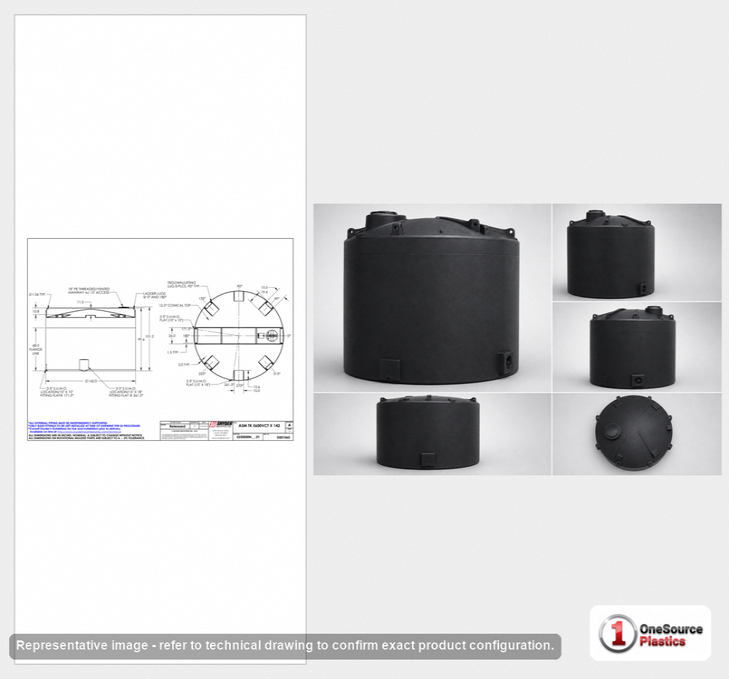

  • Snyder Industries 5600 Gallon ASTM Black Vertical Storage Tank. Polyethylene; Black; dimensions 102.0in H x 142.0in W x 142.0in L; 1150.0 lb empty; 1.5 specific gravity rating; fittings: 1 Manway / Lid; max temp 120 deg F / 48 deg C; 3 Year Warranty. Manufacturer part number 5250000n49. Manufactured by Snyder. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 5600 Gallon ASTM Black Vertical Storage Tank

    0

    Snyder Industries

    SKU: 5250000N49

    Snyder Industries 5600 Gallon ASTM Black Vertical Storage Tank

    $11,989.00
    The item has been added
  • Snyder Industries 6000 Gallon Plastic Vertical Liquid Storage Tank. Polyethylene; White; dimensions 188.0in H x 102.0in W x 102.0in L; 1450.0 lb empty; 1.9 specific gravity rating. Manufacturer part number SII-7430000C26. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 6000 Gallon Plastic Vertical Liquid Storage Tank

    0

    Snyder Industries

    SKU: SII-7430000C26

    Snyder Industries 6000 Gallon Plastic Vertical Liquid Storage Tank

    $12,228.71
    The item has been added
  • Snyder Industries 4100 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification. 4100.0 gallon capacity; High Density Linear Polyethylene; White; dimensions 100.0in H x 120.0in W x 120.0in L; 930.0 lb empty; 1.9 specific gravity rating; fittings: 1 Manway / Lid; max temp 120 deg F / 48 deg C; 3 Year Warranty. Manufacturer part number 8200000n45. Manufactured by Snyder. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 4100 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

    0

    Snyder Industries

    SKU: SII-8200000N45

    Snyder Industries 4100 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

    $12,229.00
    The item has been added

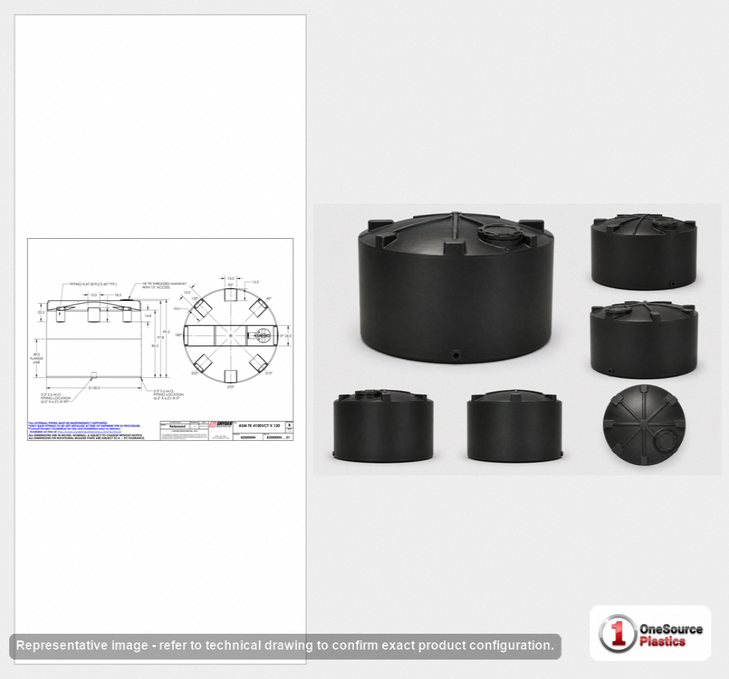

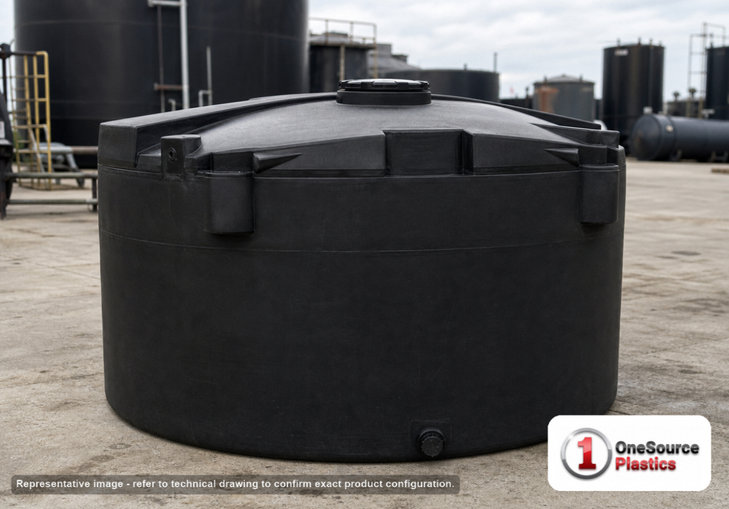

  • Snyder Industries 4100 Gallon ASTM Black Heavy Duty Vertical Storage Tank. Polyethylene; Black; dimensions 100.0in H x 120.0in W x 120.0in L; 930.0 lb empty; 1.9 specific gravity rating; fittings: 1 Manway / Lid; max temp 120 deg F / 48 deg C; 3 Year Warranty. Manufacturer part number 8200000n51. Manufactured by Snyder. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 4100 Gallon ASTM Black Heavy Duty Vertical Storage Tank

    0

    Snyder Industries

    SKU: 8200000N51

    Snyder Industries 4100 Gallon ASTM Black Heavy Duty Vertical Storage Tank

    MSRP: $12,495.00
    $12,229.00
    The item has been added
  • 4100 Gallon 45 Degree Plastic Vertical Cone Bottom Tank. 4100.0 gallon capacity; High Density Linear Polyethylene; White; dimensions 197.0in H x 90.0in W x 90.0in L; 1000.0 lb empty; 1.5 specific gravity rating; fittings: 1 Manway / Lid; max temp 100 deg F / 37 deg C. Manufacturer part number 5180000n49. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    4100 Gallon 45 Degree Plastic Vertical Cone Bottom Tank

    0

    Snyder Industries

    SKU: SII-5180000N49

    4100 Gallon 45 Degree Plastic Vertical Cone Bottom Tank

    $12,239.00
    The item has been added
  • Snyder Industries 3900 Gallon XLPE Heavy Duty Cone Bottom Tank. Crosslinked Linear Polyethylene; Natural White; dimensions 180.0in H x 90.0in W x 90.0in L; 1400.0 lb empty; 1.9 specific gravity rating; fittings: 1 Manway / Lid; max temp 100 deg F / 37 deg C. Manufacturer part number 5440000n42. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 3900 Gallon XLPE Heavy Duty Cone Bottom Tank

    0

    Snyder Industries

    SKU: 5440000N42

    Snyder Industries 3900 Gallon XLPE Heavy Duty Cone Bottom Tank

    $12,249.00
    The item has been added
  • Snyder Industries 3900 Gallon XLPE Heavy Duty Cone Bottom Tank. Crosslinked Linear Polyethylene; Black; dimensions 180.0in H x 90.0in W x 90.0in L; 1400.0 lb empty; 1.9 specific gravity rating; fittings: 1 Manway / Lid; max temp 100 deg F / 37 deg C. Manufacturer part number 5440000n48. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 3900 Gallon XLPE Heavy Duty Cone Bottom Tank

    0

    Snyder Industries

    SKU: 5440000N48

    Snyder Industries 3900 Gallon XLPE Heavy Duty Cone Bottom Tank

    $12,249.00
    The item has been added
  • Snyder Industries 4500 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification. 4500.0 gallon capacity; Polyethylene; White; dimensions 91.0in H x 143.0in W x 143.0in L; 900.0 lb empty; 1.5 specific gravity rating; fittings: 1 Manway / Lid; max temp 120 deg F / 48 deg C; 3 Year Warranty. Manufacturer part number 7000400n43. Manufactured by Snyder. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 4500 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

    0

    Snyder Industries

    SKU: SII-7000400N43

    Snyder Industries 4500 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

    $12,309.00
    The item has been added
  • Snyder Industries 4500 Gallon ASTM Black Vertical Storage Tank. Polyethylene; Black; dimensions 91.0in H x 143.0in W x 143.0in L; 900.0 lb empty; 1.5 specific gravity rating; fittings: 1 Manway / Lid; max temp 120 deg F / 48 deg C; 3 Year Warranty. Manufacturer part number 7000400n49. Manufactured by Snyder. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 4500 Gallon ASTM Black Vertical Storage Tank

    0

    Snyder Industries

    SKU: 7000400N49

    Snyder Industries 4500 Gallon ASTM Black Vertical Storage Tank

    $12,309.00
    The item has been added
  • Snyder Industries 2000 Gallon Plastic Vertical Double Wall Liquid Chemical Storage Tank in White. 2000 gallon capacity; High Density Linear Polyethylene; White; dimensions 103.0in H x 102.0in W x 102.0in L; 1180.0 lb empty; 1.9 specific gravity rating; fittings: 1 Manway / Lid; max temp 120 deg F / 48 deg C; 3 Year Warranty. Manufacturer part number 5570000n45. Manufactured by Snyder. Sold by OneSource Plastics (https://www.onesourceplastics.co
    Snyder Industries 2000 Gallon Plastic Vertical Double Wall Liquid Chemical Storage Tank in White

    0

    Snyder Industries

    SKU: SII-5570000N45

    Snyder Industries 2000 Gallon Plastic Vertical Double Wall Liquid Chemical Storage Tank in White

    $12,350.61
    The item has been added
  • Snyder Industries 2000 Gallon Plastic Vertical Double Wall Liquid Chemical Storage Tank in White - WV. High Density Linear Polyethylene; White; dimensions 103.0in H x 102.0in W x 102.0in L; 1180.0 lb empty; 1.9 specific gravity rating. Manufacturer part number SII-5570100N45. Sold by OneSource Plastics (https://www.onesourceplastics.com).
    Snyder Industries 2000 Gallon Plastic Vertical Double Wall Liquid Chemical Storage Tank in White - WV

    0

    Snyder Industries

    SKU: SII-5570100N45

    Snyder Industries 2000 Gallon Plastic Vertical Double Wall Liquid Chemical Storage Tank in White - WV

    $12,350.61
