300 Gallon Tanks

300 Gallon Tanks

Three hundred gallons is the first size with a real manway: 16 inches on the Norwesco vertical below, big enough to clean. Forty-one verticals, 23 rainwater bodies, 22 horizontal leg tanks, cone bottoms, holding tanks and loafs from Norwesco, Snyder, Chem-Tainer, Enduraplas and Bushman. Spin the vertical, then pick by shape.

112
tanks at 300 gallons
35 in
across
79 in
tall
1 to 1.9
wall rating, specific gravity
Get freight to my ZIPSee the 112 tanks

Listed from $619 before freight. Call 866-418-1777 to talk through the choice.

300 Gallon Vertical Liquid Storage Tank - Natural White (35" x 79") #40213

79inches tall. Taller than you are.

The 35 inch Norwesco vertical stands 79 inches, 7 inches over a 72 inch person, and still clears a 96 inch ceiling with the manway open. It will not pass a 36 inch doorway upright; the slimline and loaf shapes on this page will.

2,502pounds of water when full. Water alone weighs 2,502 pounds.

Multiply 300 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 3,753 pounds, and the 1.9 walls up to 4,754 pounds. On a trailer that is most of a half-ton truck's payload sitting over one axle.

Drag to fill the tank
See it in your space 3D traced from the manufacturer drawing
From $619list, before freightGet freight to my ZIP

The 112 tanks

Start with the wall. Resin sets what the tank can hold and how hot; the specific gravity rating sets how heavy a liquid the wall is built for. Pick a cell to narrow the list.

Vertical tanks

41 at 300 gallons

Closed cylinders with a threaded vented lid or manway; fittings low on the wall. Forty-one to choose from.

All 41 vertical tanks at 300 gallons

Every size of vertical tanks, or call 866-418-1777 for the one you need.

Rainwater tanks

23 at 300 gallons

Slimline and round bodies with molded inlet and overflow positions for a downspout.

1 of 2

All 23 rainwater tanks at 300 gallons

Every size of rainwater tanks, or call 866-418-1777 for the one you need.

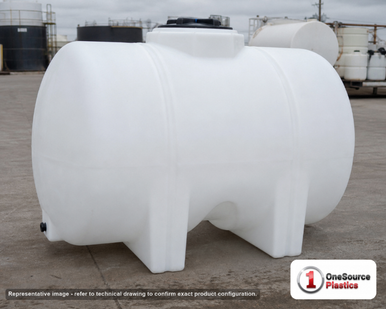

Horizontal leg tanks

22 at 300 gallons

Horizontal tanks on molded saddle legs for truck beds, trailers and skids.

1 of 2

All 22 horizontal leg tanks at 300 gallons

Every size of horizontal leg tanks, or call 866-418-1777 for the one you need.

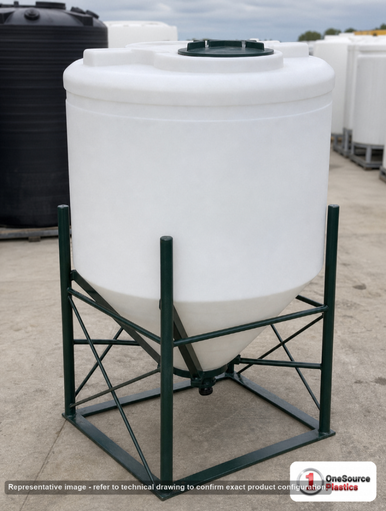

Cone bottom tanks

9 at 300 gallons

Full-drain cone bottoms on a stand, for mixing and complete drawdown.

All 9 cone bottom tanks at 300 gallons

Every size of cone bottom tanks, or call 866-418-1777 for the one you need.

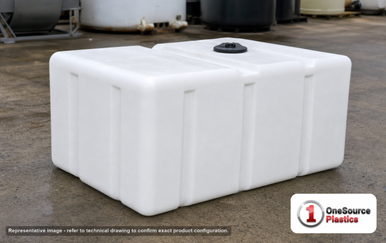

Loaf, utility and low-profile tanks

3 at 300 gallons

Low, flat bodies for vehicle and skid mounting.

All 3 loaf, utility and low-profile tanks at 300 gallons

Every size of loaf, utility and low-profile tanks, or call 866-418-1777 for the one you need.

Septic and holding tanks

8 at 300 gallons

Below-grade holding and septic vessels; a different job at the same capacity.

All 8 septic and holding tanks at 300 gallons

Every size of septic and holding tanks, or call 866-418-1777 for the one you need.

Storage tanks

6 at 300 gallons

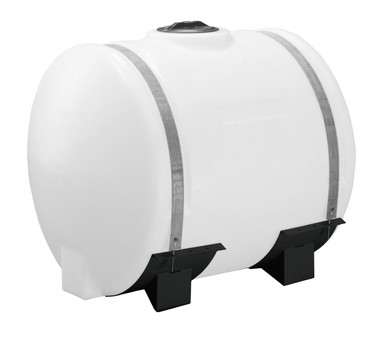

Specialty bodies at 300 gallons: sprayer, applicator and transport shapes.

All 6 storage tanks at 300 gallons

Every size of storage tanks, or call 866-418-1777 for the one you need.

The shapes, and when each one is right

Forty-one verticals lead the page: Norwesco's 35 by 79 inch mold with the 16 inch manway, and Snyder, Chem-Tainer and Enduraplas versions in natural, black, blue and green. The manway size is worth a look at this capacity; a 16 inch opening is the difference between cleaning a tank and replacing it.

Horizontal leg tanks, 22 of them, are the vehicle and skid shape, with molded saddles, a fill on top and a drain at one end. Rainwater bodies from Bushman put the inlet and overflow where a downspout lands. Cone bottoms drain to the last gallon on a stand, and the holding tanks are below-grade vessels for a cabin or a lift station.

Listed prices run 619 to 3,799 dollars before freight across the 112, driven by shape first and wall rating second. Fifty-four of these tanks list NSF/ANSI 61; if the water is for drinking, filter on that first.

Side by side, from the manufacturer records

Every cell is read from the live product record. Prices are list, before freight.
TankTypeResinWall ratingMax tempManwayCertifications listedWarrantyFreight classShip weightShip sizeListed
Vertical Liquid Storage Tank - Natural White (35" x 79") #40213VerticalPolyethylene (HDPE)SG 1.5120 F16" Threaded Vented Manwaynone listed3-year limited (full replacement) per Norwesco liquid storage catalog 2024LTL79 lb35" L x 35" W x 79" H$800

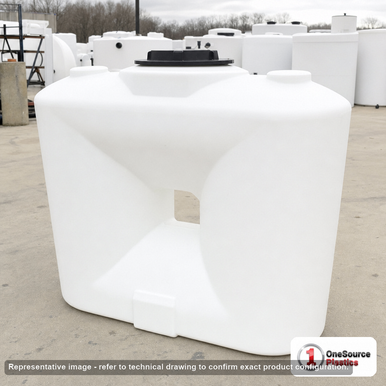

Doorway Water Tank - White (29" x 50")RainwaterPolyethylene (HDPE)SG 1.5120 F16" Threaded Vented ManwayFDA-compliant resin, UV Stabilized3 YearLTL129 lb66" L x 29" W x 50" H$1,100

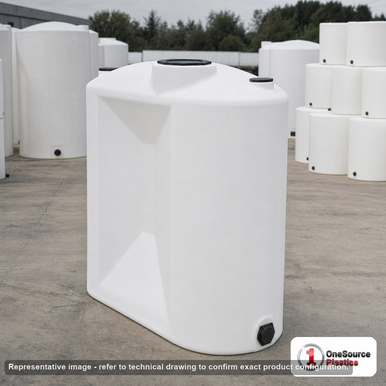

Doorway Water Tank - White (25" x 65")RainwaterPolyethylene (HDPE)SG 1.5120 F16" Threaded Vented ManwayFDA-compliant resin, UV Stabilized3 YearLTL129 lb59" L x 25" W x 65" H$930

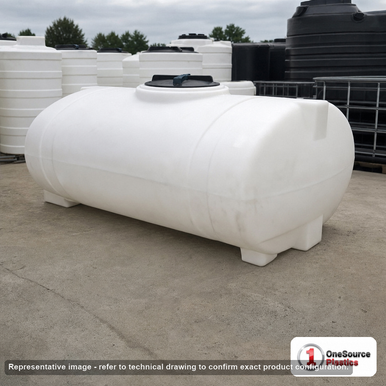

Horizontal Elliptical Cradle Tank in WhiteHorizontal legPolyethyleneSG 1.5120 F16" Threaded Vented ManwayFDA-compliant resin3 Year WarrantyLTL, NMFC 156600-02114 lb70" L x 48" W x 36" H$899
Horizontal Leg TankHorizontal legPolyethyleneSG 1.516" Vented ManwayFDA-compliant resin3 Year Warranty300100 lb73" L x 37" W x 42" H$959

Scroll the table sideways; the tank name stays put.

Get the real freight for the shape you pickedFreight cost estimator

What 300 gallons is on the ground

Taller than you are. The 35 inch Norwesco vertical stands 79 inches, 7 inches over a 72 inch person, and still clears a 96 inch ceiling with the manway open. It will not pass a 36 inch doorway upright; the slimline and loaf shapes on this page will.

A 35 inch circle of floor. The vertical's base is 35 inches across, under 7 square feet. A patio slab, a compacted gravel bed or a shop floor carries it, with the whole bottom supported; forms and rebar are not part of a 300 gallon install.

Water alone weighs 2,502 pounds. Multiply 300 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 3,753 pounds, and the 1.9 walls up to 4,754 pounds. On a trailer that is most of a half-ton truck's payload sitting over one axle.

96 in ceiling79 inthis tank, 35 in across6 ft person80 in doorpickup, 76 in tall

Choosing by what you will store

Potable and process water

Fifty-four of the 112 list NSF/ANSI 61 or FDA compliant resin. Natural white reads its level by eye; black keeps algae down outdoors. The comparison table shows which tanks carry the listing.

Browse potable and process water tanks

Rainwater harvesting

A 300 gallon tank catches an inch of rain from a 480 square foot roof section. The Bushman rainwater bodies take the downspout directly; add a first-flush diverter and a screen and the tank stays clean.

Browse rainwater harvesting tanks

Chemicals, fertilizer and brine

Liquids heavier than water are what the 1.9 specific gravity walls are for. Check the liquid against the chemical tank recommender; the wrong resin at 300 gallons is a costly lesson.

Browse chemicals, fertilizer and brine tanks

Vehicles and skids

A horizontal leg tank carries 300 gallons low on molded saddles, strapped at the molded points. Full, that is over 2,500 pounds of water; check the trailer and the hitch rating before the tank.

Browse vehicles and skids tanks

See it move

Dimensions, fittings and shipping notes for the 300 Gallon Vertical Liquid Storage Tank - Natural White (35" x 79") #40213. Every tank on this page has its own.

Videos and drawings

Getting it to your site, honestly

Every 300 gallon tank ships LTL freight; the freight class on each card runs from 100 for dense shapes to 400 for the tall light verticals. Listed prices are before freight.

Five makers means plants across the country, listed on each product page. The freight cost estimator picks the right origin for the tank you choose and quotes your ZIP with a real LTL number.

The honest limitation: a class 400 vertical is a big, light box that trucks charge for by the space it takes. If two tanks are close on specs, the denser shape or the nearer plant wins on the estimator, and we will tell you which.

What the carrier sees

Freight class
100, 125, 250, 300, 400, LTL, UPS
NMFC
-
Ship size
35" L x 35" W x 79" H
Ship weight
79 lb
Ships from
Albertville, AL; Brigham City, Utah; Burnet, Texas; Chowchilla, California; Fairfield, Texas; Griffin, Georgia; Hanford, California; Hummelstown, PA; Lancaster, Ohio; Lincoln, Nebraska; Marked Tree, AR; Merced, California; Neche, ND; Owego, New York; Petersburg, Texas; Philippi, WV; Shawnee, Oklahoma; Sheldon, IA; St. Bonifacius, Minnesota; Tooele, Utah; Washington Court House, Ohio; Washougal, Washington
  • Flatbed or step-deck; the driver does not unload.
  • You need a forklift with long forks or a crane with soft slings.
  • Listed prices are before freight. The quote is per ZIP and per lane.
Get freight to my ZIP

Standards the manufacturers list

ASTM D1998, Standard Specification for Polyethylene Upright Storage Tanks, is the construction standard the verticals are built to; it sets wall thickness by specific gravity rating.

NSF/ANSI 61, Drinking Water System Components, and FDA 21 CFR 177.1520 for the olefin polymers are listed by the makers on 54 of these tanks. We print what each maker lists for each tank and nothing stronger.

  • FDA-compliant resinListed by the maker on 67 of 112: Doorway Water Tank - White (25" x 65"), Green Doorway Water Tank, Doorway Water Tank - White (29" x 50"), Doorway Water Tank - Natural White (29" x 50"), Plastic Water Storage Tank - Black (35" x 89"), Plastic Water Storage Tank - Black (46" x 50") and 61 more.
  • NSF 61Listed by the maker on 33 of 112: Doorway Water Tank - Natural White (29" x 50"), Vertical Liquid Storage Tank - Natural White (35" x 79") #45876, Above Ground Septic Job Shack Holding Tank, Snyder Septic Pump Tank, Doorway Tank, Black Vertical Water Storage Tank and 27 more.
  • FDA approvedListed by the maker on 17 of 112: Plastic Vertical Water Storage Tank in Green, Plastic Horizontal Leg Tank, Plastic Vertical Water Storage Tank in Black, Plastic Vertical Water Storage Tank in Green, Plastic Vertical Water Storage Tank in Green, Plastic Vertical Water Storage Tank in Mocha and 11 more.
  • ANSI/NSF 61 approvedListed by the maker on 17 of 112: Plastic Vertical Water Storage Tank in Green, Plastic Horizontal Leg Tank, Plastic Vertical Water Storage Tank in Black, Plastic Vertical Water Storage Tank in Green, Plastic Vertical Water Storage Tank in Green, Plastic Vertical Water Storage Tank in Mocha and 11 more.
  • UV StabilizedListed by the maker on 5 of 112: Doorway Water Tank - White (25" x 65"), Green Doorway Water Tank, Doorway Water Tank - White (29" x 50"), Plastic Water Storage Tank - Black (35" x 89"), Plastic Water Storage Tank - Black (46" x 50").
  • ANSI / NSF 61 ApprovedListed by the maker on 3 of 112: XLPE Horizontal Leg Tank, Above Ground Septic Holding Tank, HDPE Vertical Liquid Storage Tank.
  • ASTMListed by the maker on 3 of 112: HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification.

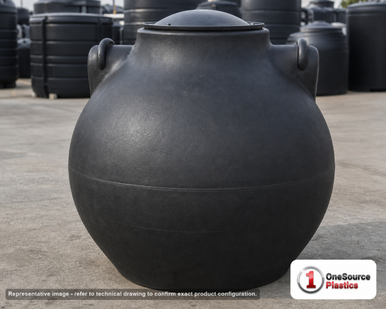

  • ANSI / NSF 61Listed by the maker on 1 of 112: Septic Pump Tank.

Install day

Set the tank on a flat surface that supports the whole bottom; cone bottoms go on their stand, bolted down. Leave the threaded vented manway as the vent unless you add a dedicated one, and never seal it under a pump suction.

Fit bulkheads at the molded flats with the gasket on the wet side, pipe with a flexible connection, and support the pipe so the tank never carries it. Keep the drawing on the job; the 3D model on this page is traced from the hero tank's own drawing.

Tools: tank sizing calculator, chemical tank recommender, state regulations. Related: all Snyder tanks, vertical tanks, 10,000 gallon tanks.

Questions we get about 300 gallon tanks

How much does a 300 gallon plastic tank cost?

Listed at 619 to 3,799 dollars before freight on this page. Plain verticals sit at the bottom of the range; cone bottoms with stands and specialty rig tanks sit at the top.

Which 300 gallon tank fits through a door?

Not the 35 inch vertical upright. The slimline rainwater bodies and the loaf shapes do; the dimensions on each card tell you.

Which ones are rated for drinking water?

The 54 that list NSF/ANSI 61 or FDA compliant resin; the comparison table and each card show the listing.

Why does the manway size matter?

A 16 inch manway lets you clean, inspect and fit a float; an 8 inch lid does not. At 300 gallons both exist on this page, and the card shows which you are getting.

Ready to pick one?

Call 866-418-1777 and talk to a tank specialist, run the freight cost estimator for a real quote to your ZIP, or let Find My Tank narrow it by what you store and where it goes.
