1,300 Gallon Tanks
1,300 Gallon Tanks
Thirteen hundred gallons is a Snyder size: eleven verticals and two rainwater bodies, all on 60 inch molds, from a 1.0 water wall to a 1.9 crosslinked heavy duty wall. Spin the vertical below, compare the walls, and get freight to your ZIP before you decide.
- 13
- tanks at 1,300 gallons
- 60 in
- across
- 114 in
- tall
- 1 to 1.9
- wall rating, specific gravity
Listed from $2,100 before freight. Call 866-418-1777 to talk through the choice.
114inches tall. Nine and a half feet.
The 60 inch Snyder vertical stands 114 inches, past any 96 inch ceiling, so it lives outdoors or in a high bay. The 20 inch manway sits well above head height; plan a platform for it.
10,842pounds of water when full. Water alone weighs 10,842 pounds.
Multiply 1,300 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 16,263 pounds, and the 1.9 walls up to 20,600 pounds. Size the pad for the liquid you will actually store.
The 13 tanks
Start with the wall. Resin sets what the tank can hold and how hot; the specific gravity rating sets how heavy a liquid the wall is built for. Pick a cell to narrow the list.
Vertical tanks
11 at 1,300 gallonsSnyder verticals on a 60 inch mold, 1.0 to 1.9 walls, 20 inch threaded vented manway.

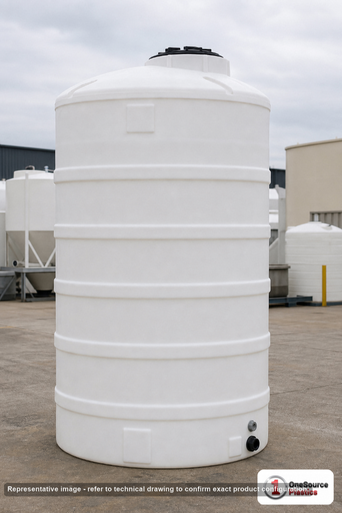

- 3DSnyder Industries 1300 Gallon Plastic Vertical Liquid Storage Tank in WhiteSnyder, White, 20" Threaded Vented Manway
- Wall rating
- SG 1.5
- Max temp
- 120 F
- Ships
- 224 lb
$2,500list, before freightVideoDrawing (PDF)High Density Linear Polyethylene, freight class OVS. Listed: FDA approved, ANSI/NSF 61 approved

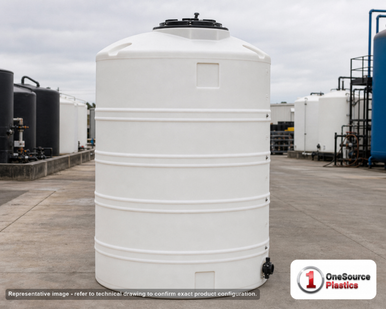

3D1300 Gallon Plastic Vertical Chemical Storage Tank in WhiteSnyder, White, 20" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- -
- Ships
- 269 lb
$2,901list, before freightVideoDrawing (PDF)High Density Linear Polyethylene. Listed: FDA-compliant resin, ANSI / NSF 61 Approved

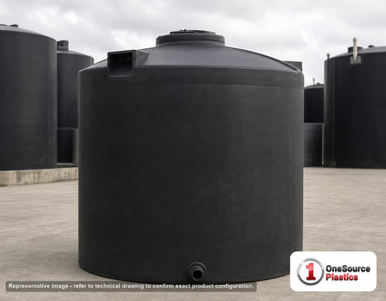

Snyder Industries 1300 Gallon ASTM Black Vertical Storage TankSnyder, Black, 18" Threaded Vented Manway- Wall rating
- SG 1.5
- Max temp
- 120 F
- Ships
- 290 lb
$3,079list, before freightVideoDrawing (PDF)Polyethylene, freight class 300, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61

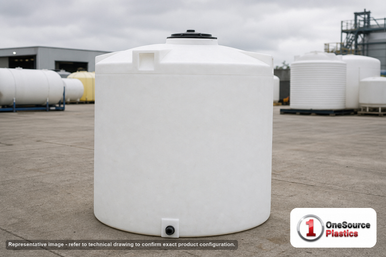

Snyder Industries 1300 Gallon HDPE Vertical Liquid Storage Tank with ASTM CertificationSnyder, White, 18" Threaded Vented Manway- Wall rating
- SG 1.5
- Max temp
- 120 F
- Ships
- 345 lb
$3,081list, before freightVideoDrawing (PDF)Polyethylene, freight class LTL, warranty 3 Year Warranty. Listed: ASTM, FDA approved, ANSI/NSF 61 approved

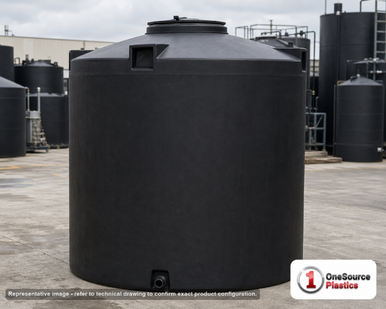

Snyder Industries 1300 Gallon ASTM Black Heavy Duty Vertical Storage TankSnyder, Black, 18" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- 120 F
- Ships
- 320 lb
$3,339list, before freightVideoDrawing (PDF)High Density Linear Polyethylene, freight class 300, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61

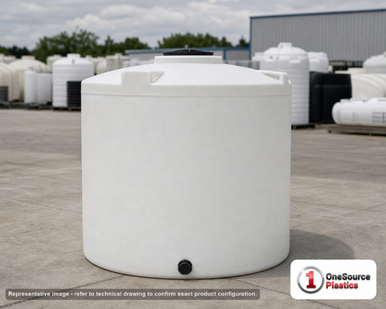

3DSnyder Industries 1300 Gallon HDPE Vertical Liquid Storage Tank with ASTM CertificationSnyder, White, 18" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- 120 F
- Ships
- 320 lb
$3,341list, before freightVideoDrawing (PDF)Polyethylene, freight class LTL, warranty 3 Year Warranty. Listed: ASTM, FDA approved, ANSI/NSF 61 approved

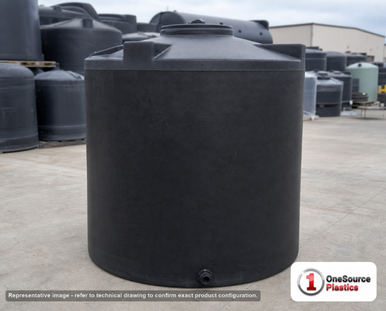

Snyder Industries 1300 Gallon ASTM XLPE Black Vertical Storage TankSnyder, Black, 18" Threaded Vented Manway- Wall rating
- SG 1.5
- Max temp
- 140 F
- Ships
- 290 lb
$3,819list, before freightVideoDrawing (PDF)Crosslinked Linear Polyethylene, freight class 300, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61

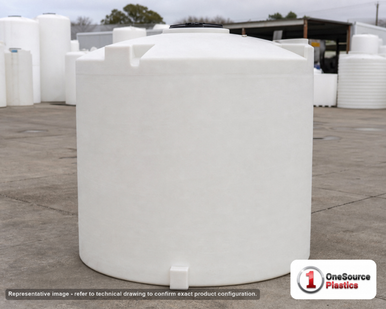

Snyder Industries 1300 Gallon ASTM XLPE Vertical Storage TankSnyder, Natural White, 18" Threaded Vented Manway- Wall rating
- SG 1.5
- Max temp
- 140 F
- Ships
- 290 lb
$3,819list, before freightVideoDrawing (PDF)Crosslinked Linear Polyethylene, freight class 300, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61
All 11 vertical tanks at 1,300 gallons
Every size of vertical tanks, or call 866-418-1777 for the one you need.
Rainwater tanks
2 at 1,300 gallonsSnyder rainwater bodies with molded inlet and overflow positions.

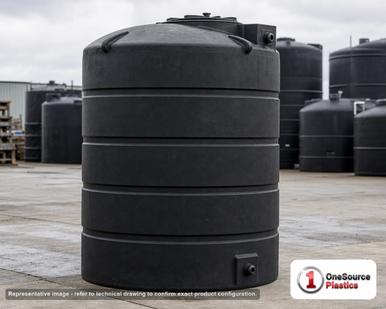

3DSnyder Industries 1300 Gallon Plastic Vertical Water Storage Tank in BlackSnyder, Black, 20" Threaded Vented Manway- Wall rating
- SG 1
- Max temp
- 120 F
- Ships
- 194 lb
$2,100list, before freight

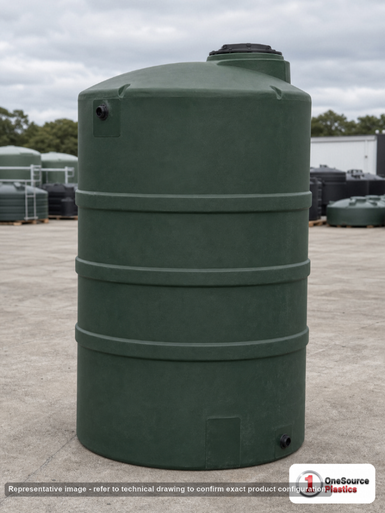

3DSnyder Industries 1300 Gallon Plastic Vertical Water Storage Tank in GreenSnyder, Green, 20" Threaded Vented Manway- Wall rating
- SG 1
- Max temp
- 120 F
- Ships
- 194 lb
$2,100list, before freight
Every size of rainwater tanks, or call 866-418-1777 for the one you need.
The thirteen tanks, and how they differ
Every tank here is Snyder on a 60 inch diameter. The verticals run from a 1.0 wall rated for water only, through 1.5 linear polyethylene, to 1.9 crosslinked heavy duty walls that take 140 degrees F and chemical service. Listed prices run 2,099 to 5,779 dollars before freight, and the wall is what you are paying for.
The two rainwater bodies carry molded inlet and overflow positions and the same 60 inch footprint. Twelve of the thirteen list NSF/ANSI 61 or FDA compliant resin; the one that does not is a chemical-service wall.
If the liquid is water at a specific gravity of 1.0, the 1.5 wall is a wide margin and the 1.0 wall is the value buy. Fertilizer, brine, and anything hotter than 120 degrees F or harder on resin is what the crosslinked 1.9 tank is for.
Side by side, from the manufacturer records
| Tank | Type | Resin | Wall rating | Max temp | Manway | Certifications listed | Warranty | Freight class | Ship weight | Ship size | Listed |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Plastic Vertical Liquid Storage Tank in White | Vertical | High Density Linear Polyethylene | SG 1.5 | 120 F | 20" Threaded Vented Manway | FDA approved, ANSI/NSF 61 approved | OVS, NMFC 156600 | 224 lb | 114" L x 60" W x 60" H | $2,500 | |
| Plastic Vertical Chemical Storage Tank in White | Vertical | High Density Linear Polyethylene | SG 1.9 | 20" Threaded Vented Manway | FDA-compliant resin, ANSI / NSF 61 Approved | 269 lb | 102" L x 60" W x 60" H | $2,901 | |||
| ASTM Black Vertical Storage Tank | Vertical | Polyethylene | SG 1.5 | 120 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 300 | 290 lb | 72" L x 72" W x 87" H | $3,079 |
| HDPE Vertical Liquid Storage Tank with ASTM Certification | Vertical | Polyethylene | SG 1.5 | 120 F | 18" Threaded Vented Manway | ASTM, FDA approved, ANSI/NSF 61 approved | 3 Year Warranty | LTL, NMFC 156600-01 | 345 lb | 60" L x 137" W x 137" H | $3,081 |
| ASTM Black Heavy Duty Vertical Storage Tank | Vertical | High Density Linear Polyethylene | SG 1.9 | 120 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 300 | 320 lb | 72" L x 72" W x 87" H | $3,339 |
| HDPE Vertical Liquid Storage Tank with ASTM Certification | Vertical | Polyethylene | SG 1.9 | 120 F | 18" Threaded Vented Manway | ASTM, FDA approved, ANSI/NSF 61 approved | 3 Year Warranty | LTL | 320 lb | 72" L x 87" W x 87" H | $3,341 |
| ASTM XLPE Black Vertical Storage Tank | Vertical | Crosslinked Linear Polyethylene | SG 1.5 | 140 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 300 | 290 lb | 72" L x 72" W x 87" H | $3,819 |
| ASTM XLPE Vertical Storage Tank | Vertical | Crosslinked Linear Polyethylene | SG 1.5 | 140 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 300 | 290 lb | 72" L x 72" W x 87" H | $3,819 |
| Plastic Vertical Water Storage Tank in Black | Rainwater | Polyethylene | SG 1 | 120 F | 20" Threaded Vented Manway | FDA approved, ANSI/NSF 61 approved | LTL, NMFC 156600-01 | 194 lb | 114" L x 60" W x 60" H | $2,100 | |
| Plastic Vertical Water Storage Tank in Green | Rainwater | Polyethylene | SG 1 | 120 F | 20" Threaded Vented Manway | FDA approved, ANSI/NSF 61 approved | LTL, NMFC 156600-01 | 194 lb | 114" L x 60" W x 60" H | $2,100 |
Scroll the table sideways; the tank name stays put.
What 1,300 gallons is on the ground
Nine and a half feet. The 60 inch Snyder vertical stands 114 inches, past any 96 inch ceiling, so it lives outdoors or in a high bay. The 20 inch manway sits well above head height; plan a platform for it.
A 5 foot circle of pad. The base is 60 inches across, just under 20 square feet. Snyder requires the full bottom on a flat, level, compacted surface: a slab, a leveled ring of compacted crushed rock, or a steel ring filled and screeded.
Water alone weighs 10,842 pounds. Multiply 1,300 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 16,263 pounds, and the 1.9 walls up to 20,600 pounds. Size the pad for the liquid you will actually store.
Choosing by what you will store
Potable and process water
Twelve of the thirteen list NSF/ANSI 61 or FDA compliant resin. White reads its level by eye; black keeps algae down in the sun. The comparison table shows which tank carries which listing.
Browse potable and process water tanksRainwater harvesting
A 1,300 gallon tank catches an inch of rain from a 2,000 square foot roof, a whole house. The two rainwater bodies take the downspout; add a first-flush diverter and a screen.
Browse rainwater harvesting tanksFertilizer, brine and chemicals
Liquids heavier than water are what the 1.9 specific gravity walls are for, and crosslinked resin takes the heat and the chemistry linear resin cannot. Check the liquid against the chemical tank recommender first.
Browse fertilizer, brine and chemicals tanksFire reserve
Rural sites keep a draft tank, and 1,300 gallons is a common figure for a small sprinkler or hydrant reserve. Confirm the standard your authority having jurisdiction enforces before you order.
Browse fire reserve tanksSee it move
Dimensions, fittings and shipping notes for the Snyder Industries 1300 Gallon Plastic Vertical Liquid Storage Tank in White. Every tank on this page has its own.
Videos and drawings
- Plastic Vertical Liquid Storage Tank in WhiteVideo, Drawing
- Plastic Vertical Chemical Storage Tank in WhiteVideo, Drawing
- ASTM Black Vertical Storage TankVideo, Drawing
- HDPE Vertical Liquid Storage Tank with ASTM CertificationVideo, Drawing
- ASTM Black Heavy Duty Vertical Storage TankVideo, Drawing
- HDPE Vertical Liquid Storage Tank with ASTM CertificationVideo, Drawing
- ASTM XLPE Black Vertical Storage TankVideo, Drawing
- ASTM XLPE Vertical Storage TankVideo, Drawing
- Plastic Vertical Water Storage Tank in BlackVideo, Drawing
- Plastic Vertical Water Storage Tank in GreenVideo, Drawing
Getting it to your site, honestly
A 1,300 gallon vertical is 114 inches tall on the trailer, which is why the freight class reads 300 or OVS. It ships LTL on a flatbed from Snyder's plant, and the driver does not unload it; a forklift or three people and a plan do.
Listed prices are before freight. Put your ZIP in the freight cost estimator and you get a real LTL quote for this class and weight, the same number our team sees.
The honest limitation: a tall, light tank is charged for the space it takes. On a long lane freight can rival a third of the tank's price, and the estimator will show it before you commit.
What the carrier sees
- Freight class
- 300, LTL, OVS
- NMFC
- 156600
- Ship size
- 114" L x 60" W x 60" H
- Ship weight
- 224 lb
- Ships from
- Chowchilla, California; Merced, California
- Flatbed or step-deck; the driver does not unload.
- You need a forklift with long forks or a crane with soft slings.
- Listed prices are before freight. The quote is per ZIP and per lane.
Standards the manufacturer lists
ASTM D1998, Standard Specification for Polyethylene Upright Storage Tanks, is the construction standard for these molds; it sets wall thickness by specific gravity rating.
NSF/ANSI 61, Drinking Water System Components, and FDA 21 CFR 177.1520 for the olefin polymers are listed by Snyder on twelve of the thirteen. We print what Snyder lists for each tank and nothing stronger.
- FDA-compliant resinListed by the maker on 8 of 13: HDLPE Vertical Liquid Storage Tank Opaque Resin, ASTM XLPE Black Heavy Duty Vertical Storage Tank, ASTM XLPE Black Vertical Storage Tank, ASTM XLPE Heavy Duty Vertical Storage Tank, ASTM XLPE Vertical Storage Tank, ASTM Black Heavy Duty Vertical Storage Tank and 2 more.
- NSF 61Listed by the maker on 6 of 13: ASTM XLPE Black Heavy Duty Vertical Storage Tank, ASTM XLPE Black Vertical Storage Tank, ASTM XLPE Heavy Duty Vertical Storage Tank, ASTM XLPE Vertical Storage Tank, ASTM Black Heavy Duty Vertical Storage Tank, ASTM Black Vertical Storage Tank.
- FDA approvedListed by the maker on 5 of 13: Plastic Vertical Water Storage Tank in Black, Plastic Vertical Water Storage Tank in Green, Plastic Vertical Liquid Storage Tank in White, HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification.
- ANSI/NSF 61 approvedListed by the maker on 5 of 13: Plastic Vertical Water Storage Tank in Black, Plastic Vertical Water Storage Tank in Green, Plastic Vertical Liquid Storage Tank in White, HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification.
- ASTMListed by the maker on 2 of 13: HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification.
- ANSI / NSF 61 ApprovedListed by the maker on 1 of 13: Plastic Vertical Chemical Storage Tank in White.
Install day
Set the tank on the finished pad with the manway reachable from a platform. Leave the 20 inch threaded vented manway as the vent unless you add a dedicated one, and never seal it under a pump suction.
Pipe every fitting with a flexible connection and support the pipe independently. Keep the drawing on the job; the 3D model on this page is traced from the hero tank's own drawing.
Tools: tank sizing calculator, chemical tank recommender, state regulations. Related: all Snyder tanks, vertical tanks, 10,000 gallon tanks.
Questions we get about 1,300 gallon tanks
How much does a 1,300 gallon plastic tank cost?
Listed at 2,099 to 5,779 dollars before freight on this page, by wall rating and resin. Freight is quoted separately to your ZIP.
What is the 1.0 wall for?
Water only, at its own density. It is the lightest and cheapest wall on the page; buy the 1.5 or 1.9 for anything heavier or for a tank that will sit full in the sun for years.
Which ones are rated for drinking water?
Twelve of the thirteen list NSF/ANSI 61 or FDA compliant resin; the comparison table and each card show the listing.
HDPE or XLPE?
Crosslinked polyethylene costs more and takes heat to 140 degrees F and harder chemical service; linear resin is rated to 120 degrees F and is the value choice for water.
Ready to size it?
Call 866-418-1777 and talk to a tank specialist, run the freight cost estimator for a real quote to your ZIP, or let Find My Tank narrow it by what you store and where it goes.
