750 Gallon Tanks

750 Gallon Tanks

Seven hundred fifty gallons is where a tank stops being something two people carry. Nineteen verticals, seven rainwater bodies, six cone bottoms, six holding tanks, leg tanks and loafs from Norwesco, Snyder, Chem-Tainer and Enduraplas. Spin the vertical below, then pick by shape.

46
tanks at 750 gallons
48 in
across
103 in
tall
1 to 2.0
wall rating, specific gravity
Get freight to my ZIPSee the 46 tanks

Listed from $1,156 before freight. Call 866-418-1777 to talk through the choice.

750 Gallon Vertical Liquid Storage Tank - Natural White (48" x 103")

103inches tall. Over a tall man's reach.

The 48 inch Norwesco vertical stands 103 inches, well past a 96 inch ceiling, so this is an outdoor or high-bay tank. The 16 inch manway sits above head height; plan a step or a platform for it.

6,255pounds of water when full. Water alone weighs 6,255 pounds.

Multiply 750 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 9,383 pounds, and the 1.9 walls up to 11,885 pounds. That is a pickup's gross weight standing on 12 square feet.

Drag to fill the tank
See it in your space 3D traced from the manufacturer drawing
From $1,156list, before freightGet freight to my ZIP

The 46 tanks

Start with the wall. Resin sets what the tank can hold and how hot; the specific gravity rating sets how heavy a liquid the wall is built for. Pick a cell to narrow the list.

Vertical tanks

19 at 750 gallons

Closed cylinders with a threaded vented manway; fittings low on the wall.

1 of 3

All 19 vertical tanks at 750 gallons

Every size of vertical tanks, or call 866-418-1777 for the one you need.

Rainwater tanks

7 at 750 gallons

Round and slimline bodies with molded inlet and overflow positions for a downspout.

1 of 2

All 7 rainwater tanks at 750 gallons

Every size of rainwater tanks, or call 866-418-1777 for the one you need.

Horizontal leg tanks

3 at 750 gallons

Horizontal tanks on molded saddle legs for trailers and skids.

1 of 2

All 3 horizontal leg tanks at 750 gallons

Every size of horizontal leg tanks, or call 866-418-1777 for the one you need.

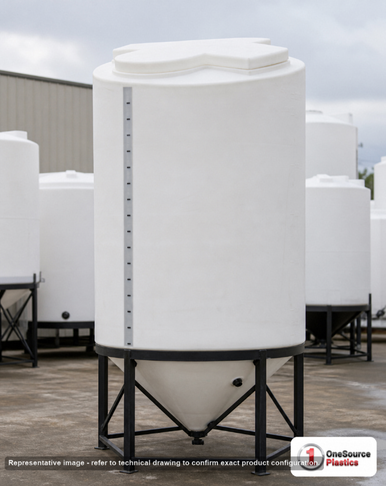

Cone bottom tanks

6 at 750 gallons

Full-drain cone bottoms on a stand, for mixing and complete drawdown.

1 of 2

All 6 cone bottom tanks at 750 gallons

Every size of cone bottom tanks, or call 866-418-1777 for the one you need.

Loaf, utility and low-profile tanks

1 at 750 gallons

Low, flat bodies for vehicle and skid mounting.

1 of 1

Every size of loaf, utility and low-profile tanks, or call 866-418-1777 for the one you need.

Septic and holding tanks

6 at 750 gallons

Below-grade holding and septic vessels with risers.

1 of 2

All 6 septic and holding tanks at 750 gallons

Every size of septic and holding tanks, or call 866-418-1777 for the one you need.

Storage tanks

4 at 750 gallons

Specialty bodies at 750 gallons.

1 of 2

All 4 storage tanks at 750 gallons

Every size of storage tanks, or call 866-418-1777 for the one you need.

The shapes, and when each one is right

Nineteen verticals lead: Norwesco's 48 by 103 inch mold with the 16 inch manway, Snyder's and Chem-Tainer's own molds, in natural, black, blue and green, with 1.5 and 1.9 walls. The comparison table puts manway, rating and resin side by side.

Cone bottoms drain to the last gallon on a stand, the shape for mixing and anything you cannot leave in the tank. Holding and septic tanks, six of them, are below-grade vessels with risers. Rainwater bodies take a downspout. The few leg tanks and the loaf are the vehicle shapes, and at 750 gallons that is a trailer, not a pickup.

Listed prices run 1,156 to 6,157 dollars before freight across the 46. Sixteen list NSF/ANSI 61; if the water is for drinking, filter on that first.

Side by side, from the manufacturer records

Every cell is read from the live product record. Prices are list, before freight.
TankTypeResinWall ratingMax tempManwayCertifications listedWarrantyFreight classShip weightShip sizeListed
Vertical Liquid Storage Tank - Natural White (48" x 103")VerticalPolyethylene (HDPE)SG 1.5120 F16" Threaded Vented Manwaynone listed3-year limited (full replacement) per Norwesco liquid storage catalog 2024LTL155 lb103" L x 48" W x 48" H$1,349

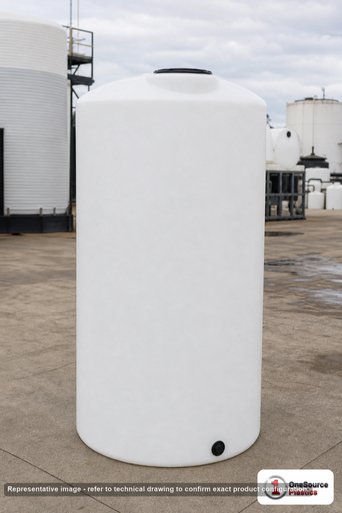

Vertical Storage TankVerticalPolyethyleneSG 1.5120 F16" Threaded Vented ManwayFDA-compliant resin3 Year Warranty300260 lb46" L x 46" W x 119" H$1,909
Plastic Vertical Water Storage Tank in GreenVerticalPolyethyleneSG 1.016 in lidFDA-compliant resin450 lb46" L x 46" W x 119" H$1,156

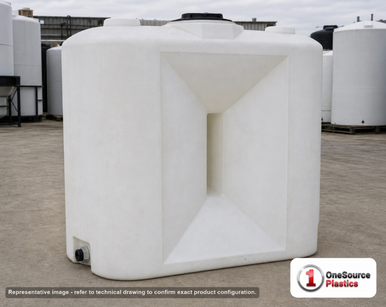

Doorway Water TankRainwaterPolyethylene (HDPE)SG 1.5120 F16" Threaded Vented ManwayFDA-compliant resin, UV Stabilized3 YearLTL409 lb82" L x 35" W x 85" H$1,979

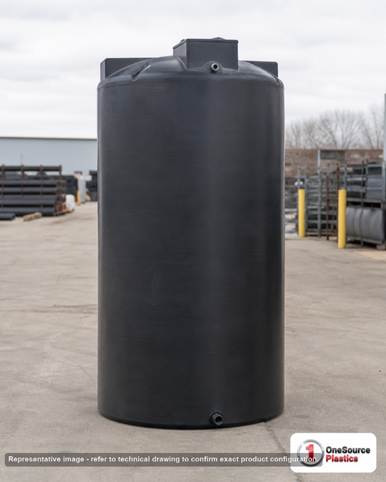

Plastic Vertical Water Storage Tank in BlackRainwaterPolyethyleneSG 1.0120 F16"FDA-compliant resin3 Year WarrantyLTL, NMFC 156600-02150 lb119" L x 46" W x 46" H$1,249

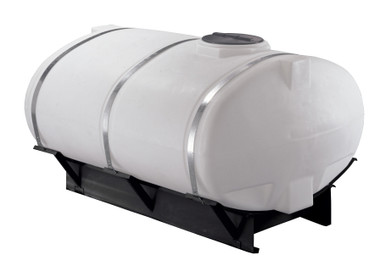

Horizontal Elliptical Cradle Tank in WhiteHorizontal legPolyethyleneSG 1.5120 F16" Threaded Vented ManwayFDA-compliant resinLTL, NMFC 156600-02219 lb88" L x 69" W x 48" H$1,753

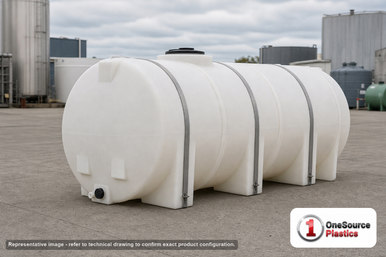

Plastic Horizontal Leg Tank with Securing HoopsHorizontal legPolyethyleneSG 1.9120 F18"ANSI/NSF 61 approved, FDA approvedOVS, NMFC 156600-02210 lb117" L x 46" W x 48" H$2,618

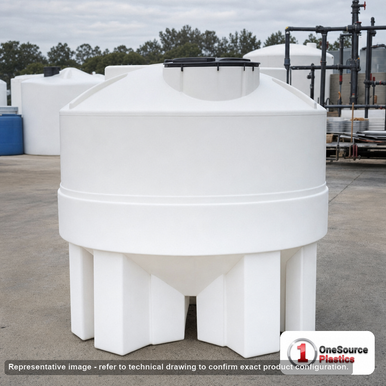

20 Degree Cone Bottom Tank with Poly StandCone bottomPolyethylene (HDPE)SG 1.5120 F16" Threaded Vented ManwayFDA-compliant resin3 YearLTL319 lb73" L x 73" W x 67" H$2,549

Scroll the table sideways; the tank name stays put.

Get the real freight for the shape you pickedFreight cost estimator

What 750 gallons is on the ground

Over a tall man's reach. The 48 inch Norwesco vertical stands 103 inches, well past a 96 inch ceiling, so this is an outdoor or high-bay tank. The 16 inch manway sits above head height; plan a step or a platform for it.

A 4 foot circle of pad. The base is 48 inches across, about 12.5 square feet. A compacted gravel bed or a slab carries it with the whole bottom supported. Forms are optional at this size; a level, compacted base is not.

Water alone weighs 6,255 pounds. Multiply 750 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 9,383 pounds, and the 1.9 walls up to 11,885 pounds. That is a pickup's gross weight standing on 12 square feet.

96 in ceiling103 inthis tank, 48 in across6 ft person80 in doorpickup, 76 in tall

Choosing by what you will store

Potable and process water

Sixteen of the 46 list NSF/ANSI 61 or FDA compliant resin. Natural white reads its level by eye; black keeps algae down outdoors. The comparison table shows which tanks carry the listing.

Browse potable and process water tanks

Rainwater harvesting

A 750 gallon tank catches an inch of rain from a 1,200 square foot roof, most of a small house. The rainwater bodies take the downspout directly; add a first-flush diverter and a screen.

Browse rainwater harvesting tanks

Chemicals, fertilizer and brine

Liquids heavier than water are what the 1.9 specific gravity walls are for. Check the liquid against the chemical tank recommender; at 750 gallons the resin choice is the whole purchase.

Browse chemicals, fertilizer and brine tanks

Below grade

The holding and septic tanks on this page are built to be buried; the storage tanks are not. Do not bury a vertical or a leg tank, whatever the capacity.

Browse below grade tanks

See it move

Dimensions, fittings and shipping notes for the 750 Gallon Vertical Liquid Storage Tank - Natural White (48" x 103"). Every tank on this page has its own.

Videos and drawings

Getting it to your site, honestly

Every 750 gallon tank ships LTL freight, and the tall verticals start to read OVS on some carriers at 103 inches. The freight class on each card runs from 300 to OVS. Listed prices are before freight.

Four makers means plants across the country, listed on each product page. The freight cost estimator picks the right origin for the tank you choose and quotes your ZIP with a real LTL number.

The honest limitation: this is the first size where the driver will not help you unload. Have a forklift, a loader or three people and a plan; a 155 pound tank is light, but it is 8 feet tall and the wind owns it.

What the carrier sees

Freight class
300, 400, LTL, OVS
NMFC
-
Ship size
103" L x 48" W x 48" H
Ship weight
155 lb
Ships from
Albertville, AL; Burnet, Texas; Chowchilla, California; Fairfield, Texas; Griffin, Georgia; Hanford, California; Lancaster, Ohio; Lincoln, Nebraska; Merced, California; Owego, New York; Shawnee, Oklahoma; St. Bonifacius, Minnesota; Tooele, Utah; Washington Court House, Ohio; Washougal, Washington; West Babylon, New York
  • Flatbed or step-deck; the driver does not unload.
  • You need a forklift with long forks or a crane with soft slings.
  • Listed prices are before freight. The quote is per ZIP and per lane.
Get freight to my ZIP

Standards the manufacturers list

ASTM D1998, Standard Specification for Polyethylene Upright Storage Tanks, is the construction standard the verticals are built to; it sets wall thickness by specific gravity rating.

NSF/ANSI 61, Drinking Water System Components, and FDA 21 CFR 177.1520 for the olefin polymers are listed by the makers on 16 of these tanks. We print what each maker lists for each tank and nothing stronger.

  • FDA-compliant resinListed by the maker on 23 of 46: Doorway Water Tank, Plastic Water Storage Tank, Vertical Liquid Storage Tank - Natural White (46" x 107"), 20 Degree Cone Bottom Tank, 20 Degree Cone Bottom Tank with Poly Stand, 45 Degree Cone Bottom Tank and 17 more.
  • FDA approvedListed by the maker on 7 of 46: Plastic Vertical Water Storage Tank in Black, Plastic Vertical Water Storage Tank in Green, Plastic Horizontal Leg Tank with Securing Hoops, Plastic Horizontal Leg Tank with Securing Hoops, Plastic Vertical Chemical Storage Tank in White, HDLPE Vertical Double Wall Liquid Chemical Storage Tank with ASTM Certification and 1 more.
  • ANSI/NSF 61 approvedListed by the maker on 7 of 46: Plastic Vertical Water Storage Tank in Black, Plastic Vertical Water Storage Tank in Green, Plastic Horizontal Leg Tank with Securing Hoops, Plastic Horizontal Leg Tank with Securing Hoops, Plastic Vertical Chemical Storage Tank in White, HDLPE Vertical Double Wall Liquid Chemical Storage Tank with ASTM Certification and 1 more.

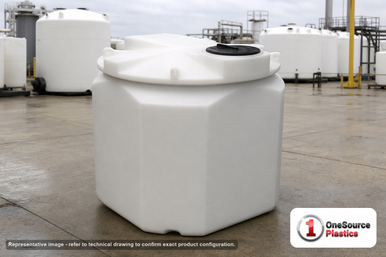

  • NSF 61Listed by the maker on 7 of 46: Sodium Hypochlorite (UV) Double Wall Tank, ASTM XLPE Black Double Wall Tank, Sulfuric Acid Double Wall Tank, ASTM XLPE Double Wall Tank, ASTM Black Double Wall Tank, ASTM XLPE Black Heavy Duty Vertical Storage Tank and 1 more.

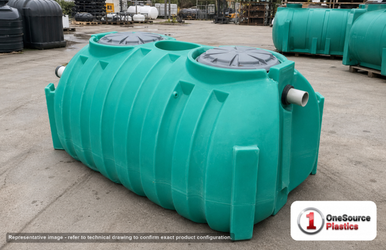

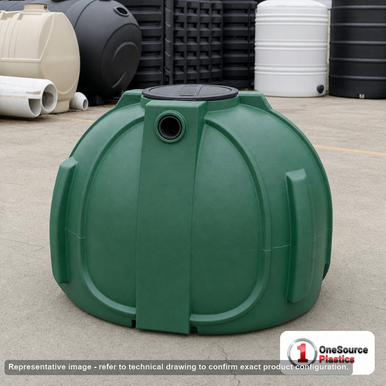

  • IAPMO ApprovedListed by the maker on 6 of 46: Plastic One Compartment Septic Tank with Loose Plumbing and Low Profile Design - IAPMO Certified, Plastic Two Compartment Septic Tank with Loose Plumbing and Low Profile Design - IAPMO Certified, Low Profile Two Compartment Septic Tank IAPMO Certified with Loose Plumbing, Preplumbed One Compartment Septic Tank with Low Profile Design - IAPMO Certified, Two Compartment Septic Tank with Preplumbed and Low Profile Design - IAPMO Certified, Plastic One Compartment Septic Tank - IAPMO Certified.
  • UV StabilizedListed by the maker on 2 of 46: Doorway Water Tank, Plastic Water Storage Tank.

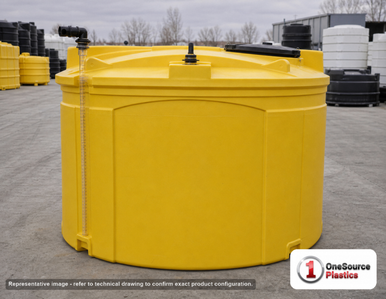

  • NSF-61Listed by the maker on 2 of 46: Used Oil Containment Tank, Used Oil Containment Tank with Level Gauge.

Install day

Set the tank on a level, compacted base that supports the whole bottom; cone bottoms go on their stand, bolted down. Leave the threaded vented manway as the vent unless you add a dedicated one, and never seal it under a pump suction.

Fit bulkheads at the molded flats with the gasket on the wet side, pipe with a flexible connection, and support the pipe so the tank never carries it. Keep the drawing on the job; the 3D model on this page is traced from the hero tank's own drawing.

Tools: tank sizing calculator, chemical tank recommender, state regulations. Related: all Snyder tanks, vertical tanks, 10,000 gallon tanks.

Questions we get about 750 gallon tanks

How much does a 750 gallon plastic tank cost?

Listed at 1,156 to 6,157 dollars before freight on this page. Plain verticals sit at the bottom; cone bottoms with stands and holding tanks with risers sit at the top.

Does a 750 gallon vertical fit indoors?

At 103 inches, not under a 96 inch ceiling. A shop with a high bay, a barn or an outdoor pad does it.

Which ones are rated for drinking water?

The 16 that list NSF/ANSI 61 or FDA compliant resin; the comparison table and each card show the listing.

Can I bury a 750 gallon tank?

Only the holding and septic tanks on this page, which are molded for backfill. Storage verticals and leg tanks are above-ground tanks.

Ready to pick one?

Call 866-418-1777 and talk to a tank specialist, run the freight cost estimator for a real quote to your ZIP, or let Find My Tank narrow it by what you store and where it goes.
