200 Gallon Tanks

200 Gallon Tanks

Two hundred gallons is where every maker shows up with every shape: 48 verticals alone, plus rainwater bodies, horizontal leg tanks, cone bottoms, loafs, open tops and holding tanks from Norwesco, Snyder, Chem-Tainer, Enduraplas, Bushman, Dura-Cast and Ronco. Spin the vertical below, then pick by shape; the highest-demand tanks of each type are on this page.

121
tanks at 200 gallons
30 in
across
72 in
tall
1 to 2.0
wall rating, specific gravity
Get freight to my ZIPSee the 121 tanks

Listed from $490 before freight. Call 866-418-1777 to talk through the choice.

200 Gallon Vertical Liquid Storage Tank - Natural White (30" x 72") #41856

72inches tall. Head high.

The 30 inch Norwesco vertical stands 72 inches, eye to eye with a 72 inch person. It clears a 96 inch ceiling with room for the lid, and it does not fit a 36 inch doorway upright; the doorway and slimline shapes on this page exist for exactly that.

1,668pounds of water when full. Water alone weighs 1,668 pounds.

Multiply 200 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 2,502 pounds, and the 1.9 walls up to 3,169 pounds. Size the floor, the trailer or the stand for the full tank, never the 54 pound empty.

Drag to fill the tank
See it in your space 3D traced from the manufacturer drawing
From $490list, before freightGet freight to my ZIP

The 121 tanks

Listed prices are before freight. Every row links to the full product page; the drawing, video and 3D model sit behind More.

Vertical tanks

48 at 200 gallons

Closed cylinders with a threaded vented lid; fittings low on the wall. Forty-eight to choose from.

1 of 2

All 48 vertical tanks at 200 gallons

Every size of vertical tanks, or call 866-418-1777 for the one you need.

Rainwater tanks

18 at 200 gallons

Slimline and round bodies with molded inlet and overflow positions, built to sit under a downspout.

All 18 rainwater tanks at 200 gallons

Every size of rainwater tanks, or call 866-418-1777 for the one you need.

Horizontal leg tanks

17 at 200 gallons

Horizontal tanks on molded saddle legs for truck beds, trailers and skids.

All 17 horizontal leg tanks at 200 gallons

Every size of horizontal leg tanks, or call 866-418-1777 for the one you need.

Cone bottom tanks

7 at 200 gallons

Full-drain cone bottoms on a stand, for mixing and complete drawdown.

All 7 cone bottom tanks at 200 gallons

Every size of cone bottom tanks, or call 866-418-1777 for the one you need.

Loaf, utility and low-profile tanks

5 at 200 gallons

Low, flat bodies for vehicle and skid mounting.

All 5 loaf, utility and low-profile tanks at 200 gallons

Every size of loaf, utility and low-profile tanks, or call 866-418-1777 for the one you need.

Open top tanks

5 at 200 gallons

Open top batch vessels; polypropylene versions for hot liquids.

All 5 open top tanks at 200 gallons

Every size of open top tanks, or call 866-418-1777 for the one you need.

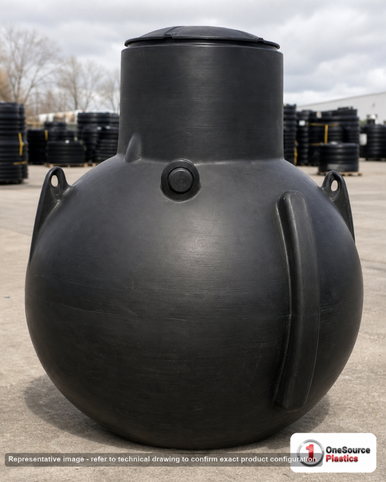

Septic and holding tanks

4 at 200 gallons

Below-grade holding tanks for a cabin or a lift station.

All 4 septic and holding tanks at 200 gallons

Every size of septic and holding tanks, or call 866-418-1777 for the one you need.

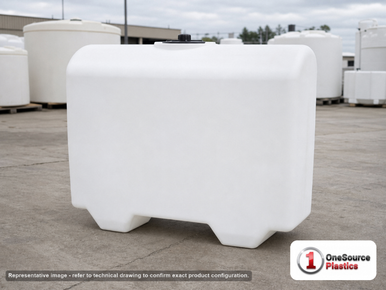

Storage tanks

17 at 200 gallons

Specialty bodies at 200 gallons: sprayer, applicator and transport shapes.

All 17 storage tanks at 200 gallons

Every size of storage tanks, or call 866-418-1777 for the one you need.

The shapes, and when each one is right

The vertical cylinder is the default and the deepest bench: 48 of them here, from Norwesco's 30 by 72 inch mold to Snyder, Chem-Tainer, Enduraplas and Dura-Cast versions in natural, black, blue and green. The comparison table puts their walls, lids and ratings side by side; the wall rating and the resin are the real differences.

Rainwater tanks are Bushman's slimline and round bodies with molded inlet and overflow positions for a downspout. Horizontal leg tanks, 17 of them, lie on saddle legs for truck beds, trailers and skids. Loafs ride even lower.

Cone bottom tanks drain completely through a bottom outlet on a stand; open tops are lidless batch vessels, with polypropylene versions for hot liquids. The holding tanks at this size are below-grade vessels for a cabin or a lift station, a different job that happens to hold 200 gallons.

Listed prices run 490 to 3,532 dollars before freight across the 121, and the shape drives it more than the brand. Forty-five of these tanks list NSF/ANSI 61; if the water is for drinking, filter on that first.

Side by side, from the manufacturer records

Every cell is read from the live product record. Prices are list, before freight.
TankTypeResinWall ratingMax tempManwayCertifications listedWarrantyFreight classShip weightShip sizeListed
Vertical Liquid Storage Tank - Natural White (30" x 72") #41856VerticalPolyethylene (HDPE)SG 1.5120 F8" Threaded Vented Lidnone listed3-year limited (full replacement) per Norwesco liquid storage catalog 2024LTL54 lb30" L x 30" W x 72" H$550
Vertical Liquid Storage Tank - Natural White (30" x 72") #41516VerticalPolyethylene (HDPE)SG 1.5120 F5" Threaded Vented LidFDA-compliant resin3 YearLTL60 lb30" L x 30" W x 72" H$532
Vertical Water Storage Tank in BlackRainwaterPolyethyleneSG 1.1120 F8" Threaded Vented LidFDA-compliant resin3 Year WarrantyLTL, NMFC 156600-0254 lb30" L x 30" W x 72" H$520
Horizontal Elliptical Cradle Tank in WhiteHorizontal legPolyethyleneSG 1.5120 F8" Threaded Vented LidFDA-compliant resinLTL, NMFC 156600-0382 lb66" L x 40" W x 30" H$720
Chem-Tainer Cone Bottom Tank with Poly StandCone bottomPolyethyleneSG 1.98" Threaded Vented LidFDA-compliant resin3 Year Warranty250, NMFC 156600-02105 lb31" L x 31" W x 77" H$1,460

Scroll the table sideways; the tank name stays put.

Get the real freight for the shape you pickedFreight cost estimator

What 200 gallons is on the ground

Head high. The 30 inch Norwesco vertical stands 72 inches, eye to eye with a 72 inch person. It clears a 96 inch ceiling with room for the lid, and it does not fit a 36 inch doorway upright; the doorway and slimline shapes on this page exist for exactly that.

A 30 inch circle of floor. The vertical's base is 30 inches across, about 5 square feet. A patio slab, a compacted gravel bed or a shop floor carries it; the whole bottom must be supported, and that is all the pad work there is.

Water alone weighs 1,668 pounds. Multiply 200 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 2,502 pounds, and the 1.9 walls up to 3,169 pounds. Size the floor, the trailer or the stand for the full tank, never the 54 pound empty.

96 in ceiling72 inthis tank, 30 in across6 ft person80 in doorpickup, 76 in tall

Choosing by what you will store

Potable and process water

Forty-five of the 121 list NSF/ANSI 61 or FDA compliant resin. Natural white reads its level by eye; black keeps algae down in the sun. The comparison table shows which tanks carry the listing.

Browse potable and process water tanks

Rainwater harvesting

A 200 gallon tank catches an inch of rain from a 320 square foot roof section. The Bushman rainwater bodies put the inlet and overflow where a downspout wants them; add a first-flush diverter and a screen.

Browse rainwater harvesting tanks

Chemicals, fertilizer and brine

Liquids heavier than water are what the 1.9 specific gravity walls are for, and the polypropylene open tops take the heat. Check the liquid against the chemical tank recommender; at 200 gallons a wrong resin is an expensive drum.

Browse chemicals, fertilizer and brine tanks

Vehicles and skids

A horizontal leg tank or a loaf carries 200 gallons low and strapped at the molded points. Full, that is over 1,660 pounds on the axle it sits above; check the payload before the tank.

Browse vehicles and skids tanks

See it move

Dimensions, fittings and shipping notes for the 200 Gallon Vertical Liquid Storage Tank - Natural White (30" x 72") #41856. Every tank on this page has its own.

Videos and drawings

  • Vertical Liquid Storage Tank - Natural White (30" x 72") #41856Video, Drawing

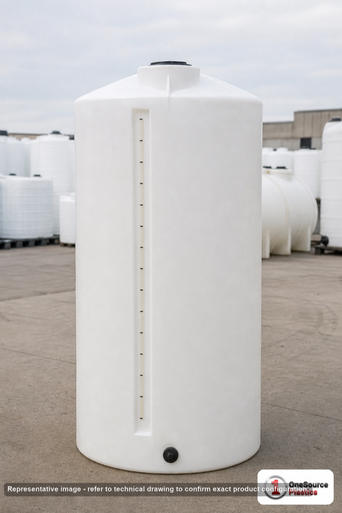

  • Vertical Liquid Storage Tank - Natural White (30" x 72") #41516Video, Drawing

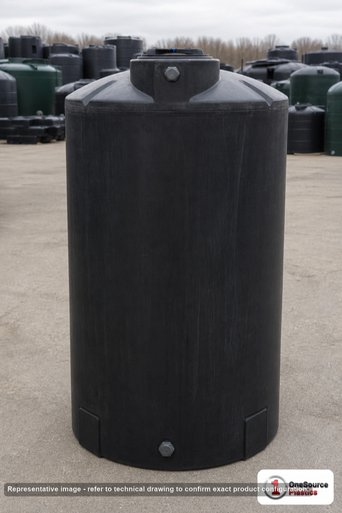

  • Vertical Water Storage Tank in BlackVideo, Drawing

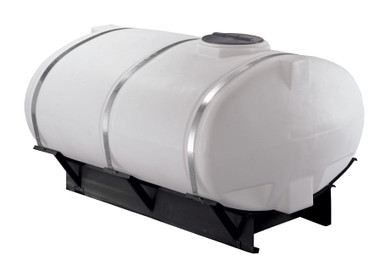

  • Horizontal Elliptical Cradle Tank in WhiteVideo, Drawing
  • Chem-Tainer Cone Bottom Tank with Poly StandVideo, Drawing

Getting it to your site, honestly

Nearly every 200 gallon tank ships LTL freight on a pallet; a few loafs box for parcel. The card for each tank shows its freight class, and listed prices are before freight.

Seven makers means plants across the country, listed on each product page. The freight cost estimator picks the right origin for the tank you choose and quotes your ZIP with a real LTL number, the same one our team sees.

The honest limitation: freight at this size can approach a quarter of the tank's price on a long lane. If two tanks are close on specs, the one molded nearer to you is the better buy, and the estimator shows it.

What the carrier sees

Freight class
250, 300, LTL, UPS
NMFC
-
Ship size
30" L x 30" W x 72" H
Ship weight
54 lb
Ships from
Albertville, AL; Burnet, Texas; Chowchilla, California; Converse, Texas; Fairfield, Texas; Griffin, Georgia; Hanford, California; Hummelstown, PA; Lancaster, Ohio; Lincoln, Nebraska; Marked Tree, AR; Merced, California; Neche, ND; Owego, New York; Philippi, WV; Shawnee, Oklahoma; Sheldon, IA; St. Bonifacius, Minnesota; Tooele, Utah; Washington Court House, Ohio; Washougal, Washington; West Babylon, New York
  • Flatbed or step-deck; the driver does not unload.
  • You need a forklift with long forks or a crane with soft slings.
  • Listed prices are before freight. The quote is per ZIP and per lane.
Get freight to my ZIP

Standards the manufacturers list

ASTM D1998, Standard Specification for Polyethylene Upright Storage Tanks, is the construction standard the verticals are built to; it sets wall thickness by specific gravity rating.

NSF/ANSI 61, Drinking Water System Components, and FDA 21 CFR 177.1520 for the olefin polymers are listed by the makers on 45 of these tanks. We print what each maker lists for each tank and nothing stronger.

  • FDA-compliant resinListed by the maker on 70 of 121: Plastic Water Storage Tank - Black (30" x 72"), Plastic Water Storage Tank - Black (35" x 59"), Vertical Liquid Storage Tank - Natural White (30" x 72") #41516, Applicator Saddle Tank in White, Plastic Applicator Saddle Tank in White, Vertical Water Storage Tank in Black and 64 more.
  • NSF 61Listed by the maker on 26 of 121: Plastic Septic Pump Tank, Plastic Open Top Batch Storage Tank, Black Vertical Water Storage Tank, Dark Brown Vertical Water Storage Tank, Light Blue Emergency Water Tank, Polypropylene Open Top Batch Storage Tank and 20 more.
  • FDA approvedListed by the maker on 15 of 121: HDPE Vertical Chemical Storage Tank in White, Plastic Vertical Water Storage Tank in Mocha, HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification, Plastic Vertical Rainwater Harvesting Tank in Black, Plastic Vertical Rainwater Harvesting Tank in Brown and 9 more.
  • ANSI/NSF 61 approvedListed by the maker on 15 of 121: HDPE Vertical Chemical Storage Tank in White, Plastic Vertical Water Storage Tank in Mocha, HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification, Plastic Vertical Rainwater Harvesting Tank in Black, Plastic Vertical Rainwater Harvesting Tank in Brown and 9 more.
  • ASTMListed by the maker on 4 of 121: HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification.
  • ANSI / NSF 61 ApprovedListed by the maker on 4 of 121: Above Ground Job Shack Holding Tank Low Pro In Black, Plastic Vertical Water Storage Tank in Green, Plastic Vertical Chemical Storage Tank in White, Plastic Vertical Rainwater Harvesting Tank in Dark Green.
  • UV StabilizedListed by the maker on 2 of 121: Plastic Water Storage Tank - Black (30" x 72"), Plastic Water Storage Tank - Black (35" x 59").

Install day

Set the tank on a flat surface that supports the whole bottom; a cone bottom or an open top goes on its stand, bolted down. A trailer or skid mount is sized for the full weight.

Fit bulkheads at the molded flats with the gasket on the wet side, pipe with a flexible connection, and support the pipe so the tank never carries it. Keep the drawing on the job; the 3D model on this page is traced from the hero tank's own drawing.

Tools: tank sizing calculator, chemical tank recommender, state regulations. Related: all Snyder tanks, vertical tanks, 10,000 gallon tanks.

Questions we get about 200 gallon tanks

How much does a 200 gallon plastic tank cost?

Listed at 490 to 3,532 dollars before freight on this page. Plain verticals sit at the bottom of the range; cone bottoms with stands, polypropylene open tops and specialty rig tanks sit at the top.

Which 200 gallon tank fits through a door?

Not the 30 inch vertical upright. The slimline rainwater bodies and the loaf shapes do; the dimensions on each card tell you, and a doorway tank is built for it.

Which ones are rated for drinking water?

The 45 that list NSF/ANSI 61 or FDA compliant resin; the comparison table and each card show the listing.

Vertical, leg or cone?

Vertical for a floor, leg for a vehicle or skid, cone for full drain and mixing. The rest of this page walks through each shape.

Ready to pick one?

Call 866-418-1777 and talk to a tank specialist, run the freight cost estimator for a real quote to your ZIP, or let Find My Tank narrow it by what you store and where it goes.
