A 1000 gallon 45 degree cone bottom tank for full drain batching
The Norwesco 1000 gallon 45 degree cone bottom tank, part number 43852, is a white polyethylene tank 72 inches in diameter and 89 inches tall, weighing 239 lb empty. The 45 degree cone is the steep one: it empties fast and completely and carries settled solids out with the liquid, which is what a mixing or batching tank has to do. It comes with a 2 inch polypropylene female NPT bulkhead fitting at the point of the cone and a 16 inch threaded vented manway on top. The rating is 1.5 specific gravity, 12.52 lb per gallon. Norwesco states the resin is FDA compliant, the service limit is 120 F, and the warranty is 3 years. It needs Norwesco's stand, part number 63934, sold separately. The same tank comes in black as the 1000 gallon 45 degree cone bottom tank in black, for liquids that should not see light.
Tank and stand on one order? Call 866-418-1777, or get freight to your ZIP and add it to your cart above.
Where a steep cone earns its height
Fertilizer blending, polymer and treatment chemical batching, brine make-up and anything that drops solids are the jobs for a 45 degree cone. The tank is 89 inches tall before the stand goes under it, so measure the ceiling, the door and the route in before you commit; a high bay or an outdoor pad is its natural home. If you store a clean liquid and only need a draining bottom, the 1020 gallon 15 degree cone bottom tank gives the same volume on a shallow cone in a much shorter tank. Our buyer's guide to 15, 30 and 45 degree cones sets the two side by side, and the 1000 gallon 45 degree cone bottom tank buyer's guide goes deeper on this one.
What goes in it
Water, liquid fertilizer, brine and the common chemicals polyethylene handles, up to 1.5 times the weight of water and under 120 F. Check the liquid in the chemical compatibility guide before the first fill; urea solution, calcium chloride, sodium hypochlorite, ferric chloride and sodium bisulfite are the entries buyers of this size ask about. For the volume, use the tank sizing calculator and tank sizing guide.
Openings, fittings and the stand
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting at the point of the cone. Fit the valve before the tank is seated in the stand and support the first length of pipe so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway: fill, float, a mixer bracket, and a hand and a brush for cleaning.
- Stand. Norwesco's stand 63934 is made for this cone. Its height sets the clearance under the outlet, so measure the valve, pump or drum before the order.

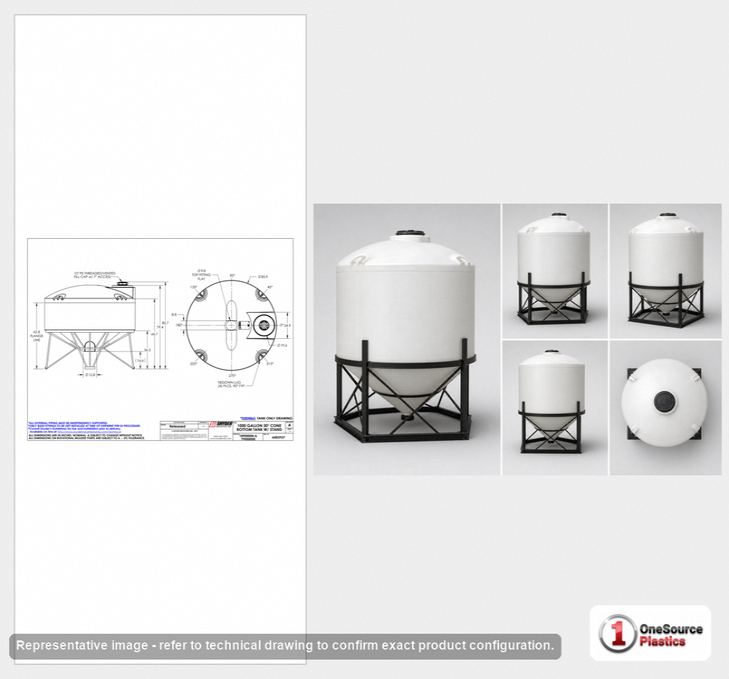

- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet and manway positions.
Sizes nearby
One step down on the same steep cone: the 750 gallon 45 degree cone bottom tank. The colour swatches above the price switch between the white and black versions of this tank.
Shipping and receiving
The tank ships LTL from Norwesco's St. Bonifacius, Minnesota plant, 72 by 72 by 89 inches and 239 lb on a pallet. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and a stand ordered with the tank travels with it. At the tailgate, check the part number 43852 against the bill of lading, look over the cone and the fitting before signing, and fill with water the first time so any problem shows up with something harmless in the tank.
Questions before you order? Call 866-418-1777 or request a written quote.
Freight and documents
Ships from: St. Bonifacius, MN. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 43852.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 1000 Gallon 45 Degree Cone Bottom Tank video (69 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
3 Year Warranty
