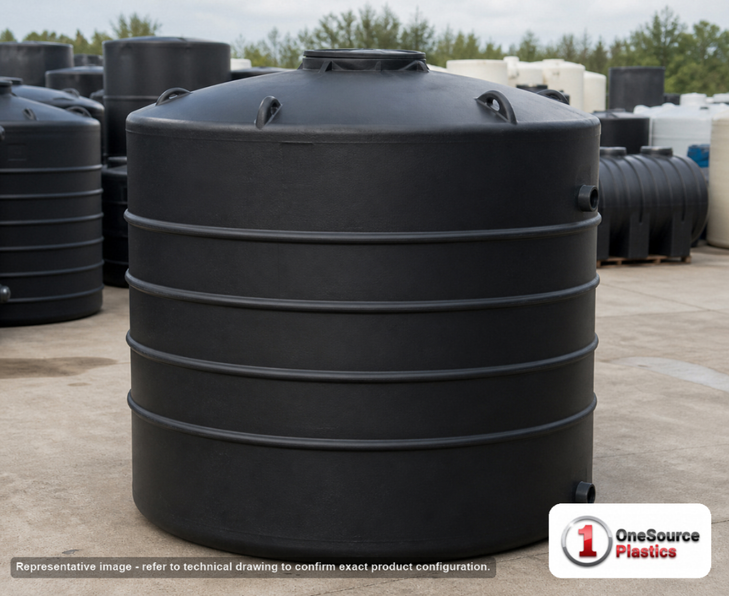

A 1000 gallon black water tank, 64 inches across and 81 inches tall
The Norwesco 1000 gallon vertical water storage tank, part number 41500, is a black polyethylene tank 64 inches in diameter and 81 inches tall. A thousand gallons is the size where a property stops topping up and starts storing: a week or more of household water on hauled supply, a herd's drinking water through a dry spell, a season's buffer for an orchard block, a roof's worth of rain from one good storm. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet, a 1-1/2 inch polypropylene female NPT bulkhead fitting as the inlet and a 16 inch vented manway on top. The tank is rated for liquids up to 1.1 specific gravity, so water and the light liquids near it; 1000 gallons of water weighs 8340 lb. The resin is FDA compliant and UV stabilized, the service limit is 120 F, and Norwesco backs the tank with a 3 year warranty. Black keeps light out of the water and slows algae in a tank that sits in the sun.
Buying for a site, a fleet or a district? Request a written quote with freight to your ZIP, or get freight to your ZIP and add it to your cart above. Call 866-418-1777 with any question on the fit.
The jobs that need every gallon of it
The buyers are a rural home or cabin on hauled water, a small farm consolidating several little tanks onto one pad with one pump, a nursery or vineyard holding irrigation water between rains, a contractor supplying a long job from one delivery point, and a property that wants standing water it did not buy from a meter. The shape is the sensible one for the scale: at 64 inches across and 81 inches tall it is wide enough to stand steady, low enough that the manway is reachable from a short step rather than a ladder, and tall enough to keep a pump flooded and a hose pressurised, with the water surface nearly seven feet above the outlet when full. What it demands is a proper base. Full, it puts more than four tons through a 64 inch circle, carried by a moulded floor that bears on everything it touches and nothing else, so a hollow under the middle or a high corner becomes the bearing point and stays that way. Level, continuous, in full contact, poured wider than the tank. Plan the overflow so a full tank spills away from the pad rather than under it, because a wide tank washing out one edge of its own base is the usual failure on farm installs. Band it while it is still empty and light enough for wind to move. Then confirm the number: run 1000 gallons against your real draw and refill interval in the tank sizing calculator, set the reserve from the tank sizing guide, and read our complete buyer's guide to this 1000 gallon tank. For a rural fire reserve, the fire water reservoir design guide explains how the volume is set and where a polyethylene tank sits in a private fire supply.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. A 2 inch valve, camlock or hose adapter threads straight in. Support the valve and the first length of pipe on their own so the fitting carries water, not hardware.
- Inlet. A 1-1/2 inch polypropylene female NPT bulkhead fitting for the fill line, a float valve or the overflow.
- Manway. A 16 inch vented manway on top: wide enough to fill from a hose or a pump, drop a float in, and get a hand and a brush inside to clean. The vent lets air in and out as the level changes; never plug it.

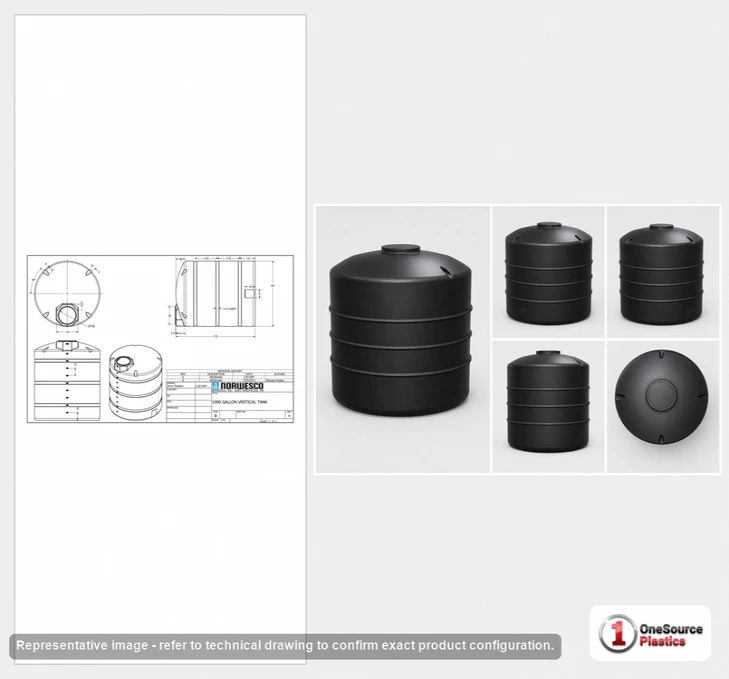

- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the fitting positions and the manway location.
Sizes and colours nearby

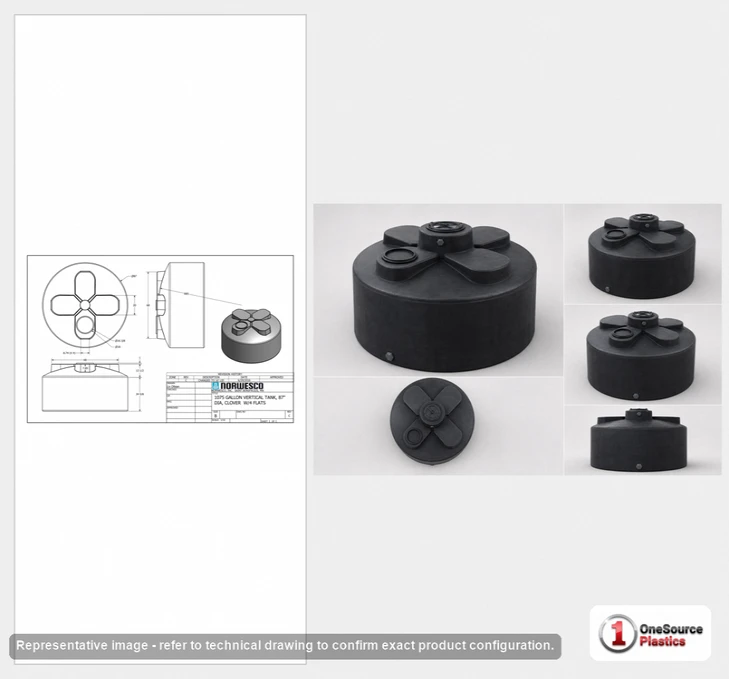

The same 1000 gallon shell is also listed as part number 41501, and the capacity comes in dark green, part number 41686, and as the green California-only tank, part number 43878. Norwesco also makes a wider, lower 1000 gallon shell; our buyer's guide to the wider 1000 gallon tank compares the two. One size down is the 750 gallon vertical water tank, a tall tank on a narrow circle; one size up is the 1075 gallon mocha tank. The colour swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL from Norwesco's Burnet, Texas plant, 64 by 64 by 81 inches on a pallet at a ship weight of 155 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. A tank this size usually needs a liftgate or two people to take it off the truck; tell us about the site when you order. At the tailgate, check the part number against 41500 on the bill of lading and look at the wall, the manway and both fittings for transit damage. Band it, fill it with water the first time and hold it a day before it goes into service, watching the fittings and the base.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Burnet, TX. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 41500.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 1000 Gallon Plastic Water Storage Tank video (71 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
3 Year Warranty
