130 Gallon Vertical Liquid Storage Tank

Where it goes

At 32 inches across and 46 inches tall this tank stands in a plant room, a wash bay, a well house, a greenhouse or a barn without dominating the space, and the lid sits at chest height so a hose fill needs no step. It is a tank for a day's supply: make-up water for a boiler or a cooling tower, rinse water, a nutrient or fertilizer tank, a rainwater or well water holding tank, or a water tank in a service trailer. Thirty-two inches is wider than a standard doorway, so measure the opening it has to pass through; it will go through most double doors and any roll-up door upright. Full of water it puts about 1080 lb on a 32 inch circle, and a rotationally moulded base bears on everything it touches and nothing else, so it wants a flat, continuous, level surface under the whole base: a slab, a solid deck or a full sheet of plywood over joists.

What goes in it

Water, liquid fertilizer, wash water and the treatment chemicals that polyethylene handles are the normal loads. Liquids heavier than 1.5 times water belong in the heavy duty version: the 130 gallon heavy duty vertical tank is the same capacity rated 1.9. Keep the contents under 120 F. White shows the level against light behind the tank; black keeps light out and slows algae in stored water. Our buyer's guide to the 130 gallon natural white vertical tank goes through placement and plumbing for this tank, and the tank sizing calculator and tank sizing guide settle the capacity. If 130 gallons is a stepping stone, our guides to the 500 gallon and 2000 gallon vertical tanks show where the same family goes.

Openings and fittings

1. Outlet. A 1-1/4 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. Thread a 1-1/4 inch valve straight in. Dry-fit it so the handle clears the wall, seal the threads, and support the first length of pipe on its own so the fitting carries liquid, not hardware.
2. Lid. An 8 inch threaded vented lid. Wide enough for a hose, a float switch or a small pump inlet; the vent lets air in as the tank drains so the walls are never pulled inward.

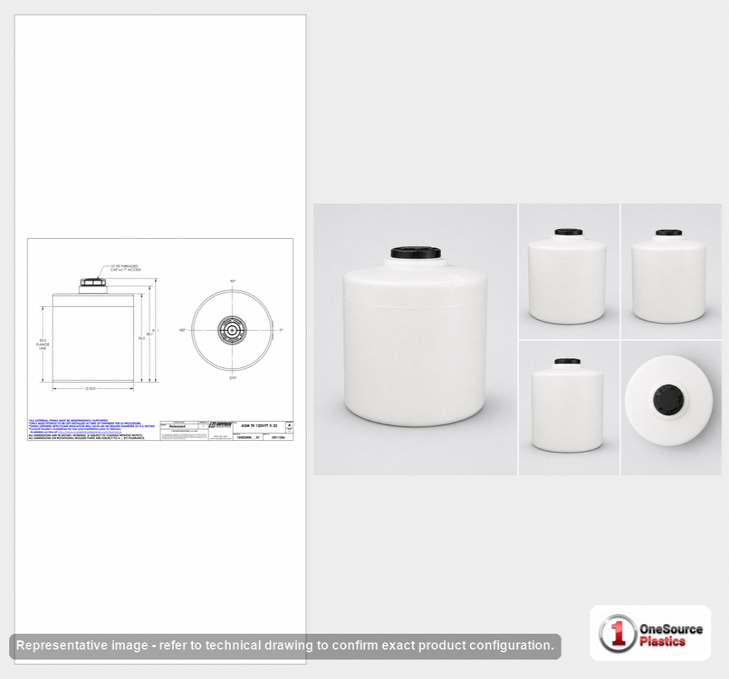

3. Drawing. Norwesco's drawing for this tank is linked on this page under Technical Drawing. It gives the outlet height and the lid position for planning the pipe run.

Sizes nearby

Same tank in black: the 130 gallon black vertical storage tank. Heavy duty at this size and the next: the 130 gallon heavy duty vertical tank and the 140 gallon heavy duty vertical tank. One size down in black: the 120 gallon black vertical storage tank. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL from Norwesco's Fairfield, Texas plant, 32 by 32 by 46 inches on a pallet at a ship weight of 45 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number 44102 on the bill of lading, look at the base and the bulkhead fitting before the driver leaves, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
