120 gallons under a bench, with ASTM certification

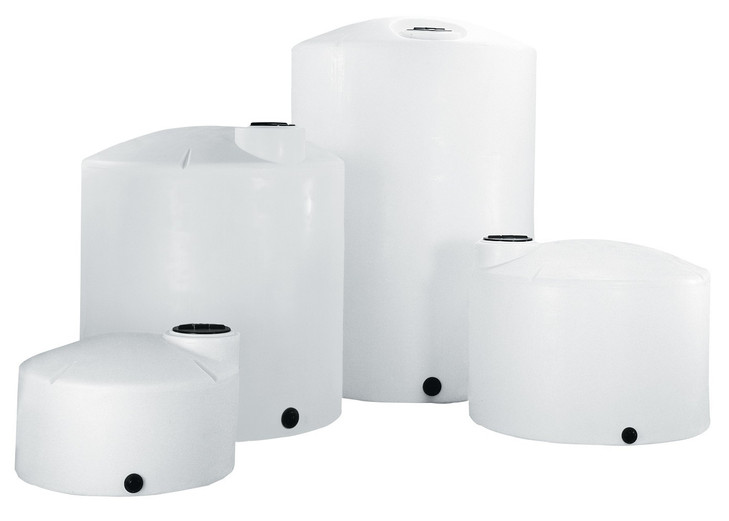

The Snyder 1540200N45 is a squat vertical liquid storage tank: 120 gallons of white polyethylene in a shell 32 inches across and only 39 inches tall, weighing 45 pounds. It carries a 1.9 specific gravity wall, rated for 1,902 pounds of contents against 1,001 for water, it is sold with ASTM certification for jobs that need the paper, and at 39 inches it goes under a bench, a mezzanine or a shelf where the taller 120 gallon tanks will not. A 10 inch lid on top and a 3 year warranty.
Want it on your site? Get LTL freight to your ZIP, add it to your cart above, or call 866-418-1777 and a tank specialist will confirm the fit.
Small, low and certified
A tank barely taller than it is wide cannot tip and keeps a pump suction flooded to the last few inches; the cost is a 32 inch circle of floor, which is nothing. The certification is against ASTM D1998, the standard rotationally molded polyethylene tanks are specified to, and the way a tank meets it is in the wall; the HDPE tank wall thickness guide explains the D1998 sizing logic and why the vapor headspace is where tanks fail first, and the Captor freeboard sizing guide covers the volume the same standard tells you to leave empty. The tank sizing calculator sizes a day tank to the pump's rate and the refill schedule, and the tank sizing guide covers the reserve to carry.
Snyder's 110 to 130 gallon tanks
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 1540200N45 (this tank, ASTM certified) | 120 | 32 x 39 in | 45 lb |
| 1540200N51 | 120 | 32 x 39 in | 45 lb |
| 5700100N45 (tall) | 120 | 34 x 51 in | 50 lb |
| 8010000N42 (XLPE) | 110 | 33 x 41 in | 45 lb |
| 1007300C26 (narrow) | 130 | 29 x 51 in | 45 lb |
The N51 is another resin option in the same shell. The 5700100N45 is the same 120 gallons stood up, 12 inches taller on a base 2 inches wider, for the corner that has height. The 8010000N42 is the cross-linked 110 for oxidizers, and the 1007300C26 is the narrow 130, 29 inches across and 51 tall, for the gap between two pumps.
Picked the 120 gallon tank? Add it to your cart above; freight is quoted to your ZIP before you pay anything.
Access and outlet
- Access: 10 inch lid; filled by hose or tote pump, not poured.
- Outlet: specify the bulkhead fitting for the chemical when ordering; a flexible transition to the pump suction and a valve supported off the floor.
- Service limit: 120 F / 48 C.
- Listing: ASTM certification.
A 39 inch white tank shows its level in daylight, and a float switch for low level is usually enough in a pump room. Mount the dosing pump below the outlet so it primes by gravity, and route the vent outside on anything that fumes. Keep the lid closed against vapor loss and the tank out of direct sun where the chemical is light-sensitive.
Put to use
Under-bench day tanks in a plant lab, hypochlorite and caustic feed at small water systems, acid and inhibitor feed at a cooling tower, brine for a softener, and a reagent tank on a pilot skid where the certification has to be on file. One chemical per tank, labeled, and refilled on a schedule the chemistry tolerates.
How it ships
The 1540200N45 ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator shows it for your ZIP, and the listed price is before freight. One person carries 45 pounds. Water-fill it once to the lid, check the outlet fitting, and keep the certification paperwork with the project file. A strap that is checked once a season is a strap that holds; put it on the same calendar as the gutters.
Freight and documents
Ships from: Merced, CA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 1540200N45.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
