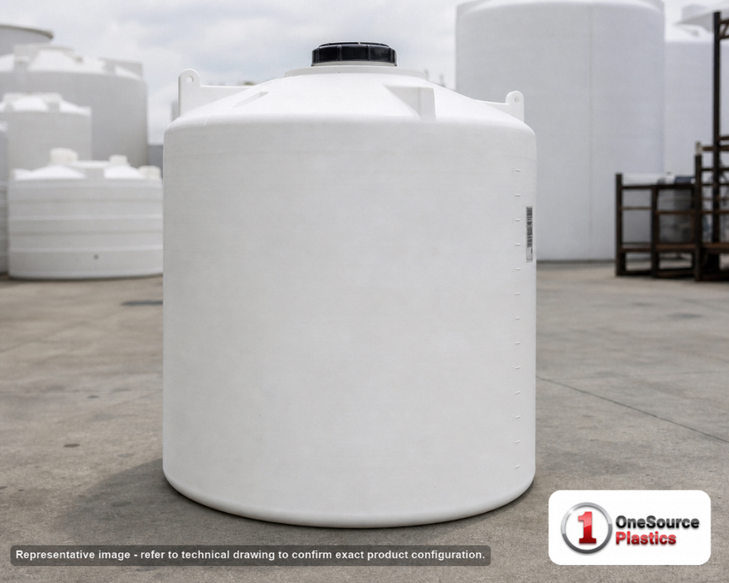

A 310 gallon white vertical tank on a 32 inch footprint, 94 inches tall
The Norwesco 310 gallon vertical liquid storage tank, part number 43625, is a polyethylene tank 32 inches in diameter and 94 inches tall, weighing 82 lb empty. It is the tallest tank in this capacity class: nearly eight feet of column on a circle of floor not much wider than a drum pallet, with a 16 inch threaded vented manway on top and a 2 inch polypropylene female NPT bulkhead fitting as the outlet. The tank is rated for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 310 gallons of water weighs 2585 lb, and at the 1.5 rating the tank can carry up to 12.52 lb per gallon. The service limit is 120 F, and Norwesco backs it with a 3 year limited full-replacement warranty. White lets you read the level through the wall from the floor, which on a tank this tall is the only way you will read it.
Is this the right size? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the clear height of the room.
Where a 94 inch column belongs
This is a tank for a high bay, a treatment building with the services run along the wall, a food plant make-up corner beside a stairwell, or the end of a greenhouse range with a tall frame. Thirty-two inches of circle fits where a drum rack fitted. Measure the lowest pipe, duct or beam above the spot and add a hand's room for the manway before you order, and check the room has the swing to stand a 94 inch tank up after it comes through the door on its side. A column this slender must be banded to a wall, a rack or a frame before the first fill, with the band pulled tight again after the tank has been full once and settled; never let a rigid pipe be what holds it upright. The fill is a line brought down to working height. The base must be flat, continuous and level out to the full 32 inch edge; the framework is in our concrete pad sizing guide for above ground polyethylene tanks. The 310 gallon vertical tank buyer's guide covers the rest.
What goes in it
Water, liquid fertilizer and the common farm and treatment chemicals that polyethylene handles are the normal loads, kept under 120 F. Liquids heavier than 1.5 times water need a heavy duty tank rather than this one. For a rural fire water reserve, read fire water reservoir design for rural and remote sites before sizing; for grey water, rainwater or condensate reuse, the water reuse tank topology guide explains where a column like this fits. If your job needs certification paperwork, ask us before you order and we will send what Norwesco holds for this model. For the volume, use the tank sizing calculator and the tank sizing guide.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. Your valve, camlock or hose adapter threads straight into it. Support the valve and the first length of pipe so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top, wide enough for a submersible pump and a float. At 94 inches up it is reached from a platform, not a step stool; plan the fill as a fixed line. The vent lets air in as the tank drains; never plug it.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height and the manway position for planning the band and the fill line.
Sizes nearby
Same tank in black, for outdoor water where sunlight grows algae: the 310 gallon black vertical tank. Close in capacity but low and wide, for a normal ceiling: the 305 gallon black vertical tank. The next step up in the family: the 500 gallon black vertical tank. The colour swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL from the nearer of Norwesco's Lancaster, Ohio and St. Bonifacius, Minnesota plants, 32 by 32 by 94 inches on a pallet, at 104 lb on the freight paperwork; tell the carrier it is a tall item so it rides upright and is not stacked under. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 43625 on the bill of lading, look at the base and the manway for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777, or request a written quote.
Freight and documents
Ships from: St. Bonifacius, MN; Lancaster, OH. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 43625.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 310 Gallon Vertical Liquid Storage Tank video (62 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
3 Year Warranty
