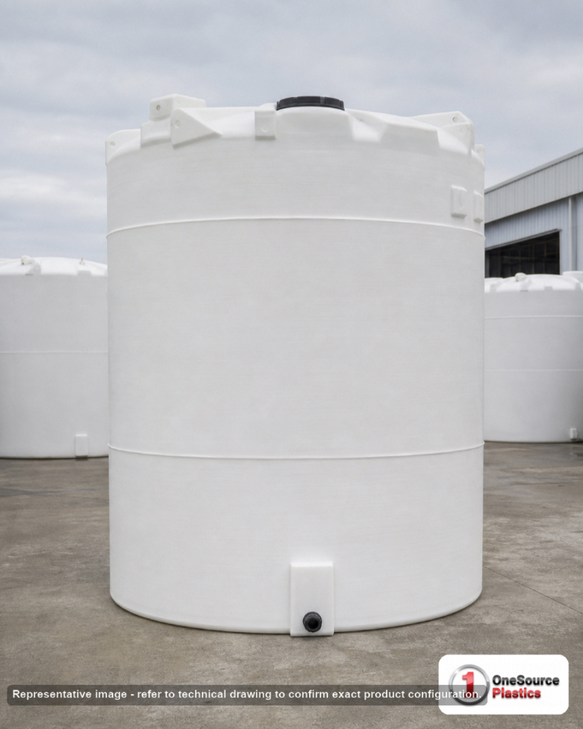

A 4100 gallon natural white vertical tank with a 3 inch outlet, for water and everyday liquids
SII-1009100C37 is Snyder's 4100 gallon vertical storage tank in natural white polyethylene, 102 inches in diameter and 124 inches tall, 800 lb empty, shipped from Snyder's plant in Chowchilla, California. It comes with a 3 inch polypropylene female NPT bulkhead fitting as the outlet and an 18 inch threaded vented manway. The wall is rated for liquids up to 1.5 specific gravity and up to 120 F (48 C). Full of water it holds 34,194 lb (4100 x 8.34); at the full rating, about 51,291 lb. Snyder backs it with a 3 year warranty.
Bulk water for a farm, a plant or a fire reserve? Call 866-418-1777 with the site and the fill rate, or get freight to your ZIP and add it to your cart above.
What it does
A 4100 gallon tank on a 102 inch footprint is the size people buy for real volume without a giant: a well or hauled water reserve for a home, ranch or camp, an irrigation or frost-protection supply, a wash water tank at an equipment yard, a fertilizer tank on a farm. The 3 inch outlet moves water fast, which matters when you fill a tender truck or feed a pump. The natural white wall lets you read the level from outside. The 1.5 rating covers water, most liquid fertilizers and many common liquids; check anything other than water in our chemical compatibility guide.
Plan the base and the anchoring before the truck comes. Up to 51,291 lb on a 102 inch circle needs a level, flat pad larger than the tank; see the concrete pad sizing guide. For a fire reserve, the rural fire water reservoir guide covers sizing and freeze protection; for rainwater or reuse, the water reuse tank layout guide.
Openings and what to confirm
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting. Support the valve and the first length of pipe on their own so the wall carries only liquid.
- Manway. 18 inch, threaded and vented, for filling and inspection.
- Heavier liquids. 1.5 specific gravity is the limit. For denser liquids, look at the heavy duty versions below.
- Drinking water. Ask us before you use it for potable water.
- Extra openings. Tell us any inlet, overflow or level fitting you need and we will confirm with Snyder.
Sizes and versions nearby

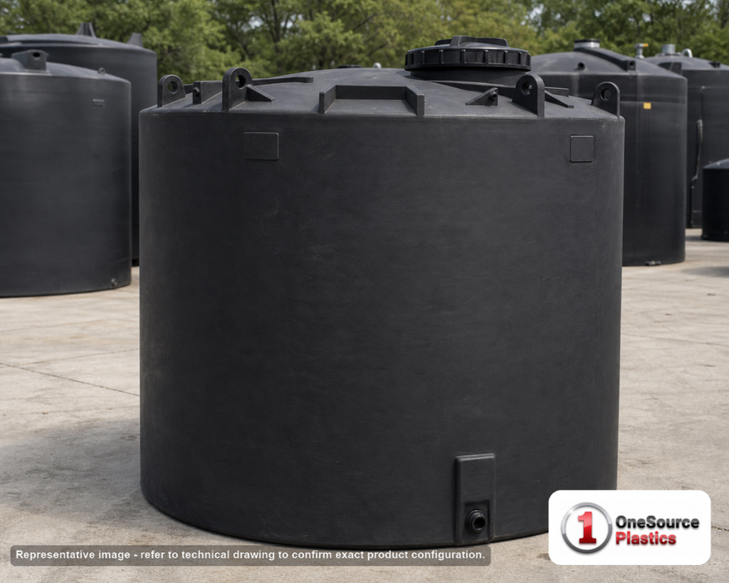

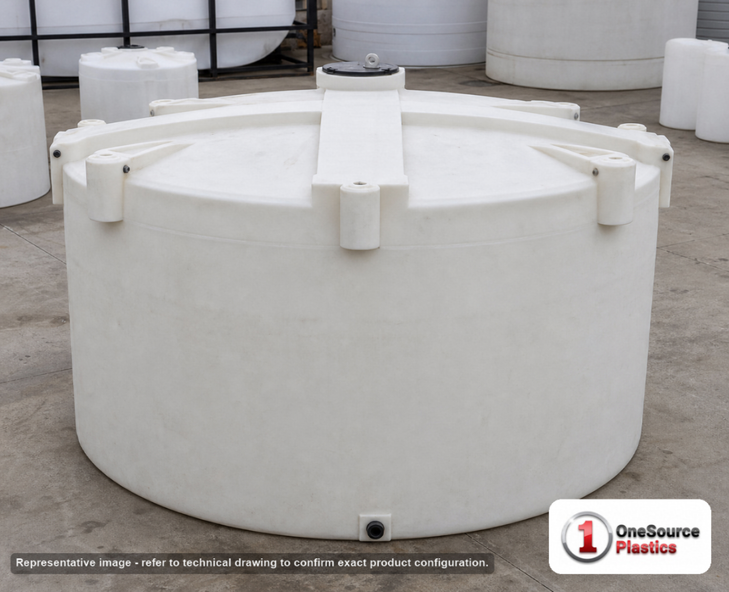

Other 4100 gallon Snyder tanks: the 4100 gallon black vertical tank, the 4100 gallon black heavy duty tank and the 4100 gallon ASTM XLPE black tank. A size down, the 4000 gallon ASTM XLPE tank; a size up, the 4300 gallon black heavy duty tank. The tank sizing calculator and tank sizing guide help with volume.
Shipping and receiving
It ships from Chowchilla, California at 800 lb, shipping size 102 by 102 by 124 inches. The listed price is before freight; the freight cost estimator gives the cost to your ZIP. Make sure the truck can reach the pad and you have equipment to unload it. Check SII-1009100C37 on the bill of lading, walk the shell before you sign, and fill with water first while you watch the outlet.
Ready to order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
Freight and documents
Ships from: Chowchilla, CA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
See this tank
Product video. Watch the 4100 Gallon Vertical Storage Tank video (65 seconds) with dimensions, fittings and shipping notes.
