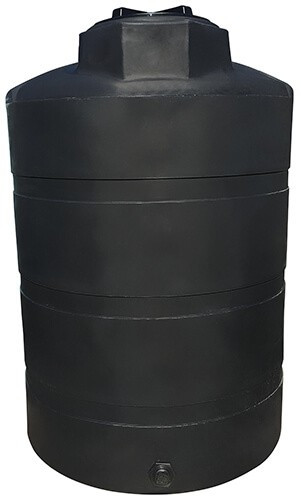

Norwesco 1000 Gallon Black Vertical Storage Tank

Where a 64 by 80 inch tank fits

At 64 inches across, this tank takes up a little over five feet of floor, and at 80 inches tall the manway sits just under seven feet up, so you can reach it from a short step without a ladder. That makes it the usual pick for a well house, a pump shed, a rainwater collection point beside a barn, or a backup water supply behind a house. It needs a flat, level, continuous surface under the whole bottom: a poured pad, a compacted gravel bed with a sand cap, or a concrete slab that is already there. Our guide to pad sizing for above ground polyethylene tanks covers how big and how thick the pad should be. If the tank is part of a fire reserve on a rural site, our piece on fire water reservoir design for remote sites covers sizing and freeze protection; for a reuse train that collects grey water or condensate, see how a reuse storage train is banded by quality. To check the volume against your draw, use the tank sizing calculator and the tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the sidewall. A 2 inch ball valve, camlock or hose adapter threads straight in. Dry-fit the valve, point it where the pipe will run, then tighten; support the first length of pipe on its own so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top. Wide enough to fill from a hose or a pump line, to drop a float switch in, and to get a hand and a brush inside to clean. The vent lets air in and out as the level moves; never plumb the tank so that vent is blocked.
3. Liquid and temperature. Keep the contents at or below 120 F and at or below 1.5 specific gravity. Heavier liquids belong in the heavy duty version listed below.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height and the manway position so you can plan the plumbing before the tank arrives.

Sizes and versions nearby

Same tank in white, for liquids where you want to see the level through the wall: the 1000 gallon white vertical tank, 40152. For liquids heavier than water, the heavy duty 1.9 specific gravity versions are the 1000 gallon blue heavy duty tank, 40154 and the 1000 gallon black heavy duty tank, 42212. Norwesco also builds a 1000 gallon black tank in a different mould, 44111B, and its white twin 44111; compare the two drawings if your spot has a height or footprint limit. A step down is the 1005 gallon black vertical tank, 44818B; a step up is the 1005 gallon vertical tank, 44818. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL at freight class 400 from the nearest of Norwesco's plants that build it: Fairfield, Texas; Griffin, Georgia; Hanford, California; Owego, New York; Shawnee, Oklahoma; St. Bonifacius, Minnesota; Tooele, Utah; Washington Court House, Ohio; or Washougal, Washington. It travels upright, 64 by 64 by 80 inches, and at 174 lb two people can walk it off the truck and onto the pad. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number 40584 against the bill of lading, look over the sidewall and the bottom edge for transit damage, and fill it with water the first time so any problem shows up with something harmless inside.

Questions before you order? Call 866-418-1777.
