A 1235 gallon black elliptical leg tank for a long trailer deck
The Norwesco 1235 gallon black elliptical leg tank, part number 40752, is a low profile polyethylene transport tank 128 inches long, 66 inches wide and 53 inches tall, weighing 364 lb empty. It is the longest and lowest of the elliptical tanks near this size: the extra length buys a lower top, which keeps the centre of gravity down on a trailer and keeps the manway reachable from the deck. It comes with a 2 inch polypropylene female NPT bulkhead fitting at the outlet and a 16 inch threaded vented manway on top. The tank is rated for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 1235 gallons of water weighs 10300 lb. The resin is FDA compliant, Norwesco lists the tank as NSF 61, the service limit is 120 F, and Norwesco backs it with a 3 year warranty.
One tank or a pair for a tandem rig? A single tank goes straight to the cart above with freight quoted to your ZIP; for several, request a written quote or call 866-418-1777.
On a trailer or a nurse rig
At 128 inches long the tank wants a gooseneck, a tandem axle or a flatbed truck; it is too long for a pickup bed. At 66 inches wide it leaves room beside it on an 8 foot deck for a pump, a hose reel and a chemical inductor, and at 53 inches tall it stays below the line of sight from most cabs. Full of water it weighs about 10300 lb and more with fertilizer, so the trailer's axle and hitch ratings set the limit. Strap it through the moulded leg recesses, never over the manway, and use the support bands Norwesco makes for this tank; the add-ons box on this page lists them. Our guide to Norwesco applicator and leg tanks for fertilizer and the DOT non-roadable trailer rules covers how these tanks are classified on the road.
What goes in it
Water, liquid fertilizer and the common farm chemicals that polyethylene handles are the normal loads. Before anything else goes in, check the liquid in our chemical compatibility guide; the entries for urea solution, DEF, calcium chloride, sodium hypochlorite and potassium carbonate are the ones transport tank buyers ask about most. Liquids heavier than 1.5 times water need a heavy duty tank, not this one. If you blend fertilizer on the way to the field, our note on fertilizer blend stratification and how to catch it before the spreader runs off spec is worth reading; a long low tank layers along its length as well as top to bottom. For the volume itself, use the tank sizing calculator and tank sizing guide.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the end wall. A 2 inch ball valve and camlock thread straight in. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top, 53 inches up: wide enough to fill from a hose or a pump, drop a float in, and clean through. Keep the vent clear so the tank breathes as the load sloshes.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the exact outlet and manway positions and the leg layout for strap planning.
Sizes nearby

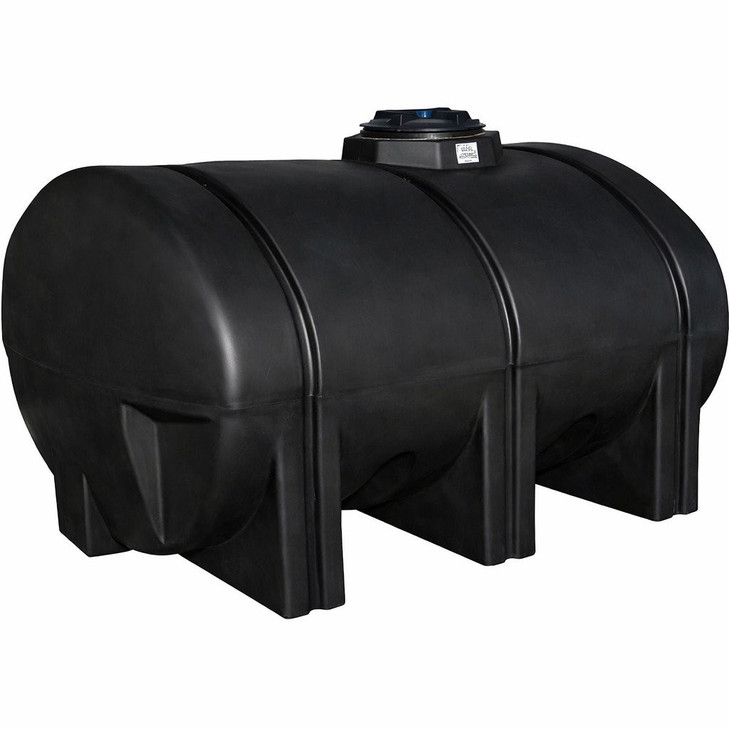

Same tank in white, for liquids where you want to see the level through the wall: the 1235 gallon elliptical leg tank in white. One size down: the 1035 gallon black elliptical leg tank. One size up: the 1335 gallon black elliptical leg tank. The colour swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL at freight class 300 from Norwesco's St. Bonifacius, Minnesota plant, 128 by 66 by 53 inches and 364 lb. A forklift makes unloading simple. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Bands ordered with the tank travel with it. At the tailgate, check the part number against 40752 on the bill of lading, look at all the legs for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: St. Bonifacius, MN. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40752.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
