A 1720 gallon 15 degree cone bottom tank in heavy duty blue
The Norwesco 1720 gallon 15 degree cone bottom tank in light blue, part number 44424, is a high density linear polyethylene tank 91 inches in diameter and 78 inches tall, weighing 314 lb empty. A cone bottom tank drains itself completely: the floor slopes to a single low point, so settled solids and the last few gallons leave through the outlet instead of sitting in a flat bottom. The 15 degree cone is the shallow one, which keeps the tank short for the volume. This is the heavy duty version, rated for liquids up to 1.9 specific gravity, so it takes dense fertilizers and chemicals that a standard tank cannot. It comes with a 2 inch outlet at the cone and a 16 inch lid on top, with a service limit of 120 F. The resin is FDA compliant per Norwesco. The tank needs a stand, sold separately: Norwesco's part N-64090. Full of water it holds about 14300 lb; at the full 1.9 rating, about 27300 lb.
Buying the tank and the stand? Call 866-418-1777 and we put both on one order, or get freight to your ZIP and add the tank to your cart above.
What a cone bottom tank is for
Mixing and batching liquid fertilizer, holding chemicals that settle or crystallize, process tanks that must empty fully between batches, and any job where leaving an inch of product in the bottom costs money or contaminates the next load. The shallow 15 degree cone suits liquids that flow freely; thick slurries and anything that cakes want a steeper cone. Our guide to choosing between 15, 30 and 45 degree cones explains the trade, and the 1720 gallon cone bottom buyer's guide covers this size in detail.
Check anything other than water in our chemical compatibility guide first; the entries for urea solution, calcium chloride, sodium hypochlorite, phosphoric acid and sulfuric acid are the ones cone tank buyers ask about most. For the volume, use the tank sizing calculator and tank sizing guide.
The stand, the openings and what to check before you buy
- The stand. A cone bottom tank cannot stand on its own. Norwesco pairs this tank with stand N-64090, sold separately; the angle must match the 15 degree cone, and a 30 degree stand will not do. Our cone bottom stand compatibility matrix lists the pairings.
- Outlet. A 2 inch outlet at the point of the cone. Your valve goes on before the first fill. Support the valve and the first length of pipe so the fitting carries liquid, not hardware, and leave room under the stand for them.
- Lid. A 16 inch lid on top for filling, a mixer or a level sensor, and access for cleaning.
- The liquid. The 1.9 rating covers liquids up to 1.9 times the weight of water at up to 120 F. If everything you store is near the weight of water, the standard white version of this tank is enough.
- The floor. The stand needs a flat, level, continuous surface; a full tank on a stand is a concentrated load, and the floor rating belongs to your engineer.
Norwesco's drawing for this tank is linked on this page under Technical Drawing. It shows the cone, the outlet position and the overall height on its stand.
Versions and sizes nearby

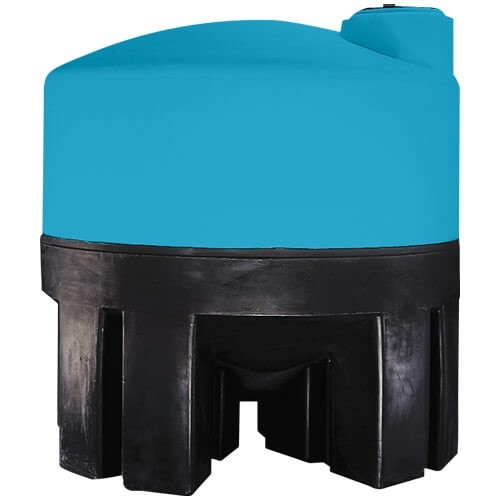

The same tank in standard duty white, rated 1.5, is the 1720 gallon 15 degree cone bottom tank in white. For a steeper cone, see the 1600 gallon 30 degree cone bottom tank with black poly stand or the 2500 gallon 30 degree cone bottom tank with poly stand. The swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank is oversize freight, 91 by 91 by 78 inches and 314 lb, on a flatbed from the nearer of Norwesco's Shawnee, Oklahoma and St. Bonifacius, Minnesota plants. A stand ordered with it travels with it. You need a forklift or several hands and a clear bay to take it off the truck. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote for a job that needs paperwork. At the tailgate, check the part number against 44424 on the bill of lading, look over the cone and the outlet fitting for transit damage, set the tank in its stand, and fill with water the first time before anything else goes in.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Shawnee, OK. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 44424.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Norwesco 1720 Gallon 15 Degree HDPE Cone Bottom Tank in Blue video (77 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
