A 2635 gallon white elliptical leg tank you can read the level on from across the yard

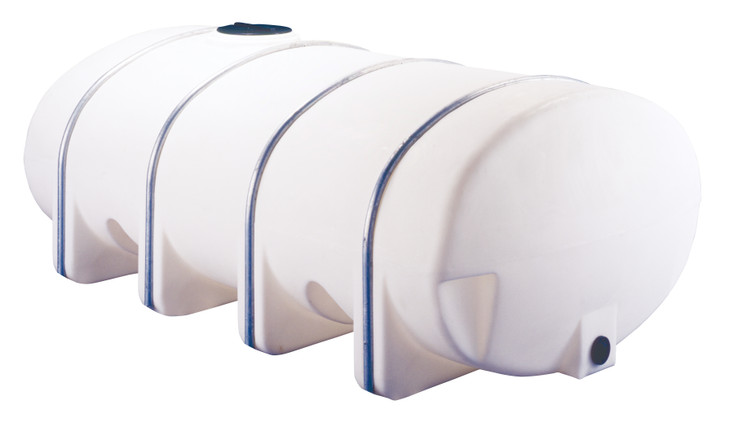

The Norwesco 2635 gallon horizontal elliptical leg tank in white, part number 40547, is a polyethylene transport and storage tank 140 inches long, 90 inches wide and 72 inches tall, weighing 830 lb empty. It is the big leg tank for a nurse trailer, a flatbed water hauler or a yard supply tank on a cradle, and the white wall shows the liquid level in daylight without a gauge. It comes with a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer as the outlet and a 16 inch threaded vented manway on top. The tank is rated for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 2635 gallons of water weighs about 22000 lb and the heaviest liquid the rating allows brings a full tank to about 33000 lb. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs the tank with a 3 year warranty.
Two ways to buy. Add it to your cart above with freight quoted to your ZIP, or request a written quote for a job that needs paperwork.
On a trailer or in the yard
At 140 by 90 inches the tank needs a trailer deck or a cradle that supports the full length of the moulded legs. Full, it is a load of eleven to sixteen tons depending on the liquid, and every pound of it goes through the legs into whatever is underneath. On a trailer, the frame and the running gear are rated for the liquid you actually carry, not for water, and the tank is strapped through the leg recesses with the straps bearing on the body, never on the manway. In the yard, the tank sits on a level, continuous cradle or pad that touches every leg, with room at the outlet end for the valve and the hose. White lets light in, so for water that sits for weeks choose the black version linked below. Our guide to Norwesco applicator and leg tanks for fertilizer and the DOT non-roadable trailer rules covers how a tank this size is classified on the road.
What goes in it
Water, liquid fertilizer and the common farm chemicals that polyethylene handles are the normal loads. Before anything else goes in, check the liquid in our chemical compatibility guide; the entries for urea solution, DEF, calcium chloride, sodium hypochlorite and phosphoric acid are the ones leg tank buyers ask about most. Liquids heavier than 1.5 times water need a heavy duty tank, not this one. If you blend fertilizer in it, read our note on fertilizer blend stratification first. For the volume itself, use the tank sizing calculator and tank sizing guide.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting, factory installed low in the end wall, supplied with a 2 inch reducer. Run it at 3 inches for fast transfer to a sprayer or an applicator, or thread the reducer in and use 2 inch hose and a 2 inch valve. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top: wide enough to fill from a hose or a pump, to drop a float in, and to get a hand and a brush inside to clean. The vent lets air in as the pump draws down, so keep it clear.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the exact outlet and manway positions and the leg layout for cradle and strap planning.
Sizes nearby
Same tank in black, for stored water and light sensitive liquids: the 2635 gallon black elliptical leg tank. The same size in heavy duty polyethylene, for heavier liquids: the 2635 gallon heavy duty black elliptical leg tank and the 2635 gallon heavy duty blue elliptical leg tank. One size down: the 2035 gallon white elliptical leg tank.
Shipping and receiving
The tank ships LTL from the nearest of Norwesco's plants in Griffin, Georgia; Hanford, California; Lancaster, Ohio; Shawnee, Oklahoma; St. Bonifacius, Minnesota; or Tooele, Utah, as a 140 by 90 by 72 inch load at 830 lb. That is a flatbed load, not a liftgate, so have a forklift or a loader with straps ready. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 40547 on the bill of lading, look at all the legs and the outlet fitting for transit damage, and fill the tank with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Griffin, GA; St. Bonifacius, MN; Lancaster, OH; Shawnee, OK. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40547.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Norwesco 2635 Gallon Horizontal Elliptical Leg Tank in White video (70 seconds) with dimensions, fittings and shipping notes.
