A 120 gallon chemical tank that fits beside the pump

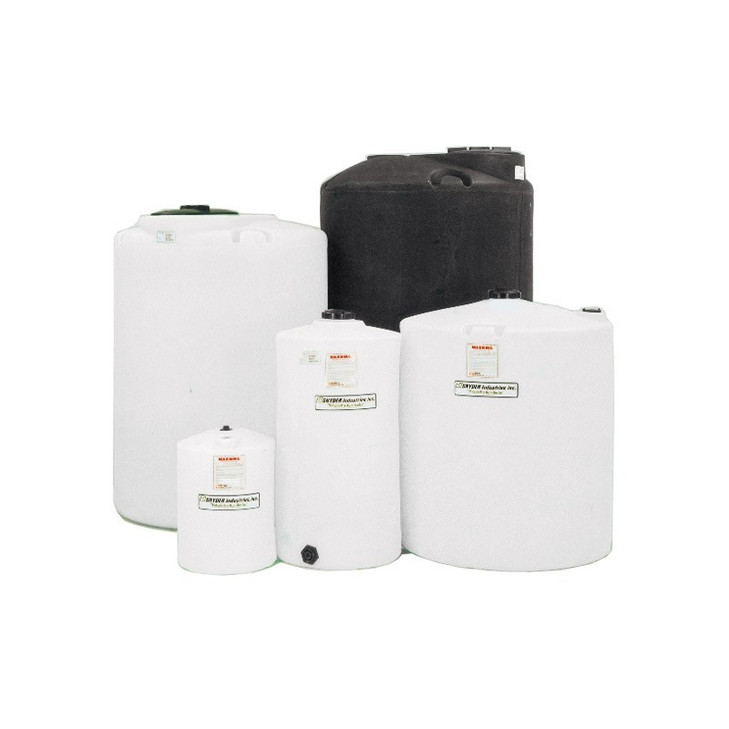

The Snyder 5700100N45 is a white polyethylene vertical chemical storage tank, 34 inches across and 51 inches tall, holding 120 gallons at 50 pounds. Its wall is rated for a specific gravity of 1.9, or 1,902 pounds of contents against 1,001 for water, so it holds concentrated treatment chemicals rather than rain, in a footprint that stands beside a dosing pump on a skid or in the corner of a feed room. A 14 inch lid on top, a 3 year warranty, and it ships as standard LTL freight.
Buying for a site, a fleet or a district? Request a written quote with freight to your ZIP, or add it to your cart above and call 866-418-1777 with any question on the fit.
The day tank
A day tank holds one shift or one day of chemical close to the dosing pump, drawn from a bulk tank or a tote, so a leak is a small one and a wrong fill is caught before it reaches the process. A hundred and twenty gallons covers a surprising range of feed rates; the tank sizing calculator works from the pump's rate and the refill schedule, and the tank sizing guide covers the reserve a day tank carries. The list below is the resin's rated chemistry; check the liquid at its concentration in the chemical compatibility database, because weight rating and chemical resistance are separate properties. The 120 gallon vertical tank buyers guide compares the shapes in this class across makers.
Snyder's 110 to 130 gallon tanks
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 5700100N45 (this tank) | 120 | 34 x 51 in | 50 lb |
| 5700100N42 (XLPE) | 120 | 34 x 51 in | 50 lb |
| 1540200N45 (squat, ASTM certified) | 120 | 32 x 39 in | 45 lb |
| 5700102N51 (double wall, black) | 120 | 34 x 51 in | 100 lb |
| 8010000N42 (XLPE) | 110 | 33 x 41 in | 45 lb |
The N42 is the cross-linked twin for hypochlorite and the other oxidizers. The 1540200N45 is the same 120 gallons in a squat 39 inch shell, 12 inches shorter, for under a bench, and it carries ASTM certification. The 5700102N51 is this shape as a double wall tank, 50 pounds heavier, with the containment built in for a regulated chemical. The 8010000N42 is the 110 gallon step down at 41 inches.
Need a different size? Every tank in the table is in stock programs; ask for a quote on the one that fits, or call 866-418-1777.
Openings, instruments, containment
- Access: 14 inch lid; the tank is filled by hose or tote pump, not poured, which is the right way to fill a chemical day tank anyway.
- Outlet: specify the bulkhead fitting for the chemical when ordering; a flexible transition to the pump suction and a valve supported off the floor.
- Service limit: 120 F / 48 C.
Choose the level sender for the chemical with the level gauge selection guide; on a 51 inch white tank a float switch for low level and a sight line for the operator are often enough. Mount the dosing pump below the outlet so it primes by gravity, and route the vent outside on anything that fumes. A 34 inch tank fits a standard spill pallet, and the Snyder Captor 110 percent containment comparison covers when a double wall tank is the cleaner answer.
Turnover and changeover
Size the refill schedule so the tank turns over before the chemical degrades; hypochlorite in particular is bought in small lots often, and a day tank that sits for a season wastes chlorine. A 34 inch tank is cleaned in minutes: drain through the outlet, rinse through the lid with a wand, drain again, and let it dry before the new fill, because residue from the last product is the usual cause of a cloudy first batch. Keep the lid closed against vapor loss and the tank out of direct sun where the chemical is light-sensitive.
Setting it up beside the pump
Put the tank on a spill pallet or a small basin at the pump, with the outlet facing the pump and the lid facing the operator. The dosing pump mounts below the outlet so it primes by gravity, with a union and a check valve in the suction line and a calibration column or a sight tube on it so the operator can check the feed rate without opening the tank. Bring the fill in through the lid by hose from the tote pump, and run the vent line to the outside or a scrubber; the off-gas from an open day tank is what corrodes the electrical gear beside it. A photo of the finished setup goes in the log, because the next person to touch it will not be the one who built it.
Applications
Hypochlorite and caustic day tanks at small water systems, polymer make-down on a wastewater skid, acid and inhibitor feed at a cooling tower, brine for a softener, and the lab or pilot plant that needs 120 gallons of reagent within reach of a bench. One chemical per tank, labeled.
On the truck
The 5700100N45 ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator shows it for your ZIP, and the listed price is before freight. One person carries 50 pounds. Water-fill it once to the lid and check the outlet fitting before the chemical connection is made; mark the vent and the outlet on the shell so nobody caps the wrong one. Mark the vent and the outlet on the outside of the shell so nobody caps the wrong one in the dark.
Liquids this resin is rated to store
These entries are the manufacturer's ratings for this resin, each with the concentration limit and the fitting and gasket to specify. Your concentration and temperature are confirmed on the chemical page or in the chemical compatibility database before ordering.
Freight and documents
Ships from: Marked Tree, AR. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5700100N45.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
