Snyder Industries 1300 Gallon ASTM XLPE Black Heavy Duty Vertical Storage Tank

Where it goes

If the liquid is heavier than water, the lighter grade is the wrong buy at any price; if the liquid is water or close to it, you are paying for wall you will never load, and the lighter grade holds the same 1,300 gallons in the same footprint. Once the grade is settled the site work is the same: full of water the shell carries 10,842 lb and at the rating 20,600, every pound on a 72 inch circle, so pour the slab to our concrete pad sizing guide, level and in full contact. Band it to structure the day it lands and look at the bands after the first storm. Whether 1,300 gallons covers the draw between fills is a question for the tank sizing calculator; the reserve and the thermal freeboard a warm liquid needs come out of the tank sizing guide.

What goes in it

This is the grade a plating shop, a mine water treatment skid or a municipal chemical building buys when the liquid on the label is heavier than water and the volume is one tanker compartment rather than a bulk delivery. Crosslinking is the reason a tank this size is specified for that duty, and our guide to when crosslinking matters for chemistry duty works through where it earns its cost; check the liquid itself in the chemical compatibility guide.

Openings and fittings

1. Manway and vent. An 18 inch threaded vented manway at 87 inches: platform work, with a permanent fill connection at the rim. The vent has to pass air out at least as fast as the truck pumps liquid in. Fill down a dip tube to the floor, and leave freeboard for thermal expansion at the 140 F limit rather than gauging by how close the level is to the manway.
2. Outlet. Name the chemical and the draw-off you want when you order and we will confirm what this tank accepts at the base, in what material and with what gasket, before anything is drilled. The first valve sits on its own support and never hangs on the shell, with a flexible connector to hard pipe; a transfer pump goes below the take-off with a low-level float.
3. Drawing. Snyder's drawing for 1830400N48 is linked under Technical Drawing on this page.

Sizes nearby

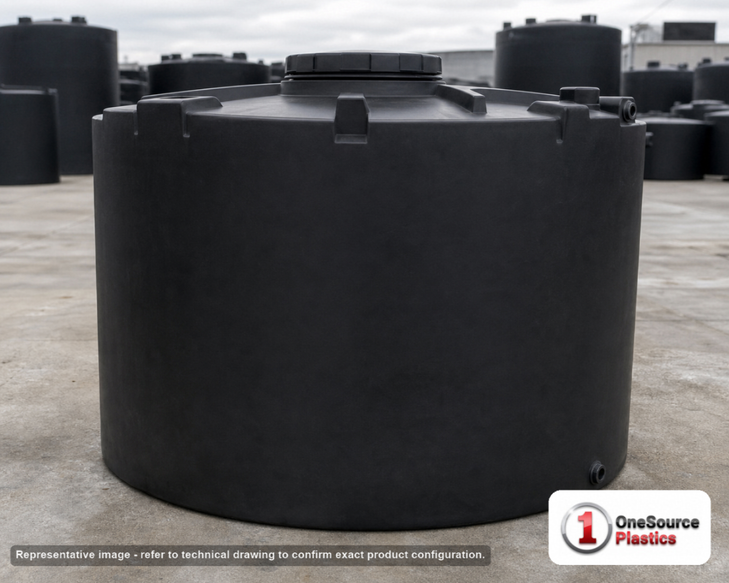

The same shell in other grades and colours: the 1300 gallon black crosslinked tank 1830400N46 and the 1300 gallon crosslinked tank 1830400N40, and the 1300 gallon natural crosslinked heavy duty tank 1830400N42 for a plant that wants to see the level through the wall. One step down, narrower and taller: the 1200 gallon crosslinked tank 1830200N40. One step up, low and wide: the 1500 gallon black heavy duty tank 1770000C34.

Shipping and receiving

The tank ships LTL at freight class 300 from Snyder's Chowchilla, California plant, 72 by 72 by 87 inches on a pallet, 320 lb. Run your ZIP through the freight cost estimator. Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight. Unload with a forklift on long forks or a strap under the body, never through the manway. Check 1830400N48 against the bill of lading, set it on the engineered pad, band it, and fill it with water the first time, in daylight, walking the base and the pad edge before the real liquid arrives.
