Snyder Industries 1500 Gallon ASTM Black Heavy Duty Vertical Storage Tank

Four walls on one seven foot circle, and why the N51

Start with the part family, because every tank in it weighs 260 pounds and stands six feet, and nothing on the outside tells them apart. The 1770000C34 is the black tank without a stated heavy rating on this sheet; the 1770000N42 is the natural cross-linked tank by its name and the 1770000N48 the black cross-linked tank by its name, each rated as its own sheet says; and the N51 is the black linear polyethylene tank the sheet rates at 1.9. That is the reason to buy it: a dense liquid, a specification that asks for linear polyethylene rather than cross-linked, and a black wall for a liquid that light spoils, all in one part number. When the specification asks for cross-linked, the N48 is the black tank to look at; when the liquid is light and the rating does not matter, the C34 is the same shell in a lighter duty. The low shape is the other half of the argument. Six feet of height clears a shed eave, a lean-to, or a chemical room framed before anyone planned a tank, and the manway is reached from a step, not a platform; the cost is floor, a seven foot two inch circle that carries 23,769 pounds at the rating in full contact, engineered per the concrete pad sizing guide and set inside a berm sized to the tank where the liquid is regulated. Strap it while it is empty; a black tank grows in the sun and loosens what was tight. Black polyethylene passes no light to the liquid, runs warmer than white, and hides the level, so a sender read at the ground is the gauge. Whether 1,500 gallons covers the draw between deliveries is a question for the tank sizing calculator; the reserve and the headspace a dense liquid needs as it warms are in the tank sizing guide.

The 1770000 shell, with the tall 1,300 and 1,550 for comparison

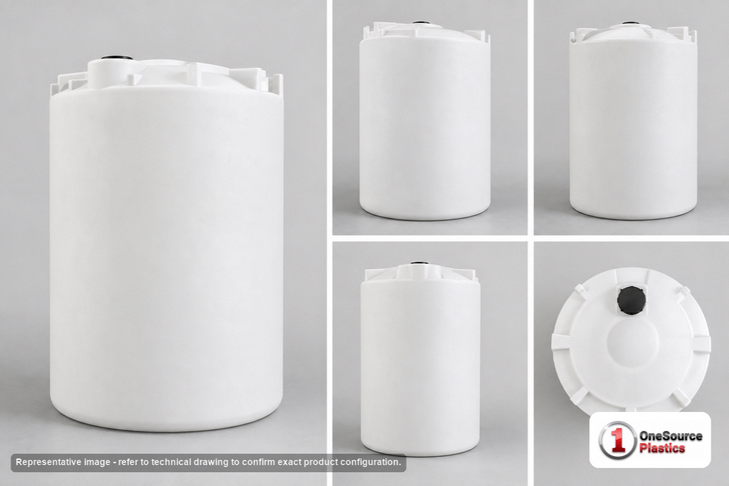

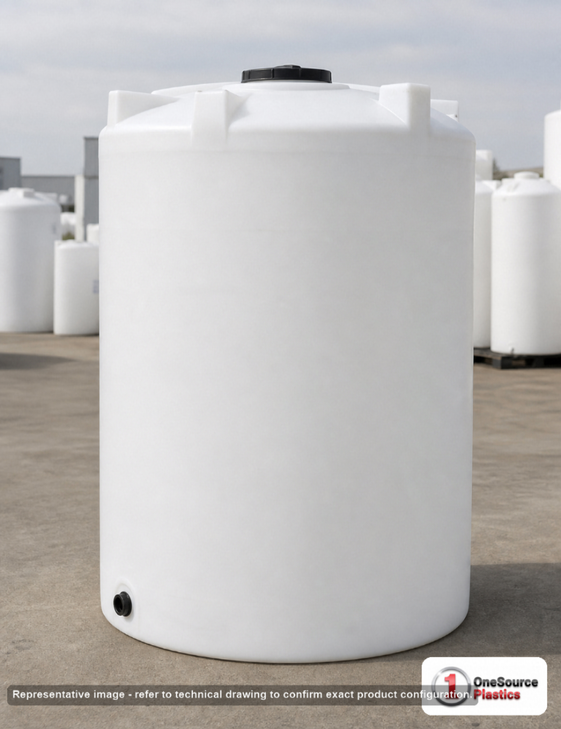

The top four rows are the same molding; the sheet separates them by resin and rating, not by size or weight. Step off the wide base and the 1830400N40 holds 1,300 gallons on a six foot circle at 87 inches, a cross-linked tank by its name for a site that has some height and less floor, and the 1840000C26 stands 1,550 gallons at ten feet four inches on a 64 inch circle for the site that has height to spare and wants a natural wall to read the level through.

Need a different size? Every tank in the table is in stock programs; ask for a quote on the one that fits, or call 866-418-1777.

Venting a dense fill into a wide, shallow tank

• Vent and fill: an 18 inch threaded, vented manway at 72 inches, reached from a step. A dense chemical arrives by tanker, and a tanker pump displaces air faster than a lid vent passes it; size the vent to the delivery pump before the first load, or open the manway for the fill with someone at it. A wide tank fills fast for its height, so the person at the manway watches the level, not the truck. The fill goes down a dip tube, the vent is screened, and it runs outdoors on anything that fumes.
• Headspace: the fill stops at the shoulder. On a shallow tank the headspace is a thin band, and a dense liquid expanding in the afternoon sun uses it up faster than a tall tank would; inspect the wall above the liquid line with a light at every opening.
• Outlet: the outlet field on the sheet reads 15, and we print it as the sheet gives it. Name the liquid at order and the bulkhead fitting, gasket and bolting are matched to it, with a flanged transition, a flexible connector to hard pipe, and the first valve carried on its own support.
• Service limit: 120 F / 48 C.

Six feet of a liquid nearly twice the weight of water is a modest head, so the pump on this tank sits below the outlet where gravity primes it, and a low-level float stops it before it draws air. A rigid line bolted straight to the bulkhead puts every bit of pump vibration and pipe expansion into the wall, which is why the connector is flexible and the valve sits on its own support. The lid stays on between deliveries, the wall names the one chemical inside, and the vent screen is checked when the lid comes off. Where it freezes, the valve and the first pipe run get trace heat or insulation; the body takes ice from the top down.

Dense liquids under a low roof

Ferric and the other dense coagulants at a small water plant with a low chemical room, brine at a food plant, concentrated acid at a plating shop that stores under a lean-to, and a heavy fertilizer solution at a co-op that wants it dark. Where site rules ask for a second wall, the Captor double wall freeboard guide works through what a contained tank gives up in usable volume at this size, and a dense liquid gives up more. A fire reserve belongs in a tank bought for water; the fire-water reservoir design guide covers why a heavy chemical wall is the wrong buy for that job, though this one holds water without complaint.

A wide load at class 400 from Lincoln or Philippi

The 1770000N51 ships from Lincoln, Nebraska or Philippi, West Virginia, whichever is nearer, as freight at class 400 as the sheet lists it; at 86 inches across and 72 inches long on the deck it is a load the carrier handles outside the trailer, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. A forklift with long forks sets 260 pounds on the pad with the forks under the body, never through the manway, and the straps go on the same day. Water first: fill it to the shoulder, hold it, watch the pad edge and the base fitting, then drain and dry before the chemical goes in. Then leave it alone for a day before the plumbing goes on; a settled tank is a quiet one. Keep the pallet under cover, because a tank this wide that ever moves again moves easier on it, and a wide load is the one that gets moved. Keep the first delivery's paperwork with the tank; strength and date on day one is the baseline for every batch after.
