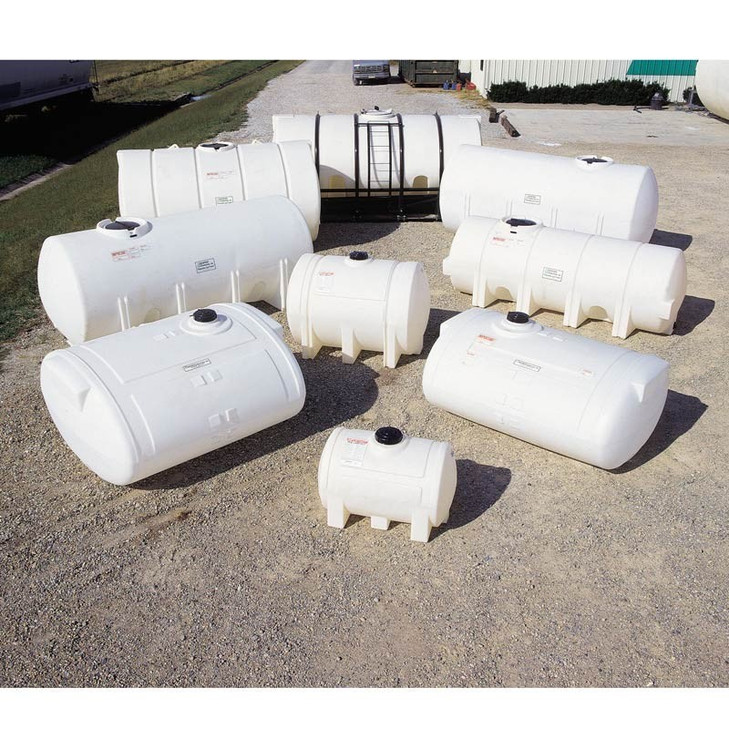

Snyder Industries 2000 Gallon Plastic Horizontal Leg Tank with Securing Hoops

Where it goes

Buy this mould when the deck is long and narrow. At 62 inches wide it leaves room beside it on a flatbed for a pump and an inductor, and at 160 inches long it uses the length of a tandem or triple axle trailer that a wide, low tank would waste. The trade is height: at 70 inches tall the centre of gravity sits higher than on the wide version, so keep the speed down on rough field roads and strap it at both ends. Full of water it is more than eight tons, so the trailer's axle ratings and the tow vehicle decide whether it belongs there, not the tank. Run the straps through the securing hoops, never over the top opening, set the weight over the axles, and re-tension after the first few miles because a polyethylene tank settles onto its legs under load. The legs need a flat, continuous deck for the full 160 inches. Our guide to applicator and leg tanks for fertilizer and the DOT non-roadable trailer rules explains when a nurse trailer counts as a cargo tank.

What goes in it

Liquid fertilizer is the usual load, water the second. Check anything else in our chemical compatibility guide first; urea solution, calcium chloride, potassium hydroxide and phosphoric acid are the common questions at this size. The 1.9 rating puts every common blend inside the limit. Keep the liquid under 120 F. A nurse tank sits full for days and a blend separates in a still tank; our note on fertilizer blend stratification explains how to catch it before the spreader runs off spec. If the tank will hold something a spill plan covers, our Captor double wall walkthrough explains when a single wall leg tank is not the right answer. The tank sizing calculator and tank sizing guide will tell you how many sprayer fills 2000 gallons covers.

Openings and fittings

1. Outlet. 2 inch, the size most farm valves, camlocks and transfer pumps already are, so match the hardware to it rather than reducing. The thread form and fitting material are not listed on this page; ask us before you buy the valve.
2. Top opening. 18 inches: wide enough to fill from a pump discharge, to drop a float or a suction line in, and to get a head and shoulders in to inspect and clean. Confirm with us whether it ships as a lid or a manway before you buy a replacement cover.
3. Hoops. The securing hoops come with the tank. Strap through them, not over the shell.
4. Drawing. Snyder's drawing for this tank, linked under Technical Drawing on this page, shows the outlet position, the hoop positions and the leg layout.

Sizes nearby

Snyder makes its 2000 gallon leg tank with securing hoops on a second, wider mould as well: part number 1002300C37, part number 1002300N45 and the black version, part number 1002300N51; compare the drawings against your deck before you choose. One size down is the 1685 gallon leg tank with securing hoops; one size up is the 2600 gallon leg tank.

Shipping and receiving

The tank ships as oversize freight from Snyder's Lincoln, Nebraska plant, 160 by 62 by 70 inches at 580 lb, on a truck that needs room to turn and a forklift or a crew to unload. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 7510000C26 on the bill of lading, look at every leg, the hoops and the outlet boss for transit damage, and fill it with water the first time before it carries fertilizer.

Questions before you order? Call 866-418-1777.
