A 2035 gallon black elliptical leg tank for a flatbed, a nurse trailer or a yard
The Norwesco 2035 gallon black horizontal elliptical leg tank, part number 40775, is a polyethylene transport and storage tank 142 inches long, 84 inches wide and 56 inches tall, weighing 685 lb empty. The elliptical shape keeps the centre of gravity low for a tank this size, and the moulded legs let it sit flat on a trailer deck or a flatbed without a cradle. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet and a 16 inch threaded vented manway on top. The tank is rated for liquids up to 1.9 specific gravity, which covers water, every common liquid fertilizer and most of the chemicals polyethylene handles; 2035 gallons of water weighs 16972 lb and the rating allows contents up to 32247 lb. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs the tank with a 5 year warranty. Black keeps light out of the contents, which slows algae in water and protects light sensitive liquids.
Is this the right size? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the trailer or truck you are putting it on.
On a trailer, a flatbed or the ground
At 142 by 84 inches this tank takes most of the deck of a tandem axle trailer or a flatbed truck, and at 56 inches tall it keeps the load low. Full of water the contents alone weigh close to 17000 lb, and more with fertilizer, so the trailer's axle rating and the tow vehicle, not the tank, set the limit on what you can move. Strap it through the moulded leg recesses, never over the manway, and use the bands Norwesco makes for this tank wherever it rides on a vehicle; the add-ons box on this page lists them. On the ground it needs a flat, continuous surface under all the legs, with no edge or step under any of them. Our guide to Norwesco applicator and leg tanks for fertilizer and the DOT non-roadable trailer rules covers how a tank this size is classified on the road, and the farm fleet DOT classification guide covers the agricultural exemption.
What goes in it
Water, liquid fertilizer and the farm and treatment chemicals that polyethylene handles are the normal loads. The 1.9 rating matters here: liquids heavier than water, such as many fertilizer blends, are what a heavy duty leg tank is for. Before anything else goes in, check the liquid in our chemical compatibility guide; the entries for urea solution, DEF, calcium chloride, sodium hypochlorite and phosphoric acid are the ones buyers of this tank ask about most. For the volume itself, use the tank sizing calculator and tank sizing guide.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed. Your valve, camlock or hose adapter threads straight into it. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
- Inlet. None is fitted. Fill through the manway, or tell us where you want a fill port and we will talk through the options before the order ships.
- Manway. A 16 inch threaded vented manway on top: wide enough to fill from a hose or a pump, to drop a float in, and to get a hand and a brush inside to clean.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the exact outlet and manway positions and the leg layout for strap planning.
Sizes nearby

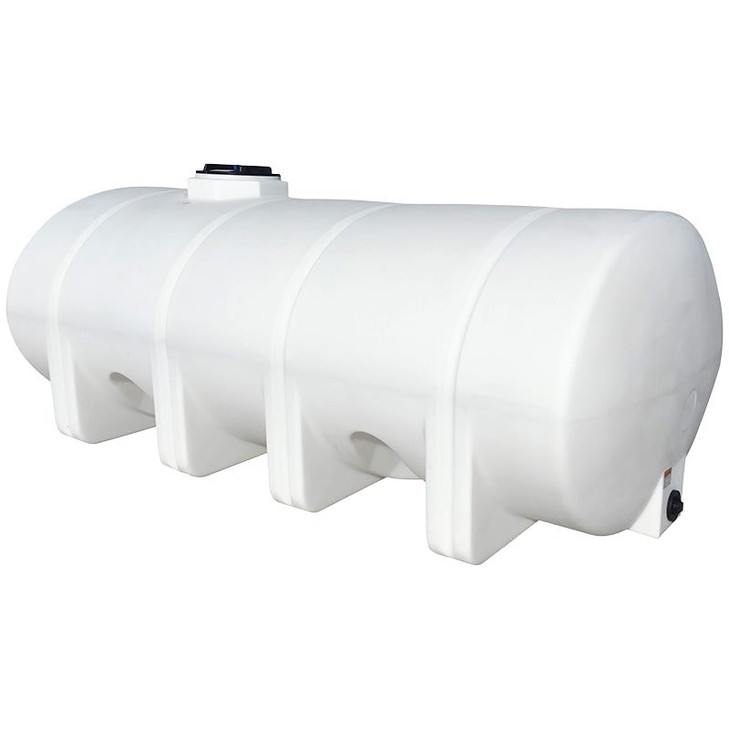

Same tank in other colours: the 2035 gallon white elliptical leg tank for liquids where you want to see the level through the wall, the 2035 gallon blue elliptical leg tank, and the standard duty 2035 gallon black elliptical leg tank for lighter liquids. One size down: the 1635 gallon elliptical leg tank. One size up: the 2635 gallon heavy duty elliptical leg tank.
Shipping and receiving
The tank ships LTL from the nearest of Norwesco's plants in Fairfield, Texas; Griffin, Georgia; Hanford, California; Lancaster, Ohio; Shawnee, Oklahoma; St. Bonifacius, Minnesota; or Tooele, Utah. It travels at its own size, 142 by 84 by 56 inches and 685 lb, which means a flatbed or a truck with a liftgate rated for it, and a forklift or a few people at your end. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Bands ordered with the tank travel with it. At the tailgate, check the part number against 40775 on the bill of lading, look at all the legs for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777, or request a written quote for a job that needs paperwork.
Freight and documents
Ships from: Hanford, CA; Griffin, GA; St. Bonifacius, MN; Lancaster, OH; Shawnee, OK; Fairfield, TX; Tooele, UT. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40775.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Norwesco 2035 Gallon HDPE Horizontal Elliptical Leg Tank in Black video (68 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
