2,000 gallons at 73 inches, with a siphon outlet

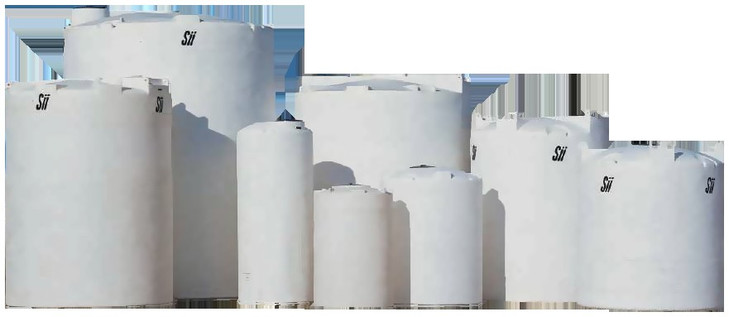

The Snyder 32166 holds 2,000 gallons of liquid in a white high density linear polyethylene shell 96 inches across and 73 inches tall, weighing 359 pounds. Its wall is rated for a specific gravity of 1.5, or 25,020 pounds of contents against 16,680 for water, and its outlet is a 2 inch polypropylene female NPT bulkhead fitting with a siphon tube: it draws from the floor through a fitting mounted higher on the wall, so the tank empties completely while sitting flat on a deck or in a containment basin with no clearance underneath. A 20 inch threaded, vented manway on top.
Buying for a site, a fleet or a district? Request a written quote with freight to your ZIP, or add it to your cart above and call 866-418-1777 with any question on the fit.
Eight feet of floor, six of height
Full, the 32166 loads a 96 inch circle to 25,020 pounds at the rating, a slab or a deck checked for that load in full contact under the whole floor. At 73 inches it clears a six foot header with room for the lid, and a low tank does not tip or catch wind, so the site work is the floor and the pipe. The four 2,000 gallon vertical tank buyers guides (64 x 153, 90 x 84, 93 x 80) compare the tall and low shapes at this volume across makers; the tank sizing calculator and the tank sizing guide settle the volume.
Snyder's 1,900 to 2,500 gallon liquid tanks
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 32166 (this tank, 1.5 SG, siphon outlet) | 2,000 | 96 x 73 in | 359 lb |
| 5050000C26 | 2,000 | 90 x 88 in | 340 lb |
| 1780200N40 (tall) | 1,900 | 72 x 119 in | 445 lb |
| 32194 (1.5 SG, siphon outlet) | 2,500 | 96 x 90 in | 475 lb |
| 5090000C26 | 2,500 | 90 x 107 in | 450 lb |
The 5050000C26 puts the same 2,000 gallons on a 90 inch base at 88 inches, 15 inches taller and 19 pounds lighter, with a conventional bottom outlet. The 1780200N40 is the tall answer at 119 inches on a 72 inch base. The 32194 is this tank's bigger sibling, 500 more gallons on the same 96 inch base at 90 inches, with the same siphon outlet and rating.
Need a different size? Every tank in the table is in stock programs; ask for a quote on the one that fits, or call 866-418-1777.
What is fitted
- Outlet: 2 inch polypropylene female NPT bulkhead fitting with an internal siphon tube to the floor; a PVC or CPVC adapter, a flexible transition, and a valve supported off the deck. A siphon outlet needs a pump or a prime; it does not gravity-drain below the fitting height.
- Access: 20 inch threaded, vented manway, at chest height.
- Service limit: 120 F / 48 C.
A white 73 inch tank shows its level in daylight and reads any sender easily. Fill through a dip tube so dense liquid does not splash the lid, keep the vent clear, and prove the siphon draws to the floor on the water test before the first product fill.
The work it does
Brine and fertilizer on a farm trailer, dilute treatment chemicals in a low chemical room, a mezzanine reagent tank with no clearance underneath, and bulk water where a heavier wall is wanted outdoors. A low, heavy tank is the right shape for a trailer: it does not tip and does not catch wind. In a freezing climate, house it or keep it above freezing when it holds a solution.
Freight for an eight foot tank
At 96 inches across the 32166 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator prices it for your ZIP, and the listed price is before freight. A forklift with long forks sets 359 pounds on the pad. Water-fill to the manway, hold it, and drain through the siphon to prove it before the product goes in. Note the pad height and the outlet height on the site plan while the tape is out; the next pipe run will need both. Mark the vent and the outlet on the outside of the shell so nobody caps the wrong one in the dark.
Freight and documents
Ships from: Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 32166.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
