2,500 gallons on a 90 inch base in the 1.9 specific gravity wall

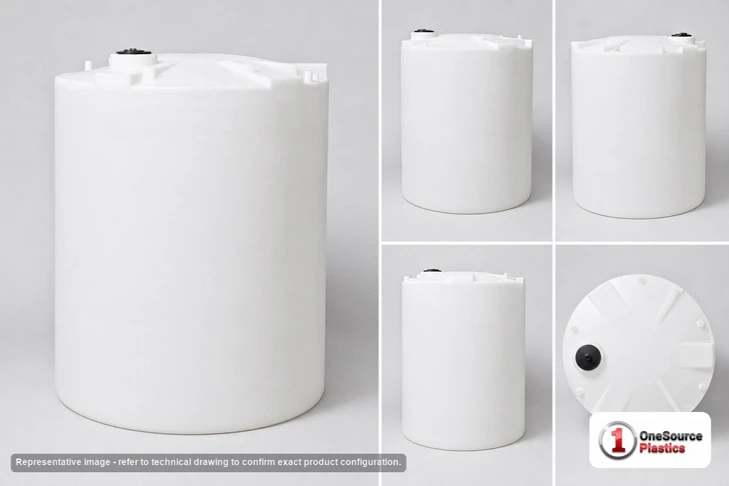

The Snyder 5090000C26 is a natural white polyethylene vertical storage tank, 90 inches across and 107 inches tall, holding 2,500 gallons at 450 pounds. The sheet rates its wall for a specific gravity of 1.9, or 39,615 pounds of contents against 20,850 for water, which makes this the 2,500 for concentrated acid, ferric and the heavy brines at strength on the seven and a half foot base, with the 18 inch threaded, vented manway at nine feet reached from a step and a white wall that shows the level and the color of what is in it. A 2 inch polypropylene female NPT bulkhead outlet, a 3 year warranty, and freight at class 400 from Lincoln, Nebraska or Philippi, West Virginia.
Have the liquid and the ZIP? That is all 866-418-1777 needs to confirm the fit; or price freight to your ZIP and add it to your cart above.
Half a tanker of dense chemical
A 1.9 wall is sized for a liquid nearly twice as dense as water, and 2,500 gallons of it is half a tanker: the delivery a small plant takes when a full load would sit too long. Full at the rating it puts 39,615 pounds on a 90 inch circle, and a rotationally molded floor bears on all of it, so it stands on an engineered slab under the whole floor, per the concrete pad sizing guide, with a berm sized to the tank, with the empty tank strapped against wind before the first fill. The white wall shows a chemical's color and level through it, which is what tells two tanks apart when they stand side by side.Whether this volume covers the draw between deliveries is a question for the tank sizing calculator; what to hold back as reserve, and how much headspace a dense chemical needs as it warms, is in the tank sizing guide.
Grades on the 90 x 107 inch tank, and the sizes beside it
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 5090000C26 (this tank, 1.9 SG) | 2,500 | 90 x 107 in | 450 lb |
| 5090000C34 | 2,500 | 90 x 107 in | 450 lb |
| 5090000C37-BLACK (black) | 2,500 | 90 x 107 in | 450 lb |
| 8140000C37 | 2,500 | 90 x 107 in | 450 lb |
| 5090000N33 | 2,500 | 90 x 107 in | 425 lb |
| 5050000C26 | 2,000 | 90 x 88 in | 340 lb |
| 8390000C26 (low profile) | 2,650 | 102 x 97 in | 510 lb |
The C34 and the C37-BLACK are the other general grades in this shell at this weight, white and black, and the 8140000C37 is the same shell under a second part family, each rated as its own sheet says. The N33 is the lighter wall in this shell for water and liquids that do not need this one. The 5050000C26 is the 2,000 on this base at 88 inches, and the 8390000C26 lays 2,650 gallons down to 97 inches on a 102 inch base.
Found the 2500 gallon tank in the table? Freight to your ZIP is one click; add it to your cart above, or call 866-418-1777 to check the grade.
Outlet below, manway above
- Outlet: 2 inch polypropylene female NPT bulkhead fitting, at the base; tell us the liquid when ordering and the fitting is matched to it, with a flanged transition, a flexible connector to hard pipe, and the valve supported off the pad in the material the chemical calls for.
- Access: 18 inch threaded, vented manway, 107 inches up, reached from a step; fill through a dip tube, vent outside on acid and caustic service, and size the vent for the delivery pump.
- Service limit: 120 F / 48 C.
Nine feet of liquid above the outlet is a flooded suction to the last few inches; mount the pump below the outlet for a gravity prime, and fit a low-level float so it never pumps air. Keep the manway closed against vapor loss, label the tank so the fire inspector and the workplace inspector read the same thing, and inspect the headspace wall from the manway with a light; that is where a chemical tank ages first. Where winters freeze, the valve and the first pipe run are what crack; wrap or trace them, and leave the body to ice over from the top without harm.
Who buys the 2,500 in this wall
Ferric and other dense coagulants at a small water plant, caustic or acid at an industrial plant, brine at a food plant, and a fertilizer solution tank on a farm. It will hold water, but a fire reserve wants a water wall, as the fire-water reservoir design guide makes plain. The industrial water reuse tank topology article places a chemical tank this size in a reuse train.
Shipping from the Plains or the East
The 5090000C26 ships from Lincoln, Nebraska or Philippi, West Virginia, whichever is nearer, as LTL freight at class 400, the class light, bulky tanks take; at 90 inches across it goes outside the trailer, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. A forklift with long forks sets 450 pounds on the pad. Fill it with water to the manway once, hold it, and check the outlet fitting and the pad edge, then drain and dry before the chemical goes in; the log takes the date and strength of every load after that. Check the strap tension a week after the first fill; a tank settles a little, and the strap that was tight is loose.
Freight and documents
Ships from: Lincoln, NE; Philippi, WV. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5090000C26.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
