The green 2,000 gallon tank that clears a low eave
The Snyder 32555 is the green version of the 96 inch, 73 inch tall 2,000 gallon vertical tank: same mold and same 263 pound wall as the black 32553, in the color chosen for drinking water standing in the open. Wide and squat, it keeps its center of gravity low, keeps the 20 inch manway reachable from the ground, and fits under a carport or a barn eave that a 90 inch tank cannot. Rated for a specific gravity of 1.0, with a 1-1/2 inch polypropylene inlet and a 2 inch polypropylene outlet.
Talk to a person first? 866-418-1777 reaches a tank specialist, not a call center; or see freight to your ZIP and add the 2000 gallon tank to your cart above.
Green, and when to take the black
Both colors block the light that grows algae. Green reads as potable water beside a house and blends into a yard; black is the plain choice for stock, irrigation or fire water on a working site. Same wall, same fittings, same pad, so choose by what the tank holds and who will see it. If you are weighing this tank against the other makers' 2,000 gallon verticals, the Snyder vs Norwesco vs Chem-Tainer 2,000 gallon comparison puts the three side by side on wall, footprint and fittings.
Same capacity, other shapes
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|

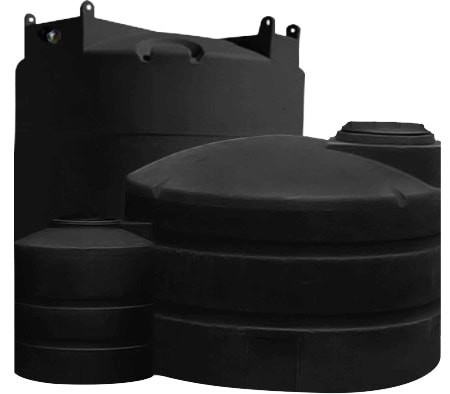

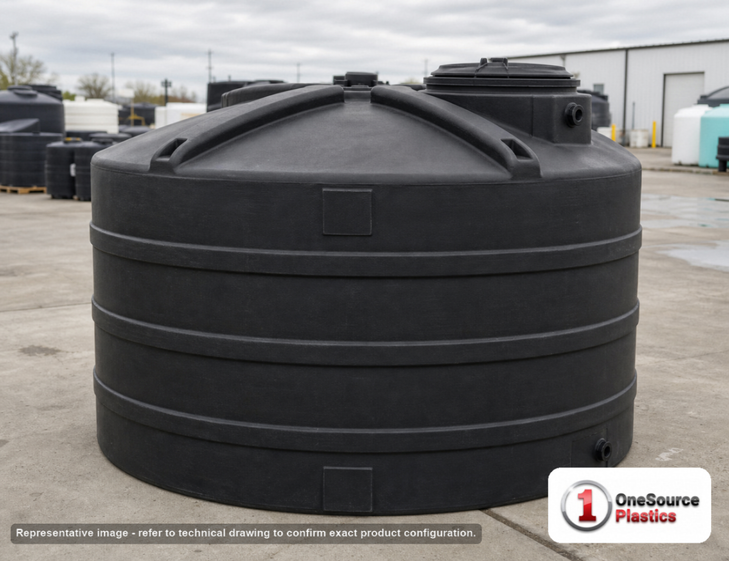

| 32547 | 1,600 | 86 x 71 in | 217 lb |
| 32553, black | 2,000 | 96 x 73 in | 263 lb |
| 32555 (this tank) | 2,000 | 96 x 73 in | 263 lb |
| 32747, straight wall | 2,500 | 96 x 90 in | 300 lb |
The 2,500 gallon straight-wall tank adds 500 gallons on the same 96 inch floor for 17 inches of height and 37 pounds of resin. The 1,600 gallon 32547 saves 10 inches of floor and 2 inches of height. If the tank ever has to be moved empty across a yard, the low shape here is the one two people can handle. Every tank in the table shares the 96 inch floor except the 1,600, so a pad poured for this one takes the 2,500 later.
Still deciding between these? Freight to your ZIP often settles it; the wider tanks ship differently. Or call 866-418-1777 and we will walk the table with you.
The base under 16,680 pounds
Full, the tank holds 16,680 pounds of water on a 96 inch circle. A level pad in full contact with the whole floor is the rule; the concrete pad sizing guide works the ACI 360R-10 method and says when compacted base is enough. Service limit is 120 F / 48 C.
Ports
- Inlet: 1-1/2 inch polypropylene female NPT bulkhead fitting on top.
- Outlet: 2 inch polypropylene female NPT bulkhead fitting at the base; valve, union, pump.
- Access: 20 inch threaded, vented manway. Do not seal the vent; a fast pump-out on 2,000 gallons pulls a lot of air.
Plumb the outlet with a full-port valve first and a union between valve and pump, and use the top inlet for the fill line or a float valve so the manway stays closed.
A sight tube on the outlet is the simplest level gauge; the level gauge selection guide covers sensors.
Where 2,000 gallons goes
A household or farmstead reserve, a rainwater store that covers a dry month, and the point where a private fire reserve becomes real; the fire-water reservoir design guide sizes it against NFPA 22. In a reuse system it collects ahead of treatment, per the industrial water reuse topology guide. Confirm the gallons against your draw with the tank sizing calculator and the tank sizing guide.
Oversize freight
At 96 inches across the tank ships as oversize freight (NMFC 156600) on a flatbed, quoted by lane through the freight cost estimator; the listed price is before freight. Empty, two people can walk it off; full, it is not moving again, so set it where it will live and fill it in stages, watching the pad.
Freight and documents
Ships from: Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 32555.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
