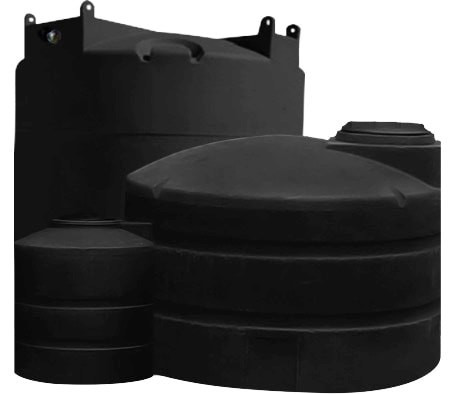

Snyder Industries 3000 Gallon Black Vertical Water Storage Tank

Twelve and a half tons of water on a 102 inch circle

At 96 inches tall this is the 3000 gallon tank for a barn, a pump house, a lean-to or a basement walkout where a taller tank will not go in or will not clear the beams, and its 102 inch base is the trade for that height. The base carries 25,020 lb of water and has to be flat, continuous and free of stones under the whole circle; a cracked or sloped slab is the usual cause of a stressed bottom, so call us if the pad is in question. Well storage, rainwater collection, livestock water, irrigation make-up and a fire reserve are the normal jobs: the fire-water reservoir design guide covers sizing a reserve for a rural property and the industrial water reuse tank topology guide covers rainwater and reuse storage on a commercial site. This is a water tank at a 1.0 rating; for fertilizer or chemicals, look at Snyder's higher rated tanks instead.

Ports and access

1. Inlet. A 1-1/2 inch polypropylene female NPT bulkhead fitting. Your fill line or pump discharge threads straight into it.
2. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. Your valve or hose adapter threads into it; support the valve and the first length of pipe so the fitting carries water, not hardware.
3. Manway. An 18 inch threaded vented manway on top: wide enough to fill from a hose, drop a float or a submersible pump in, and get a brush inside to clean. At 96 inches it is a step ladder job, not a scaffold.
4. Drawing. Snyder's drawing for this tank, linked on this page under Technical Drawing, shows the exact inlet and outlet positions for planning the pipe runs.

The 3000 gallon water tanks, and the shapes either side

Snyder makes 3000 gallons of water storage in several shapes. Low like this one: the 3000 gallon black straight wall vertical water tank. Taller on a smaller footprint: the 3000 gallon black vertical water tank and the 3000 gallon green vertical water tank. One step down: the 2600 gallon green vertical water tank. One step up: the 3500 gallon black vertical water tank. The tank sizing calculator covers how many gallons the job needs.

Shipping and receiving

The tank ships LTL at freight class 300 from Snyder's Lincoln, Nebraska plant, 102 by 102 by 96 inches on the pallet at 670 lb. Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight. A forklift or three people with straps make the unload a short job. At the tailgate, check WB70 against the bill of lading, look over the base and both fittings for transit damage, and fill it with water and let it stand before you connect anything, watching the fittings and the pad for the first day.
