4,500 gallons in black at 1.9 specific gravity, twelve feet on an eight and a half foot base
The Snyder 7420000C34 is a black polyethylene vertical storage tank, 102 inches across and 142 inches tall, holding 4,500 gallons at 900 pounds. It is the upright 4,500: most of a tanker on a 102 inch circle at just under twelve feet, with the 18 inch threaded, vented manway opened from a platform, in a black wall that keeps light off the load. Its wall is rated for a specific gravity of 1.9, or 71,307 pounds of contents against 37,530 for water, for concentrated acid, ferric and the heavy brines at strength. A 3 inch polypropylene female NPT bulkhead outlet, a 3 year warranty, and freight at class 300 from Chowchilla, California or Lincoln, Nebraska.
Is this the right 4500 gallon tank? Call 866-418-1777 with the liquid, the site and the ceiling height, or get freight to your ZIP and add it to your cart above.
Upright or low, the same 4,500
Snyder makes 4,500 gallons two ways, this column on a 102 inch base and a low tank on a 143 inch one, and the roof decides: under twelve feet with a tight floor, this one; under eight feet with a yard, the other. Full at the rating it puts 71,307 pounds on a 102 inch circle: a slab designed to the concrete pad sizing guide that bears the whole floor, ringed by a berm sized to the tank, with the empty tank strapped against wind before the first fill. Black polyethylene absorbs the ultraviolet that ages a white wall and passes no light to the liquid; it runs warmer in the sun, so shade if the chemical must stay cool, and it hides the level, so a sender read at the ground is the gauge.Use the tank sizing calculator to confirm the volume against feed rate and delivery interval, then the tank sizing guide for the reserve and the freeboard a heavy liquid needs when it warms.
The 4,500s upright and low, and the 4,400 and 4,600
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 7420000C34 (this tank, black, 1.9 SG) | 4,500 | 102 x 142 in | 900 lb |
| 7000400N33 (low) | 4,500 | 143 x 91 in | 900 lb |
| 7000400N29 (low) | 4,500 | 143 x 91 in | 900 lb |
| 7000400N32 (low) | 4,500 | 143 x 91 in | 900 lb |
| 7000500N40 | 4,600 | 120 x 116 in | 1,450 lb |

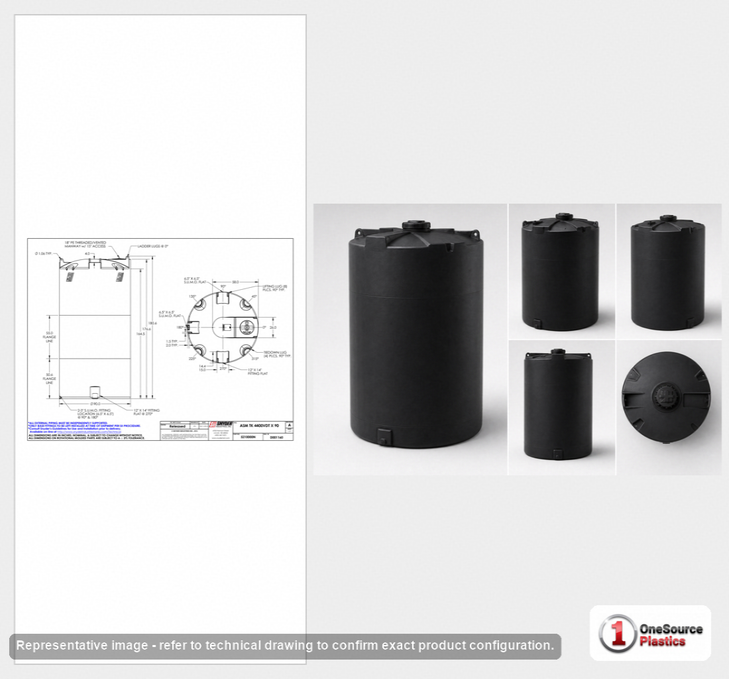

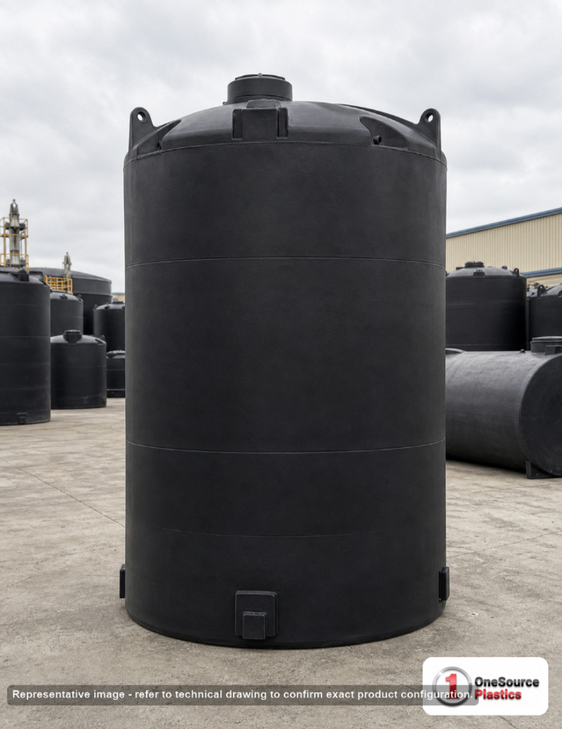

| 5210000N40 (slim) | 4,400 | 90 x 182 in | 1,100 lb |
The 7000400 N grades are the low 4,500 on a 143 inch base at 91 inches in the other chemical walls, at this tank's weight. The 7000500N40 stands 4,600 gallons on a 120 inch base under ten feet, and the 5210000N40 puts 4,400 on a 90 inch base at 182 inches for the narrowest floor.
Comparing across brands too? Call 866-418-1777; we carry Norwesco, Snyder, Chem-Tainer, Enduraplas and Bushman and will say which one fits, or price the freight first.
Fittings on a tall tank
- Outlet: 3 inch polypropylene female NPT bulkhead fitting, at the base; tell us the liquid when ordering and the fitting is matched to it, with a flanged transition, a flexible connector to hard pipe, and the valve supported off the pad in the material the chemical calls for.
- Access: 18 inch threaded, vented manway, 142 inches up; a platform with a rail for anyone who opens it. Fill down a dip tube, not over the rim; run the vent outside on a chemical that fumes; and size that vent to the truck's pump.
- Service limit: 120 F / 48 C.
Twelve feet of liquid above a 3 inch outlet is a strong flooded suction, and the outlet drains a full tank in a working shift; the pump sits below the outlet and primes itself, and a low-level float stops it before the tank runs dry. Keep the manway closed against vapor loss, label the one chemical the tank holds, and inspect the headspace wall from the manway with a light. Cold climates: heat-trace or insulate the outlet valve and the first pipe run, and stop worrying about the body, which ices from the top down without harm.
Who buys the upright 4,500
Coagulant or caustic at a water plant with a tall chemical room, acid at an industrial plant on a tight pad, brine at a food plant, and a fertilizer solution tank at a co-op. Water is inside its rating, but the fire-water reservoir design guide explains why a fire reserve is a different tank. A reuse train stores treatment chemical between its stages, and the industrial water reuse tank topology article shows where a tank this size goes in it.
From Chowchilla or Lincoln
The 7420000C34 ships from Chowchilla, California or Lincoln, Nebraska, whichever is nearer, as freight at class 300 as the sheet lists it; at 142 inches long on the deck it is a permitted load, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. A crane stands 900 pounds up with straps under the body, never through the manway. A full water fill, held, with eyes on the pad edge and the outlet fitting, then drained and dried, is the test the tank gets once. Be there for the first delivery, start to finish, and write down what the level did. Write the fill date on the manway with a paint marker; it answers the first question anyone asks about a tank.
Freight and documents
Ships from: Chowchilla, CA; Lincoln, NE. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 7420000C34.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
