6,900 gallons in black, heavy duty, rated to 1.9
This Snyder heavy duty vertical tank holds 6,900 gallons in a black high density linear polyethylene shell 120 inches across and 153 inches tall, weighing 1,450 pounds. Its wall is rated for a specific gravity of 1.9, or 109,337 pounds of contents against 57,546 for water, and it is black for a reason: the pigment is a UV shield and a light block for a chemical that must not see the sun, and for an outdoor tank that will stand in it for decades. A 3 inch outlet at the base and an 18 inch manway on top, on a ten foot pad.
Buying for a site, a fleet or a district? Request a written quote with freight to your ZIP, or add it to your cart above and call 866-418-1777 with any question on the fit.
Why black, and what 1,450 pounds buys
Carbon black is the most effective ultraviolet stabilizer polyethylene has, and it is opaque, so a black tank protects both the wall and the liquid from light; that matters for hypochlorite, for peroxide and for any chemical that loses strength in daylight. The 1,450 pounds against 1,300 for the same shell in its lighter version is wall thickness: a shell that resists creep under a dense liquid and carries pipe load at the outlet. Full, it loads a 120 inch circle to 109,337 pounds at the rating, an engineered slab designed by the method in the concrete pad sizing guide, level enough that 153 inches of tank stands plumb. The tank sizing calculator sizes the volume to feed rate and delivery interval.
The 120 inch heavy duty family
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 6,900 gallon heavy duty, black (this tank) | 6,900 | 120 x 153 in | 1,450 lb |
| 7140000C137 | 6,900 | 120 x 153.5 in | 1,300 lb |
| 7000000C137 | 6,000 | 120 x 132 in | 1,155 lb |
| 7370000N52 | 7,900 | 120 x 177 in | 1,900 lb |
The 7140000C137 is the same shell with 150 fewer pounds of resin, for the liquid that does not need the full wall. The 7000000C137 is 21 inches shorter for 900 fewer gallons, and the 7370000N52 reaches 7,900 gallons at 177 inches with the heaviest wall in the family. All stand on the same ten foot pad.
Need a different size? Every tank in the table is in stock programs; ask for a quote on the one that fits, or call 866-418-1777.
Openings and instruments
- Outlet: 3 inch, at the bottom of the sidewall; a flanged transition, an expansion joint, and a valve supported off the slab, with the fitting re-checked after the first full fill.
- Access: 18 inch manway, 153 inches up; vent outside on caustic and acid service, fill through a dip tube to the floor, and size the vent for a tanker's unload rate.
- Service limit: 120 F / 48 C.
A black wall hides the level, so plan the sender: a hydrostatic unit at the outlet or radar on the manway, chosen for the chemical. A black tank needs a light label panel so the hazard diamond and pictograms read from the door. Strap the empty tank against wind, and keep the vent clear so a fast draw cannot pull a vacuum on the wall.
In service
Outdoor bulk storage of light-sensitive chemicals at treatment plants, caustic and coagulant at plants that take full tanker loads, and, with water in it, a fire reserve in full sun sized under NFPA 22 as the fire-water reservoir design guide describes, with a wall that will outlast a water tank's. Black warms its contents in full sun; shade the tank where the site allows and draw from the base.
Freight and unloading
At 120 inches across and 153 inches long on the deck this is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator prices it for your ZIP, and the listed price is before freight. A crane or a large telehandler lifts 1,450 pounds onto the slab. Strap it, water-test in stages with a hold, then drain and dry before the first tanker. The first fill is the only cheap time to find a problem, so do it in daylight with someone watching the base.
Freight and documents
Ships from: Lincoln, NE; Philippi, WV. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.

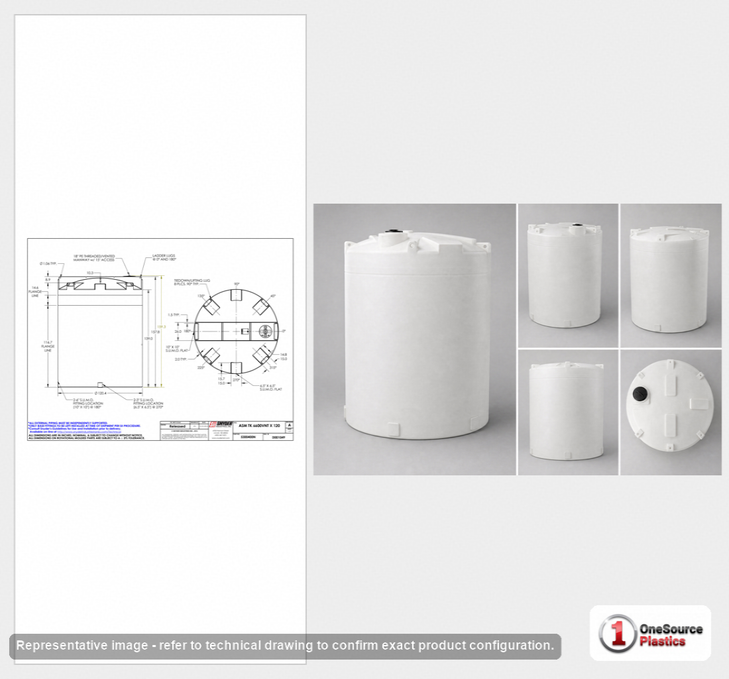

Technical drawing (PDF) for Snyder Industries 7140000C37-BLK.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
