9,800 gallons at 1.5 specific gravity, nearly eighteen feet tall on a ten foot base
The Snyder 7450000C37 is a natural white polyethylene vertical storage tank, 120 inches across and 215 inches tall, holding 9,800 gallons at 2,800 pounds. It is the tallest tank Snyder puts on a ten foot base: two tankers of liquid on the floor of one, with the 18 inch threaded, vented manway at nearly eighteen feet, for the site that has a high bay and no yard. Its wall is rated for a specific gravity of 1.5, or 122,598 pounds of contents against 81,732 for water, so it holds brine, fertilizer solution and coagulant as delivered as well as water. A 3 inch polypropylene female NPT bulkhead outlet, a 3 year warranty, and freight at class 300 from Lincoln, Nebraska.
Ordering for a plant or a bid? Request a written quote with freight to your ZIP for the file; a single 9800 gallon tank goes straight to the cart above.
Height is the whole design problem
Everything about this tank follows from the ratio of its height to its base. Full at the rating it puts 122,598 pounds on a 120 inch circle, the heaviest load per square foot in Snyder's line, so the slab is engineered per the concrete pad sizing guide, not poured by rule of thumb. Empty, eighteen feet of polyethylene on a ten foot base is a sail, so it is strapped or cabled to structure before the first fill and the straps are checked after the first windy week. The manway is opened from a platform with a rail, and the level is read at the ground by a sender, because nobody is climbing eighteen feet to look. Inside a berm sized to the tank when the liquid is regulated. The tank sizing calculator turns feed rate and delivery interval into a volume, and the tank sizing guide covers the reserve to leave in the bottom.
Grades on the 120 x 215 inch tank, and the 10,000 beside it
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 7450000C37 (this tank, 1.5 SG) | 9,800 | 120 x 215 in | 2,800 lb |
| 7450000C26 | 9,800 | 120 x 215 in | 2,800 lb |
| 7450000C34 | 9,800 | 120 x 215 in | 2,800 lb |

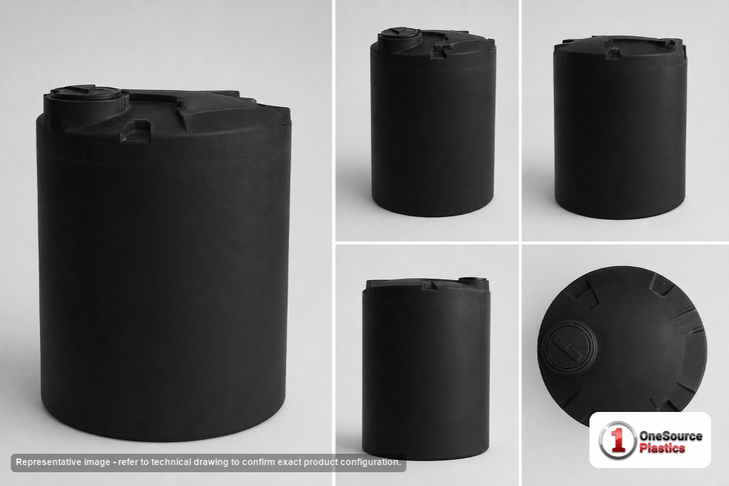

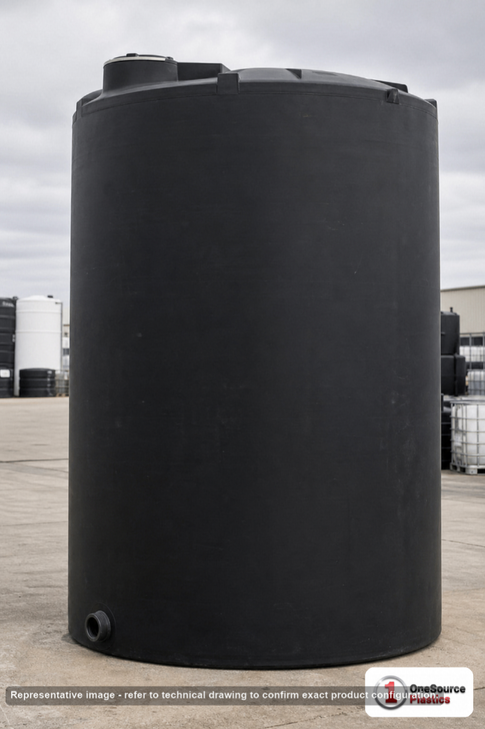

| 7450000C37-BLACK (black) | 9,800 | 120 x 215 in | 2,800 lb |
| 7450000N40 | 9,500 | 120 x 215 in | 2,800 lb |
| 32026 (water, wide) | 10,000 | 142 x 167 in | 2,170 lb |
The C26 and C34 are the other general grades in this shell at the same weight, and the C37-BLACK the black one for sun. The 7450000N40 is the heavier chemical wall in the same shell, listed at 9,500 gallons and the same 2,800 pounds on the sheet. The 32026 is the 10,000 gallon water tank on a 142 inch base at 167 inches, four feet shorter, for a site with yard and no bay.
Need the taller or the wider one? Every row links to its page with freight to your ZIP on each; 866-418-1777 will check the ceiling and the pad.
Bulkhead below, manway above
- Outlet: 3 inch polypropylene female NPT bulkhead fitting, at the base; a flanged transition, a flexible connector between the bulkhead and hard pipe, and the valve supported off the pad in the material the liquid calls for.
- Access: 18 inch threaded, vented manway, 215 inches up; a platform with a rail for anyone who opens it. Dip tube to the floor on the fill, vent to the outside on anything that gives off gas, and a vent big enough for the delivery pump.
- Service limit: 120 F / 48 C.
Eighteen feet of liquid above a 3 inch outlet is the strongest flooded suction in the family, and the outlet drains a full tank in a working shift; the pump sits below the outlet and primes itself, and a low-level float stops it before the tank runs dry. The headspace above the liquid is where the wall sees the most chemistry on a chemical tank; inspect from the manway with a light. Where it freezes, insulate or trace the outlet valve and the first pipe run; the body takes ice from the top down without harm.
Plants with a high bay
Coagulant or brine at a water plant with a tall chemical building, liquid fertilizer at a co-op with a high shed, process water at a food plant, and a fire reserve of the kind the fire-water reservoir design guide describes, where eighteen feet of head does part of the pump's work. Several are the storage stage of a reuse system for roof water and condensate, per the industrial water reuse tank topology article. If the liquid warrants a second wall, the Captor double wall freeboard guide explains what a contained tank gives up in usable volume, and why a single wall in a berm is the usual answer at this size.
From Lincoln, and the day it stands up
The 7450000C37 ships from Lincoln, Nebraska as freight at class 300 as the sheet lists it; at 120 inches across and 215 long on the deck it is a permitted load, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. A crane stands 2,800 pounds up with straps under the body, never through the manway, and the straps go on before the crane leaves. Fill it with water to the manway once and hold it, watching the pad edge and the outlet fitting, then drain and dry before any chemical goes in. Be there for the first delivery, start to finish, and write down what the level did. A strap that is checked once a season is a strap that holds; put it on the same calendar as the gutters.
Freight and documents
Ships from: Lincoln, NE. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 7450000C37.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
