1500 Gallon Vertical Liquid Storage Tank

Where it fits

Fifteen hundred gallons is where a household water reserve becomes a real buffer against a dry well or a power cut, and where irrigation, livestock watering and shop supply start to share one tank. This shape gives you that volume on a pad you may already have for a thousand gallon tank. Check the height first. At 116 inches the top of the tank is just under ten feet, which clears most barn and shop ceilings but not a standard eave, and the manway is up there with it, so plan a ladder or a fill line plumbed to the top and fit the float switch or level gauge before the tank goes into service. The 64 inch base needs a flat, level, continuous surface; because it carries 18765 lb at full rating, a concrete pad is the right foundation. A tank this tall should be strapped or anchored where wind is a factor, especially while it is empty. The complete buyers guide to this tank covers siting, the pad and plumbing in detail.

What goes in it

Water, rainwater, liquid fertilizer and the common farm and treatment chemicals that polyethylene handles are the normal loads. Keep the contents below 120 F and below 1.5 times the weight of water. Heavier liquids, which include some concentrated fertilizers and acids, belong in the heavy duty version of this same shell, rated to 1.9 specific gravity; the options above the price list it in blue and in black. If 1500 gallons is a guess rather than a calculation, run the numbers through the tank sizing calculator or the tank sizing guide first.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. Your valve, camlock or hose adapter threads straight into it. Turn the tank so the outlet faces the pipe run before the first fill, and support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top, wide enough to fill from a hose or a pump, to drop a float in and to get a brush inside. The vent lets air out as you fill and in as you draw down; never plug it.

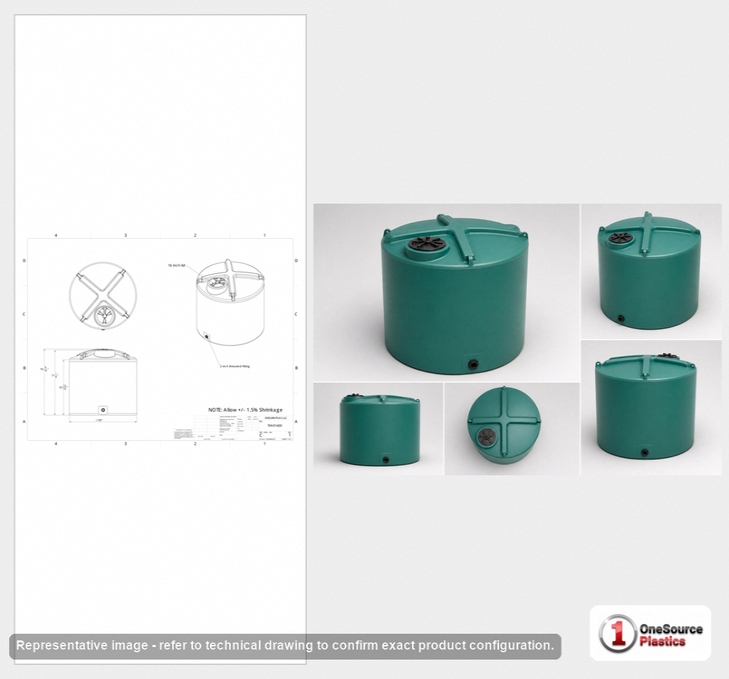

3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height and the manway position for pipe planning.

The same shell in other versions, and sizes nearby

Same shell in black, for water that will stand a long time: the 1500 gallon black vertical tank, 40753; the colour swatches above the price switch between them, and the 41504 is the same shell in natural white from Norwesco's Texas plant. For denser liquids, the 1500 gallon blue heavy duty tank, N-40146 and the 1500 gallon black heavy duty tank, 42018 have a heavier wall. A step down, wide and low, is the 1295 gallon vertical tank, N-44968; a step up is the 1505 gallon black vertical tank, 44259B, narrower and taller again.

Shipping and receiving

The tank ships by LTL freight, lying down on the trailer at 116 by 64 by 64 inches with a ship weight of 295 lb, from the nearest of Norwesco's plants; this tank is built at eight of them, from California to New York, so the lane is usually short. The listed price is before freight; the freight cost estimator gives the cost to your ZIP. Three people, or a loader with a strap, stand it up at delivery. At the tailgate, check the part number against 40144 on the bill of lading, look over the full length of the shell for transit damage before signing, and fill it with water the first time so any problem shows up with something harmless inside.

Questions before you order? Call 866-418-1777.
