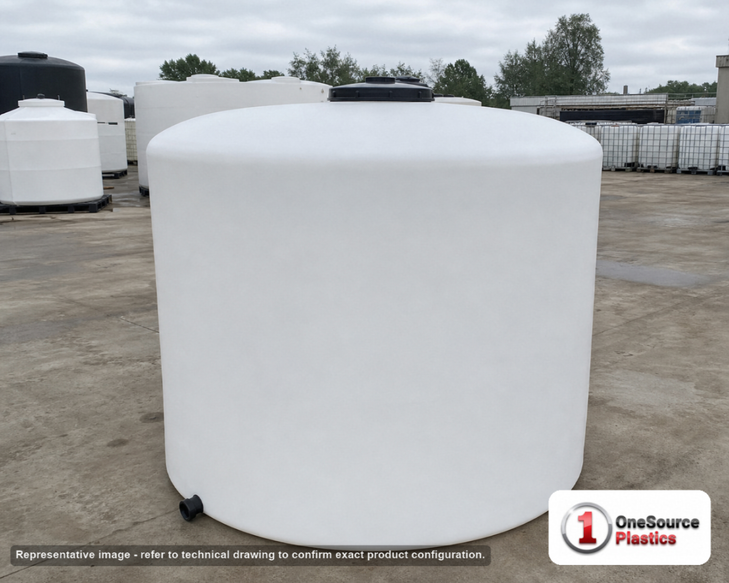

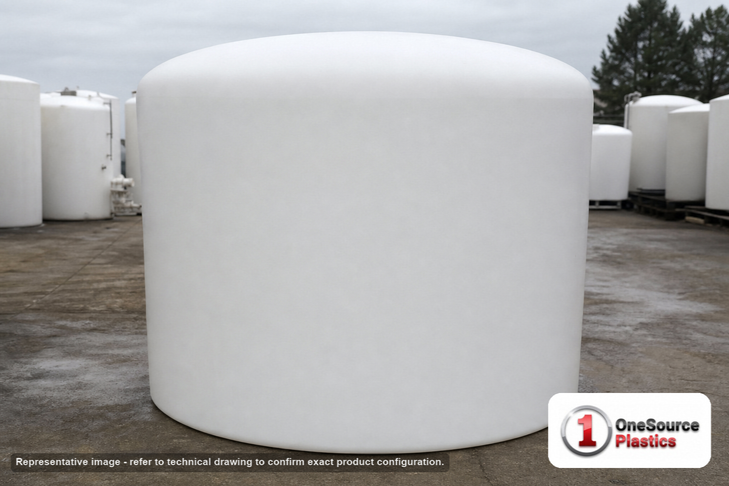

3000 Gallon Plastic Vertical Liquid Storage Tank

Chowchilla, Lincoln and Philippi: three plants, and the lane is the price

Read the plant list first, because on an oversize load it is the biggest number on the invoice. Chowchilla covers California and the west, Lincoln covers the plains and the Midwest, Philippi covers Appalachia and the Atlantic coast, and between the three of them there is hardly a state in the lower forty-eight that is a long haul for this tank. Oversize is what makes that matter: 102 inches across is wider than a trailer carries as ordinary freight, so every one of these moves is permitted and routed, priced mostly in miles, with a stop and a lift arranged around it. Give us the delivery ZIP and the plant is chosen for the short lane rather than for whatever is on the floor. After freight, the site work is ground and wind. A rotationally molded floor bears on the whole surface it touches and nothing else, so the 47538 pounds the sheet allows arrive on a 102 inch circle and are carried by whatever is under that floor, voids and low corners included; engineer the slab to the framework in the concrete pad sizing guide, level, in full contact, poured wider than the tank, with the overflow taken away from the pad edge. At 96 inches the shell is eight feet of tank on an eight and a half foot base, a stable shape that still needs banding while it is empty at 520 pounds, because that is the window in which weather moves tanks. Then prove the volume rather than assuming it: run 3000 gallons against your real draw and the interval between deliveries in the tank sizing calculator, and take the reserve you never dip into and the freeboard a liquid needs as it warms from the tank sizing guide.

The wide 3000 against the tall 90 inch shells

The decision at this capacity is silhouette, and this tank is the wide, low one. Three moldings hold the same 3000 gallons in a 90 inch shell standing 127 inches, better than two and a half feet taller than this tank on a base a foot narrower: 5130000C34 and 5130000C37-BLACK at 575 pounds, both black walls for a liquid daylight spoils, and the crosslinked 5130000N33 at 510 pounds, whose own name carries a rating of 1.35. Those are the buy when the pad is tight and the roof is high. This one is the buy when the ceiling is the limit and the yard is not, and it is the only 3000 here whose sheet lists three plants. Beside it, 8390000C26 keeps the same 102 inch base and holds 2650 gallons at 97 inches, which is the choice when the volume is generous and the budget is not, and SII-32288 stands 3500 gallons at 125 inches on a 96 inch base for a bay with height to spare. Rated 1.9 on its own sheet, this is the dense-liquid wall of the wide 3000s.

Need a different size? Every tank in the table is in stock programs; ask for a quote on the one that fits, or call 866-418-1777.

A lid 96 inches up and a 3 inch bulkhead at the floor

• Access: an 18 inch threaded vented manway 96 inches off the pad. Eight feet is the height where a step stops being enough and a short fixed platform with a rail starts being the honest answer, or a fill coupling brought down to working level so nobody stands on top of a round tank to take a delivery. Eighteen inches of opening is room enough for a light, a stick and an arm, which is what an annual inspection needs.
• Filling: bring the fill down a dip tube to the floor rather than letting a tanker drop eight feet onto the liquid, keep the lid closed between deliveries, and keep the vent clear at all times. A blocked vent with a pump drawing will pull a polyethylene wall inward, and a vent that cannot pass air as fast as a delivery pump pushes liquid will do damage on the way in.
• Inspection: put a light on the band of wall just above the liquid line every time the manway is open. It is where the wall changes first and it cannot be seen from the ground.
• Outlet: a 3 inch polypropylene female NPT bulkhead fitting at the base, as the sheet lists it, which is a generous outlet at this volume and empties the tank inside a working shift. Name the liquid at order so the fitting, the gasket and the bolting are matched to it, make the thread up once, and put a union or a flange a short way downstream so any valve change happens there and never on the tank fitting.
• Limits: the sheet publishes no service temperature and no warranty term for this part number, so nothing is claimed here. Ask us before it goes into a job that requires either in writing.

Eight feet of standing liquid over a 3 inch outlet is real suction head, and the way to keep it is to put the transfer pump below the fitting on its own base with a short, falling, straight run into the suction port. Lift the pump level with the tank and the same installation will lose prime at the tail of every draw. Add a cleanable strainer that does not need the line broken, and a low level float or run-dry cut-out that stops the pump with liquid still over the fitting. The first joint off the bulkhead is flexible so thermal movement and pump starts do not land on the tank, the first valve rides on its own support off the pad, and a kerb or a bollard keeps machinery away from the only fragile part of the vessel. Where it freezes, protect the valve and the exposed pipe and leave the body to ice from the surface down.

Bulk chemical under an eight foot ceiling

An eight foot shell gets specified by the building it has to live in, and that is most of the buyers for this tank: an open sided chemical building at a municipal water or wastewater plant, a machine shed or fertilizer barn on a farm or at a co-op, a bay whose purlins would stop a taller vessel, a covered dock at a processing plant, and an outdoor pad where a site would rather not engineer a tall tank's strapping. The duties are the bulk ones with a steady draw: coagulant, hypochlorite or polymer feed at a plant that takes most of a tanker at a time, an acid or caustic held beside a process line, liquid fertilizer or crop input solutions at a blending yard, wash, flush and clean-in-place chemicals at a food or beverage plant, and a single vessel replacing a growing stack of totes. Water held against fire is a separate design exercise decided by draw rate, connection and freeze protection rather than by gallons standing in a tank, and the fire-water reservoir design guide sets out what it takes to make that claim honestly. For the shape argument at this capacity, the complete buyers guide to the wide white 3000 gallon verticals compares the shells; it is slugged for a shell whose listed height differs from this molding, it carries the figures that shell publishes, and this page asserts none of them.

Class 500 from the nearest of three plants

The SII-7410000C26 ships at class 500 as the sheet lists it, shipping at 102 inches by 102 inches by 96 inches, moving as an oversize load out of Chowchilla, California, Lincoln, Nebraska or Philippi, West Virginia. Eight and a half feet of width is the constraint rather than the 520 pounds: the load is permitted rather than rated, the truck needs a place to stop, the gate needs to be wider than the shipment, and a soft approach will strand a loaded trailer. Tell us the ZIP and the plant is picked for the short lane. The freight cost estimator prices it, and the listed price is before freight. Unload with slings under the body or forks that carry the whole floor, never a hook through the manway, and set it on the cured pad rather than beside it. Water to the manway once, held, with the pad edge and the outlet bulkhead read through the hold, then drained and dried before the real liquid arrives. Keep the delivery paperwork with the plant name on it, because the plant a tank came from is the first question anyone asks about a fitting three years later. Keep the first delivery's paperwork with the tank; strength and date on day one is the baseline for every batch after.
