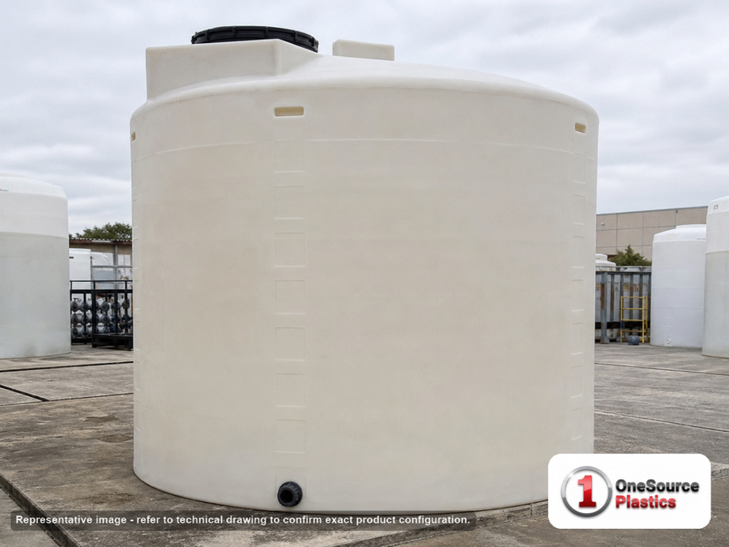

6500 Gallon Vertical Liquid Storage Tank

Where it goes

A 6500 gallon tank is the size where a farm water reserve, an irrigation buffer or a fertilizer supply stops being a chore to refill. On a ten foot circle it fits beside a well house or along a fence line, and at 150 inches tall it needs open sky or a tall shed, not a standard barn bay. The pad has to carry the full floor: 54210 lb of water plus the tank, spread across the whole base, on a level surface that does not stop short of the edge. Full, the tank is heavy enough that a slab or a compacted, contained gravel bed is the right base, never bare ground. Our buyers guide to this shell covers pad, overflow and venting choices, and the guide to the wider natural white 6500 explains when the slightly wider, shorter shell is the better pick. Not sure 6500 is the number? The tank sizing calculator and tank sizing guide settle that, and the guides to the natural white 5000 and the natural white 8400 cover the sizes either side on the same footprint.

Openings and fittings

1. Outlet. A 3 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall, with a 2 inch reducer in it. Connect 2 inch as supplied, or take the reducer out for the full 3 inch port and a faster drain. Match the valve to that decision. Support the valve and the first length of pipe so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top: fill point, vent and inspection opening. At 150 inches up it is a ladder job, so site the tank where a ladder can stand safely.
3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, gives the outlet height and manway position.
4. Liquid. Water and most liquid fertilizers sit inside the 1.5 specific gravity rating. Heavier liquids go in the 1.9 rated versions of this shell listed below; tell us what is going in and we will confirm the fit.

Sizes nearby

Same shell in black, which keeps light and algae out of stored water: the 6500 gallon black vertical tank 40224B. Same shell rated for heavier liquids: the 6500 gallon light blue heavy duty vertical tank 40263 and the 6500 gallon black heavy duty vertical tank 40232B. One size down on the same footprint, shorter: the 6100 gallon black vertical tank 40764. Nearly the same gallons on a narrow, much taller shell: the 6502 gallon black heavy duty vertical tank 47620B. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships as oversize freight (Norwesco's freight class is OVS) from the nearer of Norwesco's Hanford, California and St. Bonifacius, Minnesota plants, 150 by 119 by 119 inches lying down on the truck and 1290 lb. It travels on an open trailer, so plan on a forklift, a loader with forks or a crew with straps, and a clear route from the truck to the pad. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote for a job that needs paperwork. At the tailgate, check the part number against 40224 on the bill of lading, look over the shell for transit damage before you sign, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
