Norwesco 100 Gallon Plastic Portable Loaf Utility Tank in White

Where it goes

Water for livestock in a far pasture, a wash-down or drinking water supply on a job site, spray water for a UTV, and indoor emergency or rainwater storage where the tank has to go through a door are the normal uses. The flat bottom and the 20 inch width are the reasons to pick a loaf over a round tank: it sits flat against a bed rail or a wall and does not roll. Full, it carries 834 lb of water on a 48 by 20 inch footprint, so a half-ton pickup takes one comfortably and a UTV rack needs its rating checked first. Strap it over the body, not through the lid, and keep the straps off the lid threads. Our guide to Norwesco loaf tanks, the agricultural exemption and DOT classification for farm fleets covers how these tanks are treated on the road. For indoor storage, the doorway tank sizing guide helps pick the size, and the concrete pad sizing guide covers a permanent base. If it is part of a rural fire water supply, our fire water reservoir design guide for rural sites is the place to start.

What goes in it

Water is the normal load. The 1.5 rating means a liquid up to 1.5 times the weight of water, 12.52 lb per gallon, which also covers most liquid fertilizers and many common farm chemicals; check anything other than water in our chemical compatibility guide before it goes in. White lets you see the level through the wall and lets light reach the contents, so for long-term water storage keep the tank out of direct sun or expect to clean algae; the black version of this tank is the other answer. Keep the contents under 120 F. For the volume itself, use the tank sizing calculator and tank sizing guide.

Openings and fittings

1. Lid. An 8 inch threaded vented lid on top, wide enough to fill from a hose, drop a pump intake in, and get a hand and a brush inside to clean.
2. Outlet. None from the factory. Add a bulkhead fitting low on an end wall where the pipe will run; a bulkhead needs a flat area of wall at least as wide as its flange so the gasket seals all the way round. Dry-fit it before tightening, and tighten by hand plus a quarter turn.
3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the flat areas on the walls and the overall profile for strap and bracket planning.

Sizes nearby

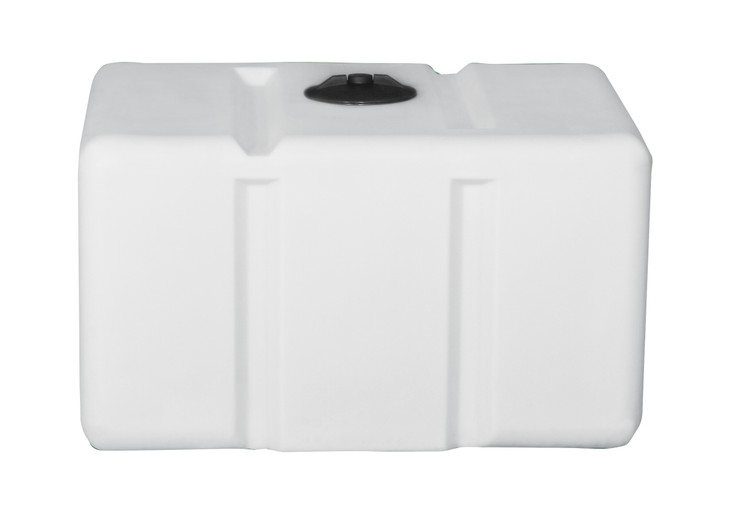

Same capacity in a different loaf profile: the 100 gallon loaf tank, part number 43611, and the same tank in black, the 100 gallon black loaf tank. One size down: the 50 gallon loaf tank. One size up: the 200 gallon black loaf tank. Check the length and width on each page against the bed or doorway it has to fit.

Shipping and receiving

The tank ships LTL from the nearest of Norwesco's plants in Albertville, Alabama, Hanford, California, Lancaster, Ohio, and Sheldon, Iowa, 48 by 20 by 32 inches on a pallet with a shipping weight of 91 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and a written quote is available if you need one. At the tailgate, check the part number against 44963 on the bill of lading, look over the flat bottom and the lid threads for transit damage, and fill the tank with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
