A 125 gallon black leg tank for a compact pickup, a UTV trailer or a skid sprayer
The Norwesco 125 gallon black horizontal leg tank, part number 40955, is a polyethylene transport and storage tank 41 inches long, 32 inches wide and 35 inches tall, weighing 47 lb empty. The moulded legs let it sit flat in a truck bed, on a small trailer or on a skid without a cradle. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet and an 8 inch threaded vented lid on top. Norwesco rates it for liquids up to 1.5 specific gravity and to 120 F, states the resin is FDA compliant, lists it as NSF 61, and backs it with a 3 year warranty. One hundred twenty-five gallons of water weighs about 1040 lb. Black keeps light out of the contents.
Will it fit the bed? Call 866-418-1777 with the truck or trailer, or price freight to your ZIP and add it to your cart above.
The jobs a 125 gallon leg tank gets
This is the size that fits where the next size up will not: a compact or mid-size pickup bed, the back of a UTV trailer, or a skid sprayer that has to go through a gate. At 41 by 32 inches it leaves room for a pump and a reel beside it, and at about 1040 lb full it stays inside the payload of a mid-size truck. It is the usual tank for spot spraying pasture and fence lines, watering new trees, running a pressure washer away from a tap, or carrying water to stock on a short loop. Strap through the moulded leg recesses, never over the lid, and use Norwesco's support bands where the tank rides on a vehicle. Our guide to Norwesco applicator and leg tanks for fertilizer and the DOT non-roadable trailer rules covers how these tanks are classified on the road, and the farm fleet DOT classification guide covers the agricultural exemption. For the volume itself, use the tank sizing calculator and tank sizing guide.
What goes in it
Water, liquid fertilizer, herbicide mixes and the farm and shop chemicals polyethylene handles, up to 1.5 times the weight of water and 120 F. Check the liquid in our chemical compatibility guide before the first fill; the entries small leg tank buyers ask about most are urea solution, DEF, calcium chloride, sodium hypochlorite and propylene glycol. If you blend in it, our note on fertilizer blend stratification and how to catch it in the field applies at this size too.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the end wall. A 2 inch valve, camlock or reducer to your pump threads straight in; support the valve and the first length of hose so the fitting is not carrying hardware over rough ground.
- Lid. An 8 inch threaded vented lid on top: enough to fill from a hose and to drop a strainer in, vented so the tank breathes as the pump draws.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet position and the leg layout for strap planning.
Sizes nearby
Same tank in white, for seeing the level through the wall: the 125 gallon white horizontal leg tank. One size down: the 65 gallon black leg tank. One size up: the 150 gallon horizontal leg tank. The colour swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships at freight class 300 from the nearest of Norwesco's plants, 41 by 32 by 35 inches at 47 lb; one person takes it off the truck. The listed price is before freight; the freight cost estimator gives the cost to your ZIP, or request a written quote. Check 40955 against the bill of lading, look at the legs and the bulkhead fitting for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA; Griffin, GA; Sheldon, IA; St. Bonifacius, MN; Owego, NY; Washington Court House, OH; Shawnee, OK; Fairfield, TX; Tooele, UT; Washougal, WA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40955.

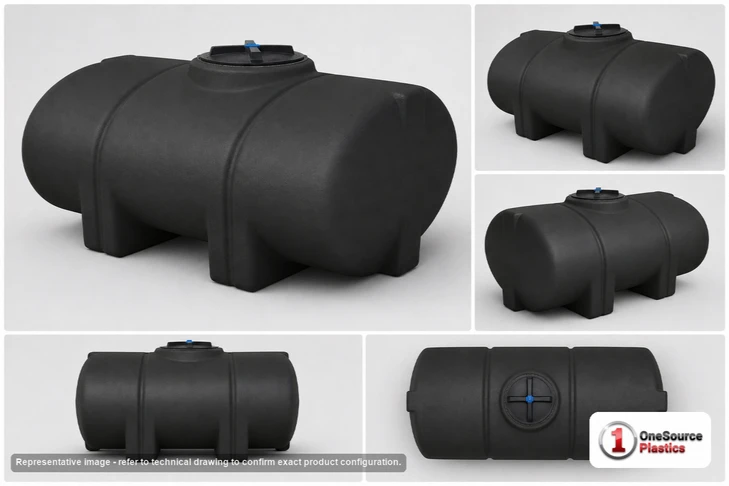

See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
