A 125 gallon white leg tank for a pickup, a UTV or a small sprayer

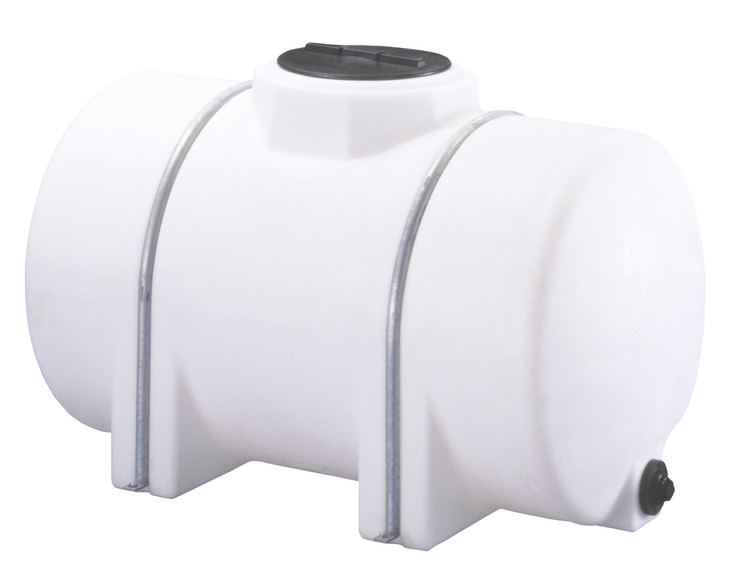

The Norwesco 125 gallon horizontal leg tank in white, part number 40298, is a round polyethylene tank 32 inches in diameter and 41 inches long, standing 35 inches tall on its moulded legs, and weighing 47 lb empty. It is the size one person can lift into a pickup bed or onto a UTV rack, fill at the yard, and run out through a small pump or a gravity hose at the far end of the property. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet and an 8 inch threaded vented lid on top. The tank is rated for liquids up to 1.5 specific gravity, which Norwesco states as a maximum of 12.52 lb per gallon; 125 gallons of water weighs about 1040 lb. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs the tank with a 3 year warranty. White lets you see the liquid level through the wall.
Is this the right size? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the truck or trailer it is going on.
In a pickup, on a UTV or on a small trailer
At 41 inches long and 32 inches wide the tank sits across a pickup bed between the wheel wells or along a UTV cargo bed, and at 35 inches tall it rides above the bed rail, so plan on the tailgate and a tonneau staying open. Full of water it is close to 1040 lb, which a half ton truck carries and most UTVs do not; check the vehicle's payload against the full weight, not the empty one. Norwesco offers 2 bands for this tank, band part N-61744, as an option for vehicle use; the add-ons box on this page lists them. Strap through the leg recesses, never over the lid. On the ground the legs need a flat, continuous surface under every one. Our guide to Norwesco applicator and leg tanks and the DOT non-roadable trailer rules covers how these tanks are classified on the road, and the farm fleet DOT classification guide covers the agricultural exemption.
What goes in it
Water for stock or a garden, spray mix, liquid fertilizer and the common farm chemicals that polyethylene handles are the normal loads. Check the liquid in our chemical compatibility guide before the first fill; the entries for urea solution, DEF, calcium chloride and sodium hypochlorite are the ones small leg tank buyers ask about most. Liquids heavier than 1.5 times water are outside this tank's rating. If you blend fertilizer in it, our note on fertilizer blend stratification applies at this size too. For the volume, use the tank sizing calculator and the tank sizing guide.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed. That is a large outlet for a tank this size, so it drains fast by gravity; a 2 inch ball valve, camlock or reducing bushing threads straight into it. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
- Lid. An 8 inch threaded vented lid on top, wide enough for a fill hose or a small pump pickup. The vent lets the tank breathe as it fills and drains; never plug it.
- Bands. 2 bands optional, part N-61744, for use on a vehicle.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet and lid positions and the leg layout.
Sizes nearby
Same tank in black, for liquids you want to keep light away from: the 125 gallon black leg tank. One size down: the 65 gallon black leg tank. One size up: the 150 gallon leg tank.
Shipping and receiving
The tank ships LTL, NMFC 156600-03, from the nearest of Norwesco's plants, which for this part include Fairfield and Petersburg, Texas; Griffin, Georgia; Hanford, California; Lancaster, Ohio; Owego, New York; Shawnee, Oklahoma; Sheldon, Iowa; St. Bonifacius, Minnesota; Tooele, Utah; and Washougal, Washington. The tank itself is 47 lb; palletised for freight it is 41 by 40 by 35 inches and 92 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and a written quote is available for a job that needs paperwork. At the tailgate, check the part number 40298 against the bill of lading, look at the legs for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA; Griffin, GA; Sheldon, IA; St. Bonifacius, MN; Owego, NY; Lancaster, OH; Shawnee, OK; Fairfield, TX; Petersburg, TX; Tooele, UT; Washougal, WA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40298.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Norwesco 125 Gallon Horizontal Leg Tank in White video (69 seconds) with dimensions, fittings and shipping notes.
